Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP105-220KSMD POWER INDUCTOR CODACA |
200 |
|
Таблицы данных |
SP105 | Nonstandard | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.6 A | 3.2A | Unshielded | 46.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | - | 0.409" L x 0.402" W (10.40mm x 10.20mm) | 0.189" (4.80mm) |
|
|
CSAB0420-1R0MFIX IND 1UH 6.2A 27.0 MOHM SMD CODACA |
200 |
|
Таблицы данных |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 6.2 A | 9A | Shielded | 27mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
CSAB0420-1R5MFIX IND 1.5UH 4.5A 46.0 MOHM SM CODACA |
200 |
|
Таблицы данных |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 4.5 A | 6A | Shielded | 46mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
CSAB0420-R56MFIX IND 0.56UH 7.9A 16.0 MOHM SM CODACA |
200 |
|
Таблицы данных |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 560 nH | ±20% | 7.9 A | 10A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
CSAB0420-6R8MFIX IND 6.8UH 2.05A 228 MOHM SMD CODACA |
200 |
|
Таблицы данных |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 2.05 A | 3A | Shielded | 228mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
CSAB0420-R47MFIX IND 0.47UH 8A 15.5 MOHM SMD CODACA |
200 |
|
Таблицы данных |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 470 nH | ±20% | 8 A | 11A | Shielded | 15.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
CSAB0420-1R2MFIX IND 1.2UH 6.2A 27.0 MOHM SM CODACA |
200 |
|
Таблицы данных |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.2 µH | ±20% | 6.2 A | 7A | Shielded | 27mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
CSAB0420-4R7MFIX IND 4.7UH 2.8A 115 MOHM SMD CODACA |
192 |
|
Таблицы данных |
CSAB0420 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 2.8 A | 3.3A | Shielded | 115mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
CSAB0730-6R8MSMD MOLDING POWER CHOKE CODACA |
1,200 |
|
Таблицы данных |
CSAB0730 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 4.9 A | 6A | Shielded | 48mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
|

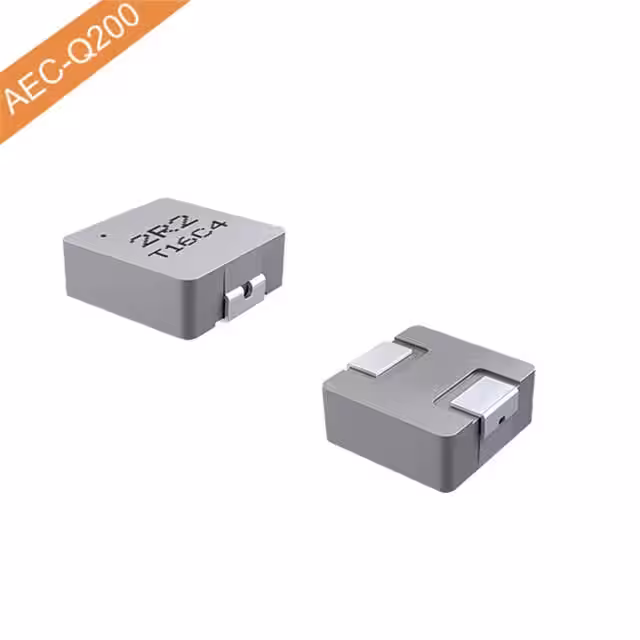

CSAB0730-2R2MSMD MOLDING POWER CHOKE CODACA |
996 |
|
Таблицы данных |
CSAB0730 | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 9.1 A | 11.5A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
