Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

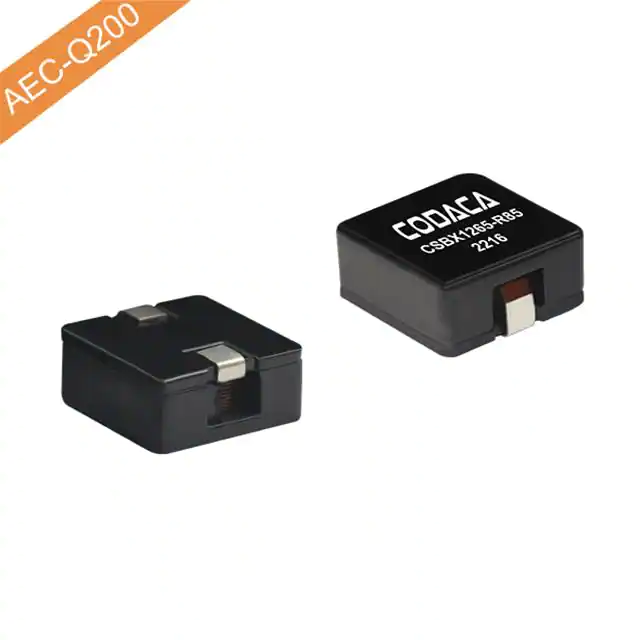

CSBX1265-4R7MSMD HIGH CURRENT POWER INDUCTOR CODACA |
400 |
|
Таблицы данных |
CSBX1265 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 14 A | 27A | Shielded | 6.25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
|
CSBX1265-5R8MSMD HIGH CURRENT POWER INDUCTOR CODACA |
387 |
|
Таблицы данных |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 5.8 µH | ±20% | 12 A | 24A | Shielded | 7.97mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
CSBX1235-4R7MSMD HIGH CURRENT POWER INDUCTOR CODACA |
385 |
|
Таблицы данных |
CSBX1235 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 9 A | 15.2A | Shielded | 13.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.126" (3.20mm) |
|
|
CSBX1265-2R0MSMD HIGH CURRENT POWER INDUCTOR CODACA |
353 |
|
Таблицы данных |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 2 µH | ±20% | 23 A | 41A | Shielded | 2.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
|
CSBX1265-330MSMD HIGH CURRENT POWER INDUCTOR CODACA |
314 |
|
Таблицы данных |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 33 µH | ±20% | 5.5 A | 8.8A | Shielded | 30.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
|
CSBX1265-9R2MSMD HIGH CURRENT POWER INDUCTOR CODACA |
297 |
|
Таблицы данных |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 9.2 µH | ±20% | 12 A | 16.3A | Shielded | 8.35mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
|
CSBX1265-2R7MSMD HIGH CURRENT POWER INDUCTOR CODACA |
292 |
|
Таблицы данных |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 2.7 µH | ±20% | 20 A | 35A | Shielded | 3.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
|
CSBX1265-180MSMD HIGH CURRENT POWER INDUCTOR CODACA |
291 |
|
Таблицы данных |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 18 µH | ±20% | 8.5 A | 11.2A | Shielded | 17.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|
|
VSEB0530H-R56MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
Таблицы данных |
VSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.56 µH | ±20% | 16 A | 14A | Shielded | 4.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | - | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.118" (3.00mm) |
|
|
VSEB0530H-1R0MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
Таблицы данных |
VSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 12 A | 14.3A | Shielded | 8.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.118" (3.00mm) |
