Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTS4F-182K1800UH XIALSHIELDED INDUCTOR Central Technologies |
20 |
|
Таблицы данных |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 1.8 mH | ±10% | 111 mA | 30mA | Shielded | 19Ohm Max | 70 @ 250kHz | 2.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-221J220UH XIALSHIELDED INDUCTOR Central Technologies |
12 |
|
Таблицы данных |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 220 µH | ±5% | 251 mA | 80mA | Shielded | 3.5Ohm Max | 65 @ 790kHz | 9.4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-332K3300UH XIALSHIELDED INDUCTOR Central Technologies |
8 |
|
Таблицы данных |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 3.3 mH | ±10% | 85 mA | 22mA | Shielded | 33Ohm Max | 70 @ 250kHz | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-560J56UH XIALSHIELDED INDUCTOR Central Technologies |
5 |
|
Таблицы данных |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 56 µH | ±5% | 380 mA | 160mA | Shielded | 1.6Ohm Max | 55 @ 2.5MHz | 25MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
CTSPT30LF-353M35UH SMT STD TOROIDAL INDUCTOR Central Technologies |
5 |
|
- |
CTSPT-L | Nonstandard | Bulk | Active | Toroidal | - | 35 µH | ±20% | 1.4 A | - | Unshielded | 166mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.378" (9.60mm) |
|
|
CTSPT30LF-123M12UH SMT STD TOROIDAL INDUCTOR Central Technologies |
5 |
|
- |
CTSPT-L | Nonstandard | Bulk | Active | Toroidal | - | 12 µH | ±20% | 2.8 A | - | Unshielded | 46mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.378" (9.60mm) |
|
|
CTS4F-152K1500UH XIALSHIELDED INDUCTOR Central Technologies |
3 |
|
Таблицы данных |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 1.5 mH | ±10% | 119 mA | 33mA | Shielded | 17Ohm Max | 70 @ 250kHz | 2.5MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTSPT20LF-112M1.1UH SMT STD TOROIDAL INDUCTOR Central Technologies |
2 |
|
- |
CTSPT-L | Nonstandard | Bulk | Active | Toroidal | - | 1.1 µH | ±20% | 3.4 A | - | Unshielded | 11mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|

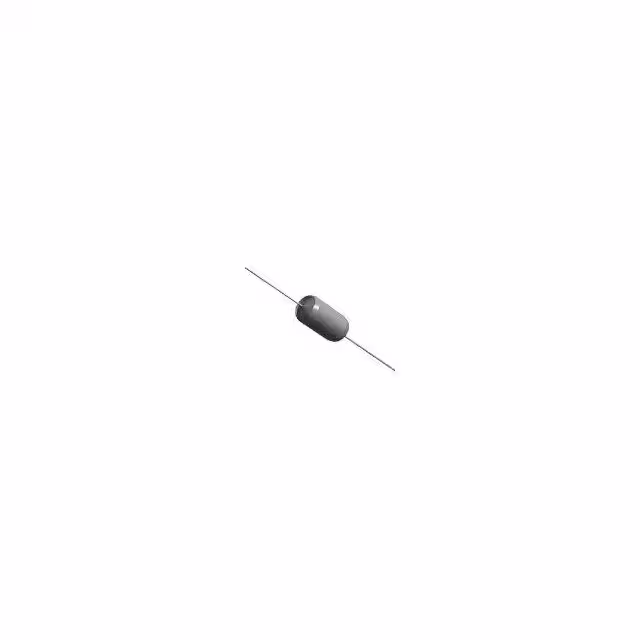

CTS5F-250J25UH AXL MOLDED SHLD INDUCTOR Central Technologies |
2 |
|
Таблицы данных |
CTS5F | Axial | Bulk | Active | Molded | - | 25 µH | ±5% | 560 mA | - | Shielded | 800mOhm Max | 55 @ 2.5MHz | 35MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.150" Dia x 0.449" L (3.81mm x 11.40mm) | - |
|

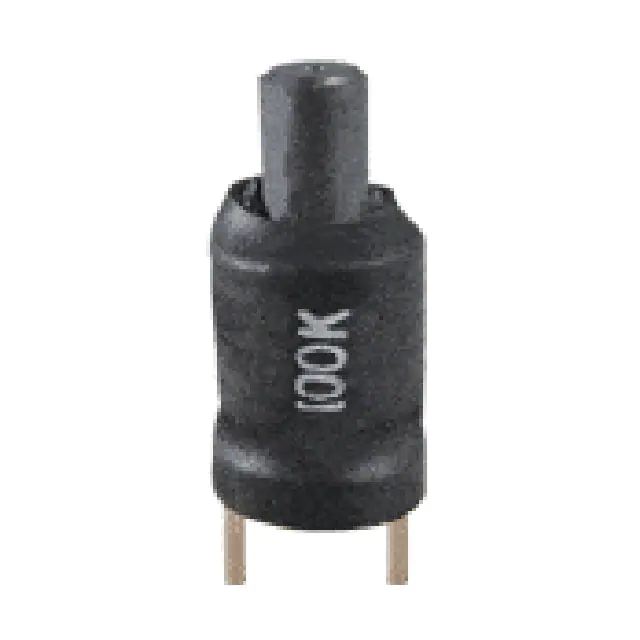

CTVF-1-100K-1010UH RADIAL POWER INDUCTOR Central Technologies |
7 |
|
- |
CTVF-0 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±10% | - | 10.9A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 15.75 kHz | - | Through Hole | Radial | 0.630" Dia (16.00mm) | 1.098" (27.90mm) |
