Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

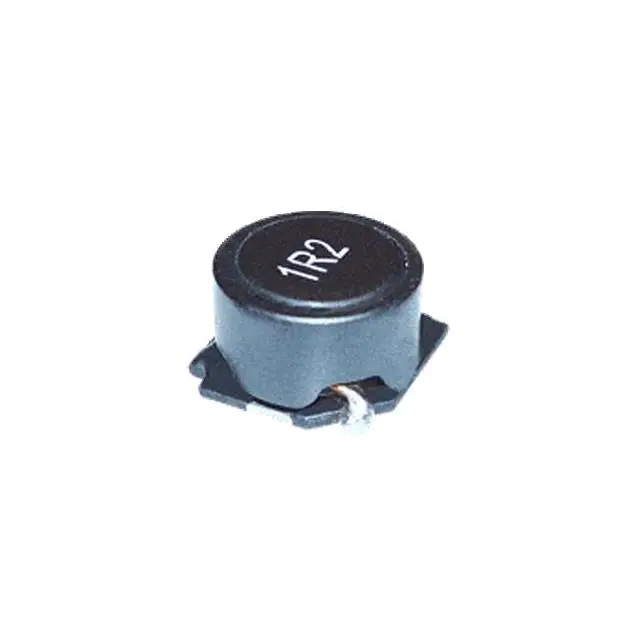

CTSLF1275TF-680MSMD SHIELDED POWER INDUCTOR Central Technologies |
5 |
|
- |
CTSLF1275TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 2 A | 2.4A | Shielded | 77.8mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|

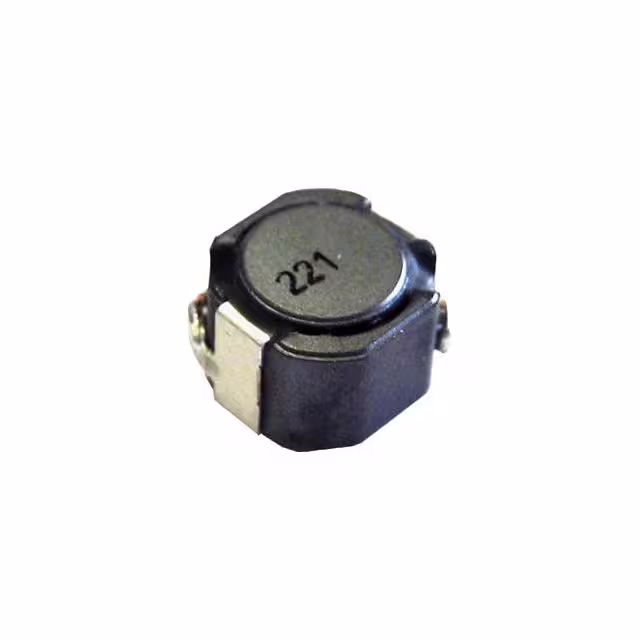

CTPCI6045F-471MSMD SHLDED POWER INDUCTOR Central Technologies |
5 |
|
Таблицы данных |
CTPCI6045F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 410 mA | 250mA | Shielded | 1.56Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.193" (4.90mm) |
|

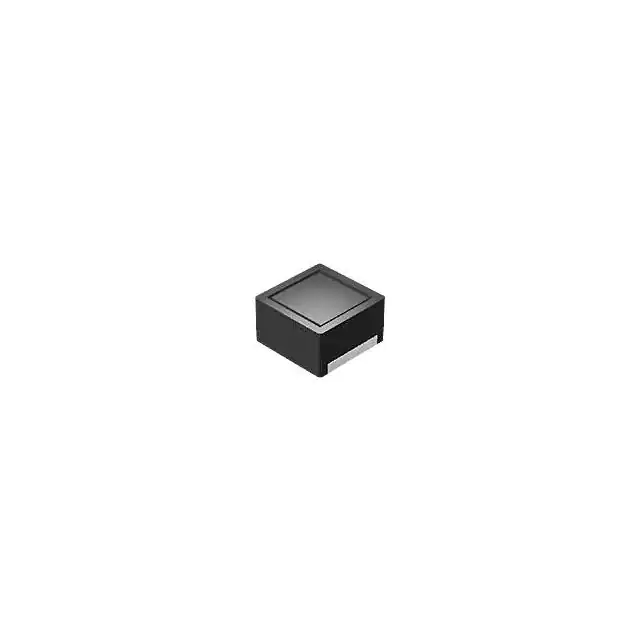

CTLQH3KSF-152MSMD SHLDED POWER INDUCTOR Central Technologies |
5 |
|
Таблицы данных |
CTLQH3KSF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 mH | ±20% | 25 mA | - | Shielded | 22Ohm Max | - | 1.7MHz | - | -25°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.142" L x 0.138" W (3.60mm x 3.50mm) | 0.091" (2.30mm) |
|

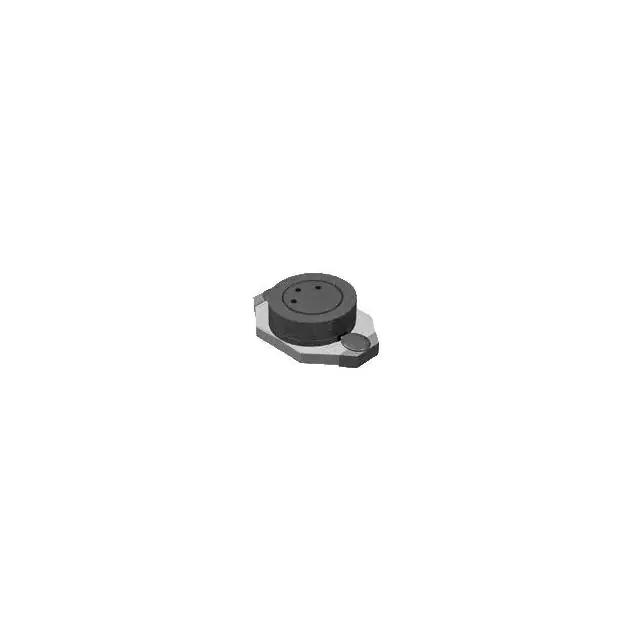

CTDS1608CF-1051000UH SMD SHIELD POWER INDUCTOR Central Technologies |
10 |
|
Таблицы данных |
CTDS1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 150 mA | - | Shielded | 3.4Ohm Max | 40 @ 100kHz | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
CTDO5022PF-103HC10UH SMD HI-CUR POWER INDUCTOR Central Technologies |
25 |
|
Таблицы данных |
CTDO5022HCF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 10 A | - | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
CTDO5022PF-152HC1.5UH SMD HI-CUR POWER INDUCTOR Central Technologies |
5 |
|
Таблицы данных |
CTDO5022HCF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 25 A | - | Unshielded | 4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|

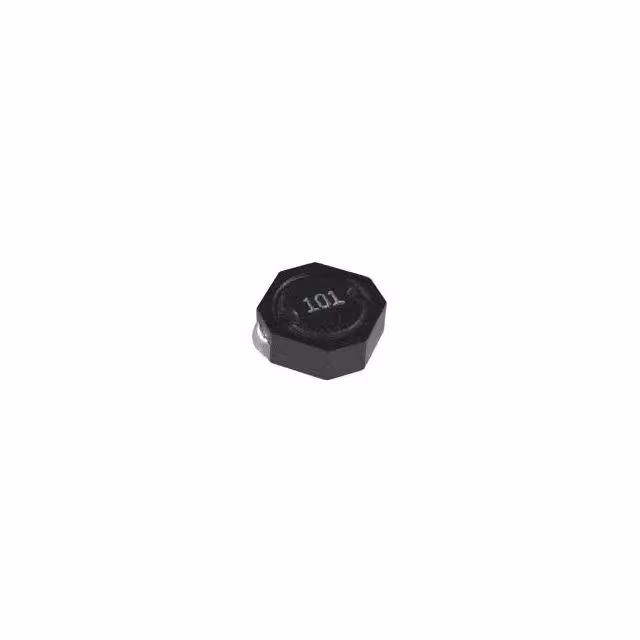

CT914BYF-220MSMD SHIELDED POWER INDUCTOR Central Technologies |
5 |
|
- |
ct914byf | - | Bulk | Obsolete | - | - | 22 µH | ±20% | - | - | - | 275mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT914BYF-6R8MSMD SHIELDED POWER INDUCTOR Central Technologies |
5 |
|
- |
ct914byf | - | Bulk | Obsolete | - | - | 6.8 µH | ±20% | - | - | - | 105mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

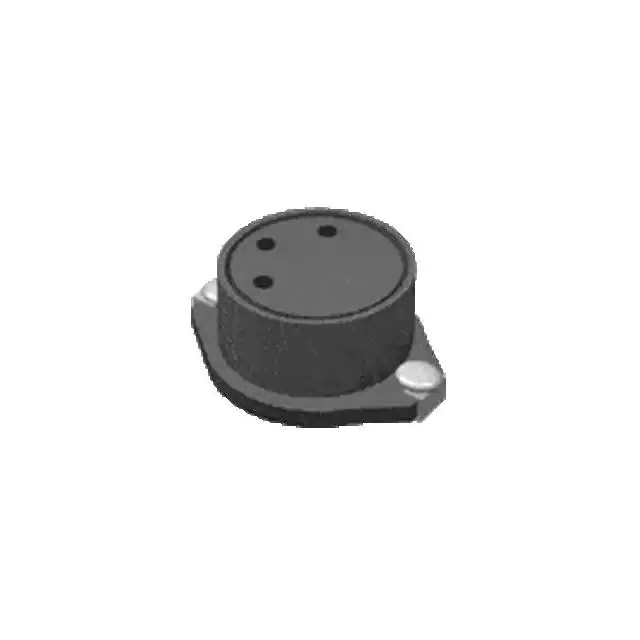

CTDS5022PF-22322UH SMD SHIELDED POWR INDUCTOR Central Technologies |
20 |
|
Таблицы данных |
CTDS5022F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.1 A | 6A | Shielded | 60mOhm Max | 40 @ 100kHz | 14MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
|
CTDS5022PF-1051000UH SMD SHIELDED PWR INDUCTOR Central Technologies |
15 |
|
Таблицы данных |
CTDS5022F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 530 mA | 800mA | Shielded | 2Ohm Max | 60 @ 100kHz | 1MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
