Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTM1F-820K82UH AXIAL MOLDED INDUCTOR Central Technologies |
192 |
|
Таблицы данных |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±10% | 88 mA | - | Unshielded | 7.3Ohm Max | 50 @ 2.5MHz | 14MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-R39K.39UH AXIAL MOLDED INDUCTOR Central Technologies |
184 |
|
Таблицы данных |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 390 nH | ±10% | 700 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 365MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-181K180UH AXIAL MOLDED INDUCTOR Central Technologies |
147 |
|
Таблицы данных |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±10% | 57 mA | - | Unshielded | 17Ohm Max | 30 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

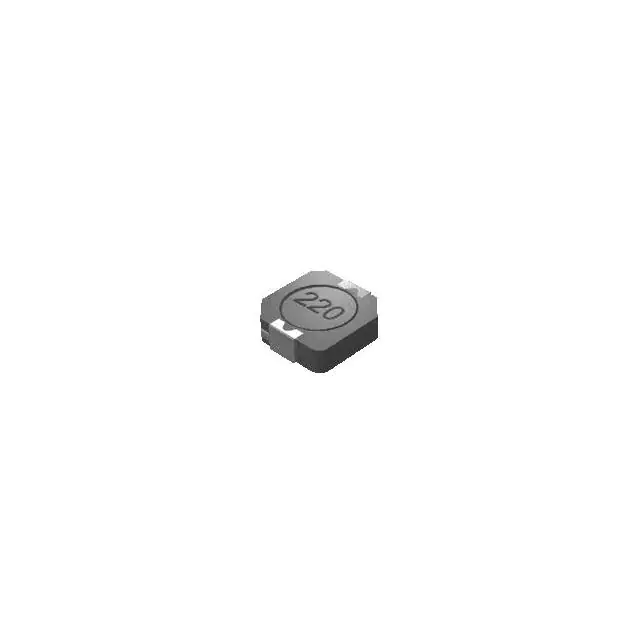

CTCDRH104RF-3R83.8 SMD SHIELDED POWER INDUCTOR Central Technologies |
1,580 |
|
Таблицы данных |
CTCDRH104RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.8 µH | ±30% | - | 6A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CTCDRH104RF-15015 SMD SHIELDED POWER INDUCTOR Central Technologies |
1,160 |
|
Таблицы данных |
CTCDRH104RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±30% | - | 3.6A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CTCDRH104RF-5R25.2 SMD SHIELDED POWER INDUCTOR Central Technologies |
1,008 |
|
Таблицы данных |
CTCDRH104RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.2 µH | ±30% | - | 5.7A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CTCDRH104RF-10010 SMD SHIELDED POWER INDUCTOR Central Technologies |
781 |
|
Таблицы данных |
CTCDRH104RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | - | 4.4A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
CTAF05TJSMD AIR CORE INDUCTOR Central Technologies |
330 |
|
Таблицы данных |
ctaf | - | Tape & Reel (TR) | Active | Wirewound | - | 18.5 nH | ±5% | - | - | - | 3.9mOhm | - | 2.5GHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

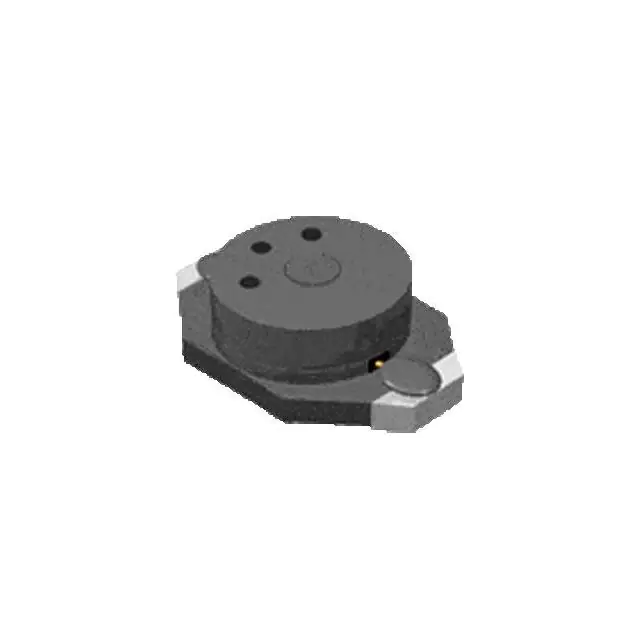

CTDT1608CF-22322UH SMD SHIELDED POWR INDUCTOR Central Technologies |
4,347 |
|
Таблицы данных |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 500 mA | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDT1608CF-10310UH SMD SHIELDED POWR INDUCTOR Central Technologies |
2,248 |
|
Таблицы данных |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 700 mA | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
