Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

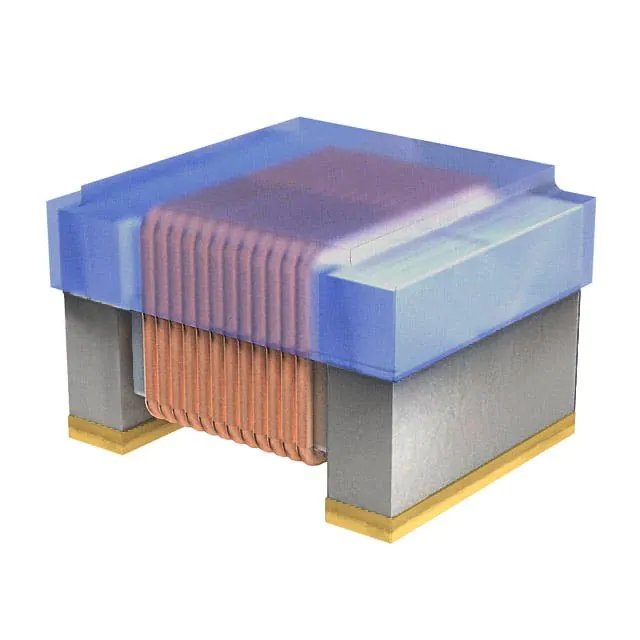

WB0603T1N8SJWW IND 0603 1.8NH 5% Cal-Chip Electronics, Inc. |
32,000 |
|
Таблицы данных |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.8 nH | ±5% | 700 mA | - | Unshielded | 45mOhm Max | 16 @ 250MHz | 12.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WB0603TR22SJWW IND 0603 220NH 5% Cal-Chip Electronics, Inc. |
20,000 |
|
Таблицы данных |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 200 mA | - | Unshielded | 1.9Ohm Max | 25 @ 100MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WB0603T5N6SJWW IND 0603 5.6NH 5% Cal-Chip Electronics, Inc. |
20,000 |
|
Таблицы данных |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 700 mA | - | Unshielded | 150mOhm Max | 15 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WB0603T75NSJWW IND 0603 75NH 5% Cal-Chip Electronics, Inc. |
12,000 |
|
Таблицы данных |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 75 nH | ±5% | 400 mA | - | Unshielded | 520mOhm Max | 34 @ 150MHz | 1.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WB0603T7N5SGWW IND 0603 7.5NH 2% Cal-Chip Electronics, Inc. |
80,000 |
|
Таблицы данных |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±2% | 700 mA | - | Unshielded | 106mOhm Max | 28 @ 250MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WB0603T6N8SGWW IND 0603 6.8NH 2% Cal-Chip Electronics, Inc. |
60,000 |
|
Таблицы данных |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±2% | 700 mA | - | Unshielded | 110mOhm Max | 27 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WB0603T39NSGWW IND 0603 39NH 2% Cal-Chip Electronics, Inc. |
32,000 |
|
Таблицы данных |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | 600 mA | - | Unshielded | 250mOhm Max | 40 @ 250MHz | 2.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WB0603T8N2SGWW IND 0603 8.2NH 2% Cal-Chip Electronics, Inc. |
28,000 |
|
Таблицы данных |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±2% | 700 mA | - | Unshielded | 120mOhm Max | 25 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WB0603T20NSGWW IND 0603 20NH 2% Cal-Chip Electronics, Inc. |
24,000 |
|
Таблицы данных |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 20 nH | ±2% | 700 mA | - | Unshielded | 190mOhm Max | 40 @ 250MHz | 3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WB0603T47NSGWW IND 0603 47NH 2% Cal-Chip Electronics, Inc. |
12,000 |
|
Таблицы данных |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 600 mA | - | Unshielded | 280mOhm Max | 38 @ 200MHz | 2GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
