Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

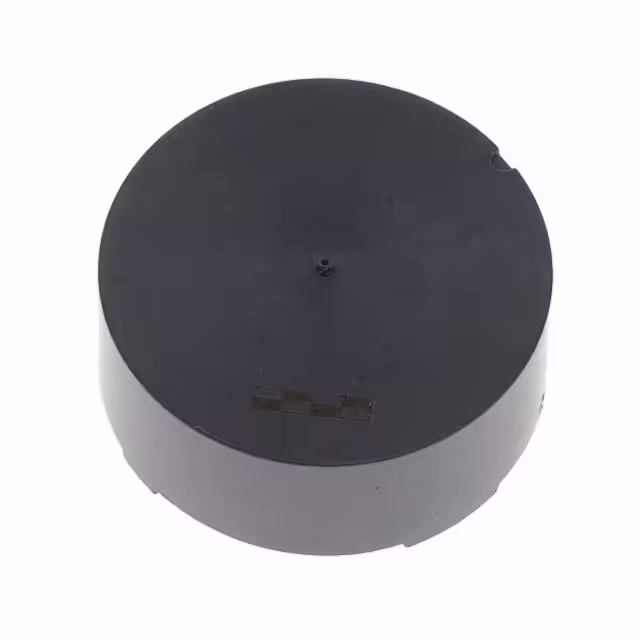

IHTH1125MZEB101M5AFIXED IND 100UH 9.2A 32.2MOHM TH Vishay Dale |
0 |
|
Таблицы данных |
IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tray | Active | - | - | 100 µH | ±20% | 9.2 A | 11A | Shielded | 32.2mOhm Max | - | 2.04MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
IHTH1125MZEB1R0M5AFIXED IND 1UH 86A 0.48 MOHM TH Vishay Dale |
0 |
|
Таблицы данных |
IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tray | Active | - | - | 1 µH | ±20% | 86 A | 69A | Shielded | 0.48mOhm Max | - | 29.3MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
|
IHTH1125MZEB2R2M5AFIXED IND 2.2UH 71.5A 0.77 MOHM Vishay Dale |
0 |
|
Таблицы данных |
IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tray | Active | - | - | 2.2 µH | ±20% | 71.5 A | 64A | Shielded | 0.77mOhm Max | - | 17.25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
|
IHB3EB5R6MFIXED IND 5.6UH 20.3A 3 MOHM TH Vishay Dale |
0 |
|
Таблицы данных |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 5.6 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3EB8R2MFIXED IND 8.2UH 17.6A 4 MOHM TH Vishay Dale |
0 |
|
Таблицы данных |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 8.2 µH | ±20% | 17.6 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHTH1125MZEBR47M5AFIXED IND 470NH 105MA 0.3MOHM TH Vishay Dale |
0 |
|
Таблицы данных |
IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tube | Active | - | - | 470 nH | ±20% | 105 mA | 80mA | Shielded | 0.3mOhm Max | - | 57.25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
|
IHB3BV1R0MFIXED IND 1UH 20.3A 3 MOHM TH Vishay Dale |
0 |
|
Таблицы данных |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 1 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV3R3MFIXED IND 3.3UH 20.3A 3 MOHM TH Vishay Dale |
0 |
|
Таблицы данных |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 3.3 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV4R7MFIXED IND 4.7UH 20.3A 3 MOHM TH Vishay Dale |
0 |
|
Таблицы данных |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 4.7 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV5R6MFIXED IND 5.6UH 20.3A 3 MOHM TH Vishay Dale |
0 |
|
Таблицы данных |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 5.6 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
