Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IH10EB101KFIXED IND 100UH 10A 30 MOHM TH Vishay Dale |
121 |
|
Таблицы данных |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 10 A | 7A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.935" Dia x 1.625" L (23.75mm x 41.28mm) | - |
|
IHDM1107BBEV8R2M30FG, IHDM-1107BB-30 8.2 20% Vishay Dale |
268 |
|
Таблицы данных |
IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 39 A | 73A | Unshielded | 1.73mOhm Max | - | 22MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
IHLP8787MZER100M51FIXED IND 10UH 28A 4.14 MOHM SMD Vishay Dale |
120 |
|
Таблицы данных |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 28 A | 28A | Shielded | 4.14mOhm Max | - | 6.04MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|

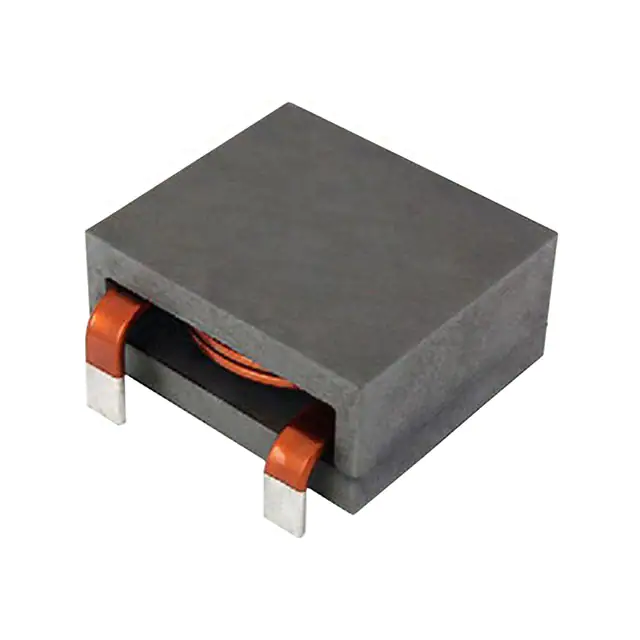

IHDF1300AEEH1R0K1AFIXED IND 1UH 72A 0.79 MOHM TH Vishay Dale |
127 |
|
Таблицы данных |
IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 72 A | 230A | Unshielded | 0.79mOhm Max | - | 39MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|
|
IHLP8787MZER4R7M5AFIXED IND 4.7UH 47A 1.84MOHM SMD Vishay Dale |
200 |
|
Таблицы данных |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 47 A | 37A | Shielded | 1.84mOhm Max | - | 10.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHDM1107BBEV4R3M20FG, IHDM-1107BB-20 4.3 20% Vishay Dale |
277 |
|
Таблицы данных |
IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 4.3 µH | ±20% | 48 A | 164A | Unshielded | 1.3mOhm Max | - | 33MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEVR68M30FG, IHDM-1107BB-30 .68 20% Vishay Dale |
182 |
|
Таблицы данных |
IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 125 A | 248A | Unshielded | 0.3mOhm Max | - | 181MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEV1R5M30FG, IHDM-1107BB-30 1.5 20% Vishay Dale |
352 |
|
Таблицы данных |
IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 91 A | 165A | Unshielded | 0.41mOhm Max | - | 80MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEV5R6M20FG, IHDM-1107BB-20 5.6 20% Vishay Dale |
184 |
|
Таблицы данных |
IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 5.6 µH | ±20% | 37 A | 142A | Unshielded | 1.73mOhm Max | - | 30MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|

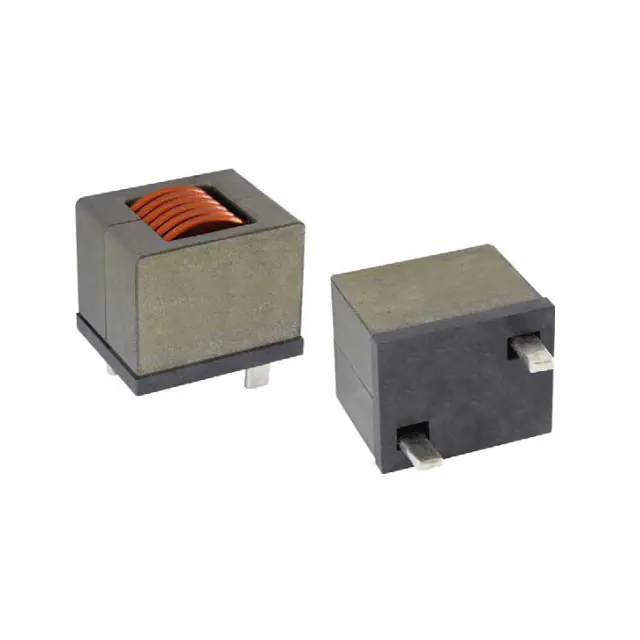

IHDM1008BCEV1R2M3AFIXED IND 1.2UH 80A 0.3 MOHM TH Vishay Dale |
265 |
|
Таблицы данных |
IHDM-1008BC-3A | Nonstandard | Tray | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 80 A | 150A | Unshielded | 0.3mOhm Max | - | 90MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
