Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

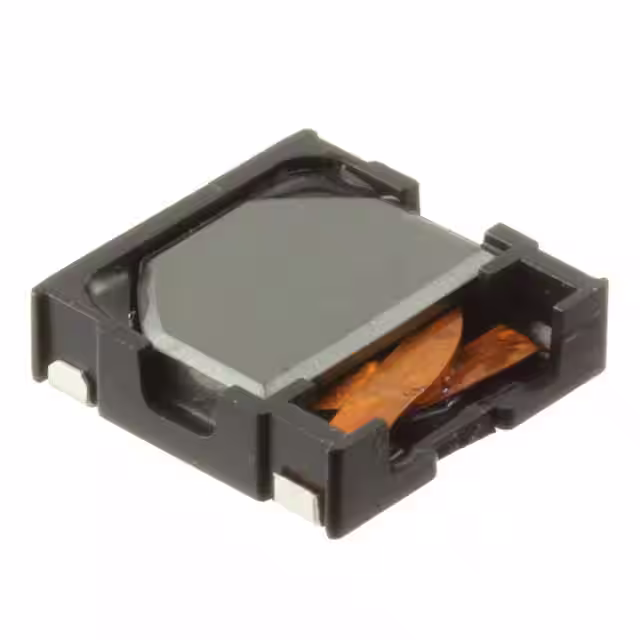

CEP123NP-6R3MCFIXED IND 6.3UH 4.6A 20.26 MOHM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CEP123 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.3 µH | ±20% | 4.6 A | - | Shielded | 20.26mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.138" (3.50mm) |
|
CEPH209NP-1336-T060FIXED INDUCTOR SMD Sumida America Components Inc. |
0 |
|
- |
CEPH209 | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | Unshielded | - | - | - | - | - | - | - | - | - | - | - |
|

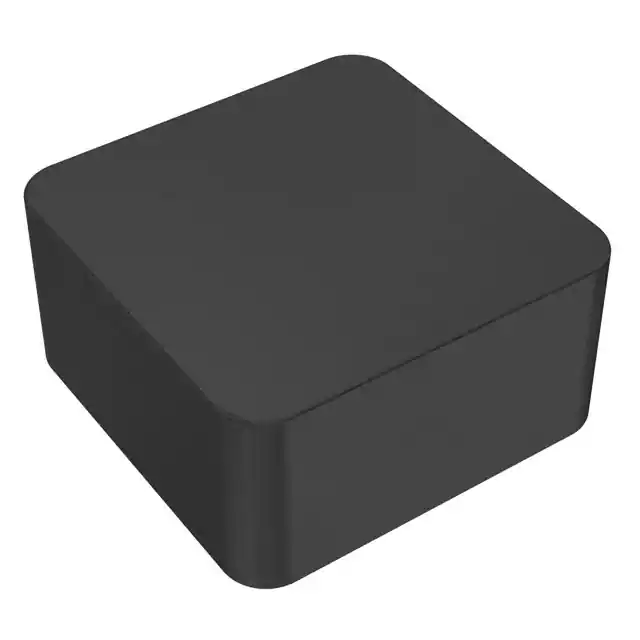

CDMT40D30HF-4R7NCFIXED IND 4.7UH 3.6A 37 MOHM SMD Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDMT40D30 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±30% | 3.6 A | 4.3A | Shielded | 37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | 0.122" (3.10mm) |
|
|
CDRH10D60BT150NP-1R3NCFIXED IND 1.3UH 11.3A 6.2MOHM SM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.3 µH | ±30% | 11.3 A | 17A | Shielded | 6.2mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|
|
CDRH10D60BT150NP-220MCFIXED IND 22UH 3.3A 43 MOHM SMD Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 3.3 A | 4.1A | Shielded | 43mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|

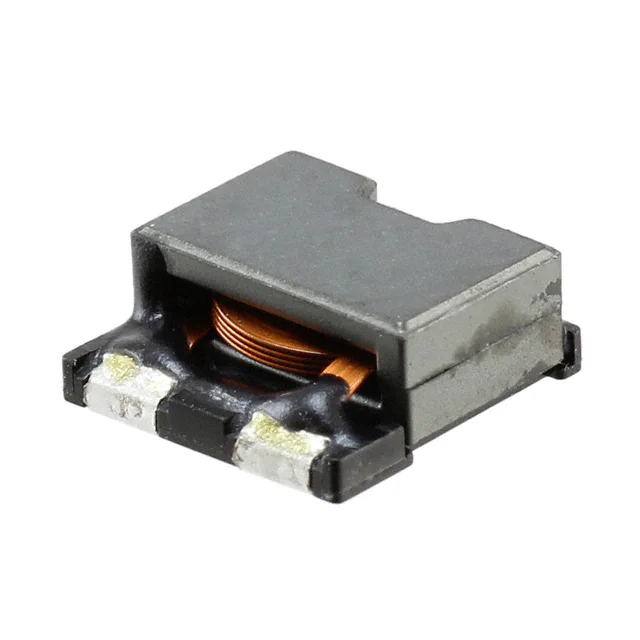

CDEP104NP-2R2MC-88FIXED IND 2.2UH 7.3A 11.8MOHM SM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP104 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 7.3 A | 9.8A | Shielded | 11.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
CLP0612NP-350TRANSFORMER Sumida America Components Inc. |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CEP125NP-7R2MC-HFIXED IND 7.2UH 7.6A 13.5MOHM SM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.2 µH | ±20% | 7.6 A | 7.8A | Shielded | 13.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|

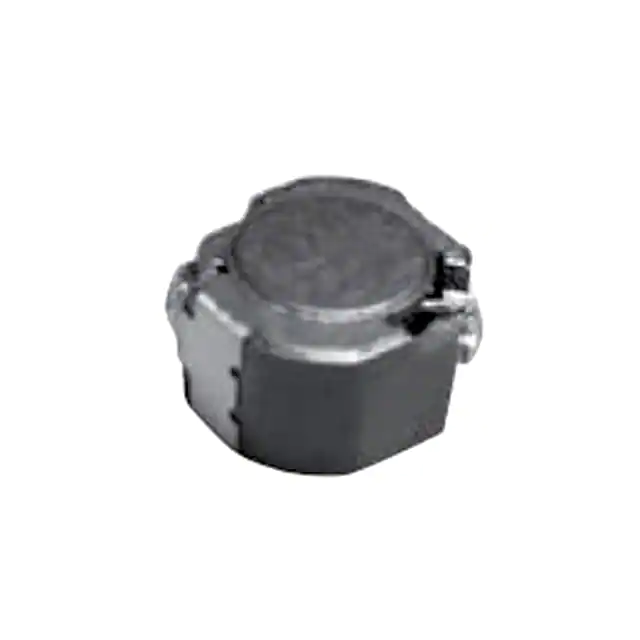

CDRH70D45BT150NP-330MCFIXED IND 33UH 2.2A 97 MOHM SMD Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 2.2 A | 1.6A | Shielded | 97mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
|
|
CDEP104NP-1R4MC-88FIXED IND 1.4UH 10.2A 5.9MOHM SM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP104 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.4 µH | ±20% | 10.2 A | 12.2A | Shielded | 5.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
