Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

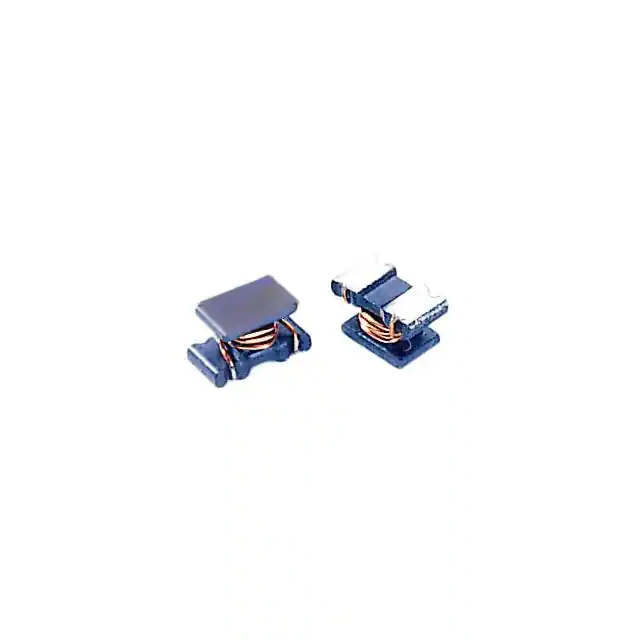

SC1206-100FIXED IND 10UH 400MA 1.69OHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC1206 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | 400 mA | 230mA | Unshielded | 1.69Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.071" W (3.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
SC1206-101FIXED IND 100UH 120MA 15.6OHM SM Signal Transformer |
0 |
|
Таблицы данных |
SC1206 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | 120 mA | 80mA | Unshielded | 15.6Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.071" W (3.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
SC1206-1R0FIXED IND 1UH 780MA 364 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC1206 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 780 mA | 510mA | Unshielded | 364mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.071" W (3.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
SC1206-220FIXED IND 22UH 250MA 3.9 OHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC1206 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | 250 mA | 160mA | Unshielded | 3.9Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.071" W (3.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
SC1206-2R2FIXED IND 2.2UH 660MA 533MOHM SM Signal Transformer |
0 |
|
Таблицы данных |
SC1206 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 660 mA | 430mA | Unshielded | 533mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.071" W (3.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
SC1206-470FIXED IND 47UH 150MA 10.4OHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC1206 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 150 mA | 100mA | Unshielded | 10.4Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.071" W (3.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
SC1206-4R7FIXED IND 4.7UH 580MA 845MOHM SM Signal Transformer |
0 |
|
Таблицы данных |
SC1206 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 580 mA | 340mA | Unshielded | 845mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.071" W (3.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
SC1206-R12FIXED IND 120NH 1.6A 112MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC1206 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 nH | ±30% | 1.6 A | 970mA | Unshielded | 112mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.071" W (3.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
SC1206-R22FIXED IND 220NH 1.35A 140MOHM SM Signal Transformer |
0 |
|
Таблицы данных |
SC1206 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±30% | 1.35 A | 850mA | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.071" W (3.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
SC1206-R47FIXED IND 470NH 1.08A 210MOHM SM Signal Transformer |
0 |
|
Таблицы данных |
SC1206 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±30% | 1.08 A | 700mA | Unshielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.138" L x 0.071" W (3.50mm x 1.80mm) | 0.079" (2.00mm) |
