Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,00x1,60x,80mm.jpg)
|
CIGW201610GLR47MLEFIXED IND 470NH 5.3A 26MOHM SMD Samsung Electro-Mechanics |
0 |
|
- |
CIGW | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 5.3 A | 5A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
CIH05T33NJNCFIXED IND 33NH 250MA 1 OHM SMD Samsung Electro-Mechanics |
94 |
|
- |
CIH05T | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 33 nH | ±5% | 250 mA | - | Unshielded | 1Ohm Max | 8 @ 100MHz | 1.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
CIH05T6N2SNCFIXED IND 6.2NH 300MA 320MOHM SM Samsung Electro-Mechanics |
80 |
|
- |
CIH05T | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 6.2 nH | ±0.3nH | 300 mA | - | Unshielded | 320mOhm Max | 8 @ 100MHz | 3.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|

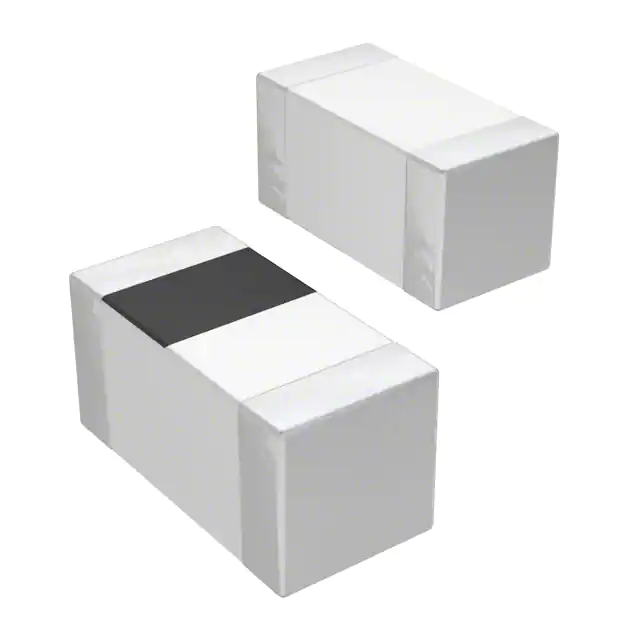

CIH10TR15JNCFIXED IND 150NH 250MA 1.2OHM SMD Samsung Electro-Mechanics |
21 |
|
Таблицы данных |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 150 nH | ±5% | 250 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 500MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH05T2N7SNCFIXED IND 2.7NH 300MA 170MOHM SM Samsung Electro-Mechanics |
17 |
|
- |
CIH05T | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.7 nH | ±0.3nH | 300 mA | - | Unshielded | 170mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
CIH05T3N6SNCFIXED IND 3.6NH 300MA 190MOHM SM Samsung Electro-Mechanics |
6 |
|
- |
CIH05T | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.6 nH | ±0.3nH | 300 mA | - | Unshielded | 190mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
CIH10TR22JNCFIXED IND 220NH 200MA 1.5OHM SMD Samsung Electro-Mechanics |
3 |
|
Таблицы данных |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 220 nH | ±5% | 200 mA | - | Unshielded | 1.5Ohm Max | 8 @ 100MHz | 400MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH05TR10JNCFIXED IND 100NH 130MA 1.6OHM SMD Samsung Electro-Mechanics |
2 |
|
- |
CIH05T | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 100 nH | ±5% | 130 mA | - | Unshielded | 1.6Ohm Max | 8 @ 100MHz | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
CIH05T22NJNCFIXED IND 22NH 250MA 800MOHM SMD Samsung Electro-Mechanics |
1 |
|
- |
CIH05T | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 22 nH | ±5% | 250 mA | - | Unshielded | 800mOhm Max | 8 @ 100MHz | 1.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
CIH10TR18JNCFIXED IND 180NH 250MA 1.3OHM SMD Samsung Electro-Mechanics |
1 |
|
Таблицы данных |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 180 nH | ±5% | 250 mA | - | Unshielded | 1.3Ohm Max | 8 @ 100MHz | 400MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
