Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

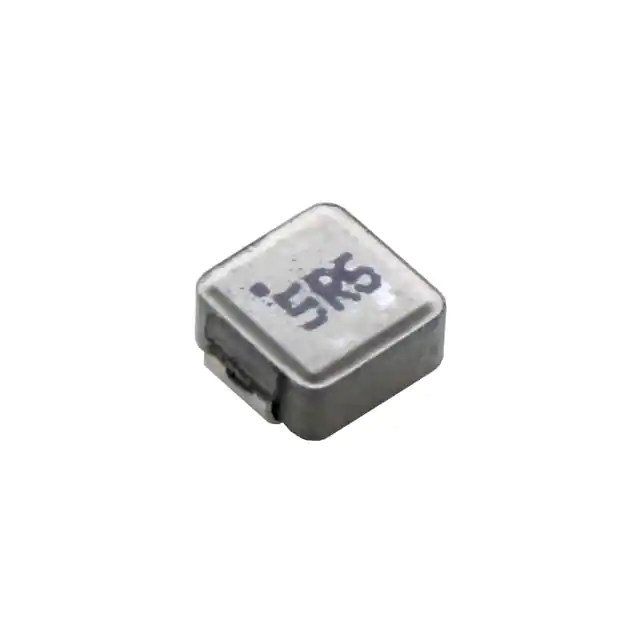

MPL-AY4020-100FIXED IND 10UH 1.9A 163 MOHM SMD Monolithic Power Systems Inc. |
2,812 |
|
- |
MPL-AY | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | - | 1.9 A | 2A | Unshielded | 163mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.161" W (4.45mm x 4.10mm) | 0.079" (2.00mm) |
|
|
MPL-AY4020-5R6FIXED IND 5.6UH 2.45A 97MOHM SMD Monolithic Power Systems Inc. |
815 |
|
- |
MPL-AY | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | - | 2.45 A | 2.6A | Unshielded | 97mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.161" W (4.45mm x 4.10mm) | 0.079" (2.00mm) |
|
MPL-AL4020-1R2FIXED IND 1.2UH 7.4A 12.2MOHM SM Monolithic Power Systems Inc. |
1,485 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | - | 7.4 A | 7.5A | Unshielded | 12.2mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
MPL-AL4020-R82FIXED IND 820NH 8.4A 9 MOHM SMD Monolithic Power Systems Inc. |
1,027 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 820 nH | - | 8.4 A | 9.5A | Unshielded | 9mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
MPL-AL4020-R47FIXED IND 470NH 9.2A 6.2MOHM SMD Monolithic Power Systems Inc. |
833 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 470 nH | - | 9.2 A | 12.5A | Unshielded | 6.2mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
MPL-AL4020-1R5FIXED IND 1.5UH 6.4A 14.5MOHM SM Monolithic Power Systems Inc. |
748 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | - | 6.4 A | 7.1A | Unshielded | 14.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
MPL-AL5030-1R2FIXED IND 1.2UH 10A 8 MOHM SMD Monolithic Power Systems Inc. |
2,000 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | - | 10 A | 14A | Unshielded | 8mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
MPL-AL5030-R82FIXED IND 820NH 12.8A 5 MOHM SMD Monolithic Power Systems Inc. |
1,964 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 820 nH | - | 12.8 A | 18A | Unshielded | 5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
MPL-AL5030-1R8FIXED IND 1.8UH 8.8A 10.5MOHM SM Monolithic Power Systems Inc. |
1,671 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | - | 8.8 A | 12A | Unshielded | 10.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
MPL-AY1050-R68FIXED IND 680NH 23A 1.75MOHM SMD Monolithic Power Systems Inc. |
452 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 680 nH | - | 23 A | 36A | Unshielded | 1.75mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
