Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HL02150GTTRFIXED IND 15NH 200MA 904MOHM SMD KYOCERA AVX |
0 |
|
Таблицы данных |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 15 nH | ±2% | 200 mA | - | Unshielded | 904mOhm Max | 32 @ 450MHz | 2.68GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
HL02220HTTROPC INDUCTORS KYOCERA AVX |
0 |
|
- |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 22 nH | ±3% | 75 mA | - | Unshielded | 1.9Ohm Max | 15 @ 450MHz | 3GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HL02100HTTROPC INDUCTORS KYOCERA AVX |
0 |
|
- |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 nH | ±3% | 105 mA | - | Unshielded | 1Ohm Max | 15 @ 450MHz | 5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HL02300HTTROPC INDUCTORS KYOCERA AVX |
0 |
|
- |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 30 nH | ±3% | 65 mA | - | Unshielded | 2.2Ohm Max | 15 @ 450MHz | 2GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HL02270HTTROPC INDUCTORS KYOCERA AVX |
0 |
|
- |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 27 nH | ±3% | 75 mA | - | Unshielded | 2.1Ohm Max | 15 @ 450MHz | 3GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|

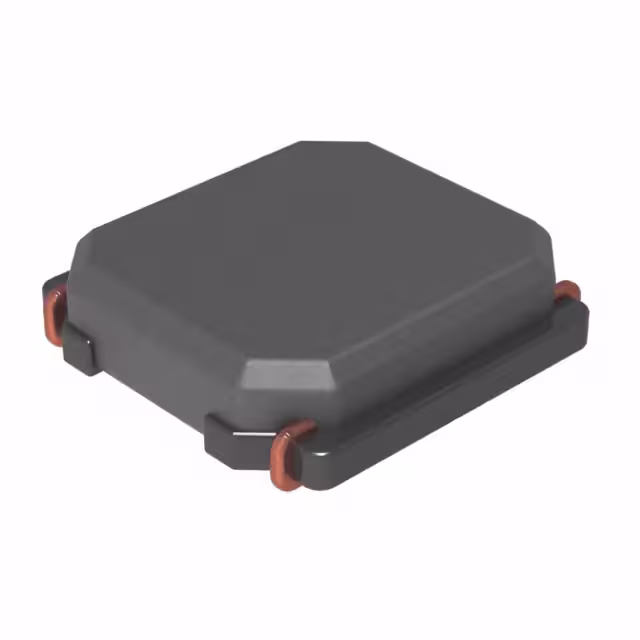

LMLP04A4M100CTASFIXED IND 10UH 770MA 240MOHM SMD KYOCERA AVX |
0 |
|
Таблицы данных |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 770 mA | 740mA | Shielded | 240mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
LMLP04A4N1R0CTASFIXED IND 1UH 1.5A 60 MOHM SMD KYOCERA AVX |
0 |
|
Таблицы данных |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 1.5 A | 2.5A | Shielded | 60mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
LMLP04A4N4R7CTASFIXED IND 4.7UH 960MA 140MOHM SM KYOCERA AVX |
0 |
|
Таблицы данных |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 960 mA | 1.05A | Shielded | 140mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LMLP0404N3R3CTASFIXED IND 3.3UH 820MA 180MOHM SM KYOCERA AVX |
0 |
|
Таблицы данных |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 820 mA | 1.1A | Shielded | 180mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LMLP0404N6R8CTASFIXED IND 6.8UH 620MA 300MOHM SM KYOCERA AVX |
0 |
|
Таблицы данных |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 620 mA | 740mA | Shielded | 300mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
