Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

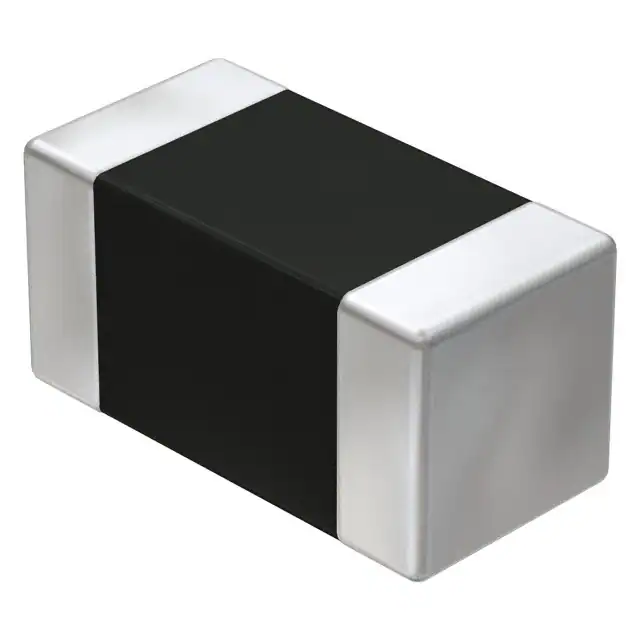

L-14W6N8SV4EFIXED IND 6.8NH 700MA 110MOHM SM Johanson Technology Inc. |
0 |
|
Таблицы данных |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 6.8 nH | ±0.3nH | 700 mA | - | Unshielded | 110mOhm Max | 30 @ 250MHz | 4.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
L-14W8N2SV4EFIXED IND 8.2NH 700MA 100MOHM SM Johanson Technology Inc. |
0 |
|
Таблицы данных |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 8.2 nH | ±0.3nH | 700 mA | - | Unshielded | 100mOhm Max | 30 @ 250MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
.jpg)
|

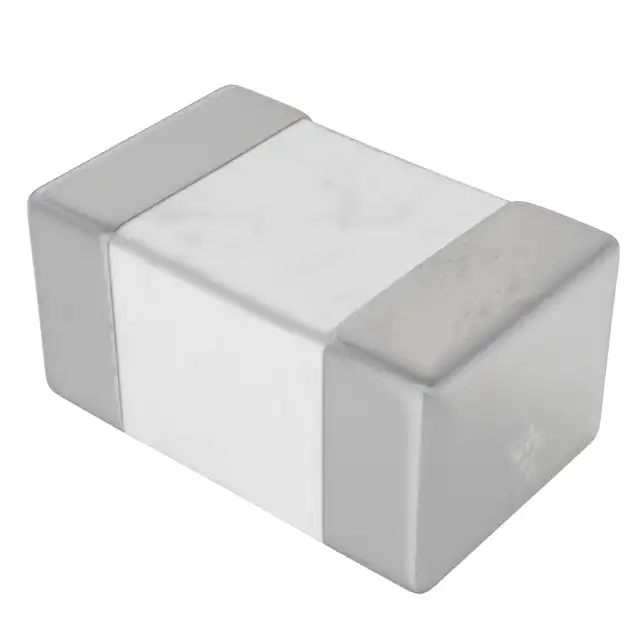

L-15W24NGV4EFIXED IND 24NH 600MA SMD Johanson Technology Inc. |
0 |
|
Таблицы данных |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 24 nH | ±2% | 600 mA | - | Unshielded | - | 60 @ 500MHz | - | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
L-15W40NGV4EFIXED IND 40NH 500MA SMD Johanson Technology Inc. |
0 |
|
Таблицы данных |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 40 nH | ±2% | 500 mA | - | Unshielded | - | 60 @ 500MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
.jpg)
|

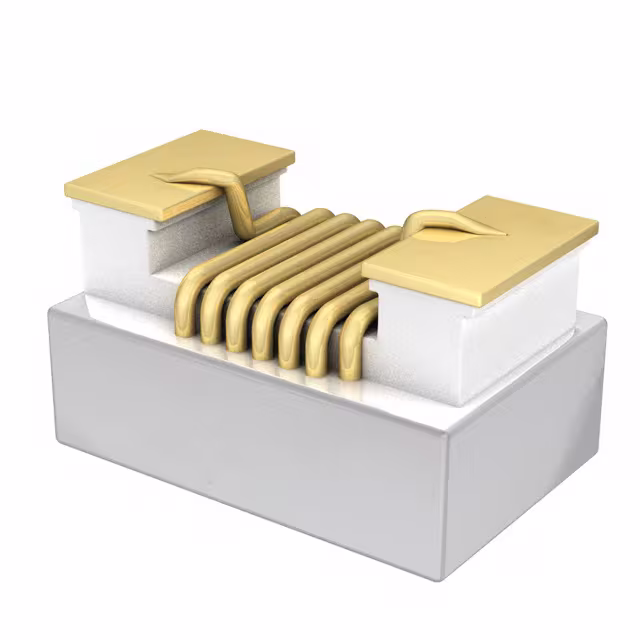

L-07W1N6SV4TFIXED IND 1.6NH SMD Johanson Technology Inc. |
0 |
|
Таблицы данных |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 1.6 nH | ±0.3nH | - | - | Unshielded | - | - | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
L-07W3N3SV4TFIXED IND 3.3NH 840MA 66MOHM SMD Johanson Technology Inc. |
0 |
|
Таблицы данных |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 3.3 nH | ±0.3nH | 840 mA | - | Unshielded | 66mOhm Max | 53 @ 900MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
L-07W3N6SV4TFIXED IND 3.6NH 840MA 66MOHM SMD Johanson Technology Inc. |
0 |
|
Таблицы данных |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 3.6 nH | ±0.3nH | 840 mA | - | Unshielded | 66mOhm Max | 55 @ 900MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
L-07W4N3SV4TFIXED IND 4.3NH 700MA SMD Johanson Technology Inc. |
0 |
|
Таблицы данных |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 4.3 nH | ±0.3nH | 700 mA | - | Unshielded | - | 55 @ 900MHz | 11GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
L-07W4N7SV4TFIXED IND 4.7NH 640MA 130MOHM SM Johanson Technology Inc. |
0 |
|
Таблицы данных |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 4.7 nH | ±0.3nH | 640 mA | - | Unshielded | 130mOhm Max | 55 @ 900MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
L-07W5N6SV4TFIXED IND 5.6NH 760MA 83MOHM SMD Johanson Technology Inc. |
0 |
|
Таблицы данных |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 5.6 nH | ±0.3nH | 760 mA | - | Unshielded | 83mOhm Max | 61 @ 900MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
