Выключатели аварийной остановки (E-Stop)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Операция сброса | Схема | Функция переключения | Особенности | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Размеры выреза панели | Тип вывода | Защита от проникновения | Рабочая температура | Напряжение освещения (номинальное) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.15.213.014/0000SW E-STOP TWIST RESET 100MA 35V |
4 |
|
Таблицы данных |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | Status Indicator | 100mA (AC/DC) | 35 V | 35 V | Circular - 16.20mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
A22NE-MRS-P202-NSWITCH E-STOP PULL RESET 5A 125V |
2 |
|
Таблицы данных |
A22N | Box | Active | Panel Mount, Front | Pull | DPST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
A22EL-M-T2-01SW E-STOP TWIST RESET 10A 110V |
5 |
|
Таблицы данных |
A22E | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | Illuminated (Red) | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 220 VAC |
|
|

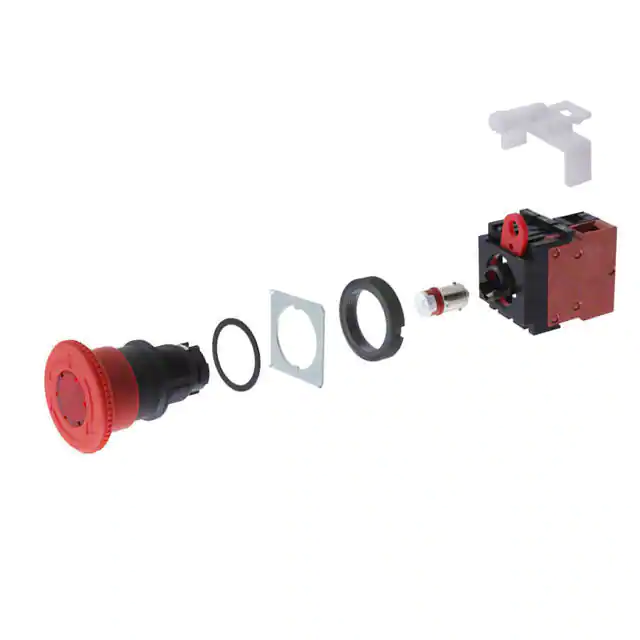

A22EL-M-T1-01SW E-STOP TWIST RESET 10A 110V |
2 |
|
Таблицы данных |
A22E | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | Illuminated (Red) | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 110 VAC |
|
1.15.105.112/0000SW E-STOP TWIST RESET 2.5A 250V |
15 |
|
Таблицы данных |
LUMOTAST 22 | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | Status Indicator | 2.5A (AC/DC) | 250 V | 240 V | Circular - 22.30mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
SSA-EB1MP-13SW E-STOP KEY LOCK RESET 2A 30V |
2 |
|
Таблицы данных |
SSA-EB | Bulk | Active | Panel Mount, Front | Key Lock | 4PST-3NC/1NO | On-Off, Off-On | - | 2A (DC) | - | 30 V | Circular - 30.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|

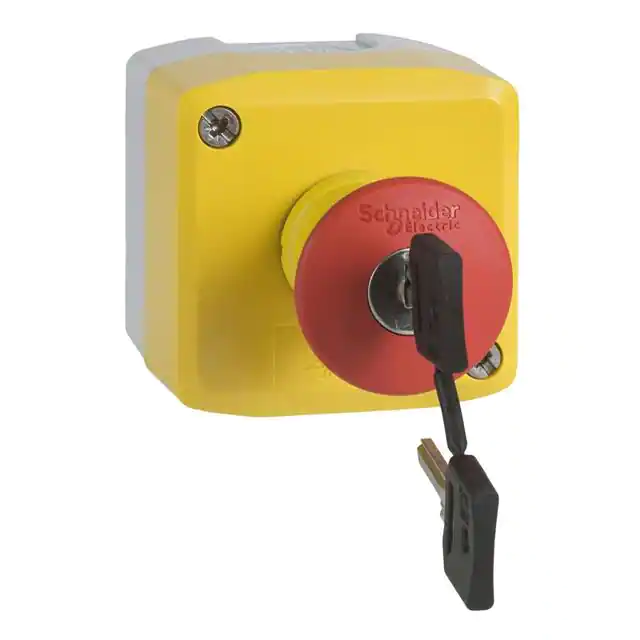

XALK188EH7SW E-STOP KEY LOCK RESET 6A 120V |
3 |
|
Таблицы данных |
Harmony XALK | Box | Active | Panel Mount, Front | Key Lock | DPST-NO/NC | On-Off, Off-On | - | 6A (AC), 550mA (DC) | 120 V | 125 V | Circular - 22.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -40°C ~ 70°C | - |
|
SG-C1-21-ESWITCH ESTOP TWIST RESET 1A 125V |
2 |
|
Таблицы данных |
SG-C1 | Bulk | Active | Free Hanging | Twist | DPST-NC | On-Off | - | 1A (AC/DC) | 125 V | 30 V | - | Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
SG-C1-21-EMKSWITCH ESTOP TWIST RESET 1A 125V |
4 |
|
Таблицы данных |
SG-C1 | Bulk | Active | Free Hanging | Twist | DPST-NC | On-Off | With Key Selector Switch | 1A (AC/DC) | 125 V | 30 V | - | Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
|
CP2E-BVE20R22MM/WITHOUT LIGHT/PUSH-IN/2NO/I |
15 |
|
Таблицы данных |
- | Box | Active | Panel Mount, Front | Pull | DPST-NO | Off-On | - | 8A (AC), 2.5A (DC) | 120 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP66 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
2-2416049-4PBES22 40 INCA 12V AC/DC 18V 1W |
47 |
|
Таблицы данных |
PBES22 | Bulk | Active | Panel Mount, Front | Pull or Twist | SPST-NO | Off-On | Push-Lock, Turn-Reset | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | 12 VAC/DC |
|
|
CP2E-BVE01R22MM/WITHOUT LIGHT/PUSH-IN//1NC/ |
16 |
|
Таблицы данных |
- | Box | Active | Panel Mount, Front | Pull | SPST-NC | On-Off | - | 8A (AC), 2.5A (DC) | 120 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP66 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
CP2E-BVE02R22MM/WITHOUT LIGHT/PUSH-IN/2NC/I |
16 |
|
Таблицы данных |
- | Box | Active | Panel Mount, Front | Pull | DPST-NC | On-Off | - | 8A (AC), 2.5A (DC) | 120 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP66 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
CP2E-BVE11R22MM/WITHOUT LIGHT/PUSH-IN/1NO1N |
16 |
|
Таблицы данных |
- | Box | Active | Panel Mount, Front | Pull | DPST-NO/NC | On-Off, Off-On | - | 8A (AC), 2.5A (DC) | 120 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP66 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
CP2E-BVE10R22MM/WITHOUT LIGHT/PUSH-IN/1NO/I |
16 |
|
Таблицы данных |
- | Box | Active | Panel Mount, Front | Pull | SPST-NO | Off-On | - | 8A (AC), 2.5A (DC) | 120 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP66 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
1-2416049-0PBES22 40 NO LAMP NC NC |
41 |
|
Таблицы данных |
PBES22 | Bulk | Active | Panel Mount, Front | Pull or Twist | DPST-NC | On-Off | Push-Lock, Turn-Reset | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
1-2416049-9PBES22 40 NO LAMP NO 000 |
45 |
|
Таблицы данных |
PBES22 | Bulk | Active | Panel Mount, Front | Pull or Twist | SPST-NO | Off-On | Push-Lock, Turn-Reset | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
2-2416049-0PBES22 40 LED 6V AC/DC 11MA NO 0 |
50 |
|
Таблицы данных |
PBES22 | Bulk | Active | Panel Mount, Front | Pull or Twist | SPST-NO | Off-On | Push-Lock, Turn-Reset | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | 6 VDC |
|
|
2416049-3PBES22 40 LED 12V AC/DC 10MA 000 |
48 |
|
Таблицы данных |
PBES22 | Bulk | Active | Panel Mount, Front | Pull or Twist | SPST-NC | On-Off | Push-Lock, Turn-Reset | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | 12 VDC |
|
|
2416050-8PBES22 40 RB NO LAMP NO NO NC |
49 |
|
Таблицы данных |
PBES22 | Bulk | Active | Panel Mount, Front | Pull or Twist | 3PST-2NO/1NC | On-Off, Off-On | Push-Lock, Turn-Reset | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
