Микроконтроллеры
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Корпус/корпус | Серия | Упаковка | Состояние продукта | Программируемый | Ядро процессора | Размер ядра | Скорость | Подключение | Периферийные устройства | Количество входов/выходов | Размер памяти программ | Тип памяти программ | Размер EEPROM | Размер ОЗУ | Напряжение - Питание (Vcc/Vdd) | Преобразователи данных | Тип генератора | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCF5485CVR200IC MCU 32BIT ROMLESS 388PBGA NXP USA Inc. |
380 |
|
Таблицы данных |
388-BBGA | MCF548x | Tray | Not For New Designs | Not Verified | Coldfire V4E | 32-Bit Single-Core | 200MHz | CANbus, EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB | DMA, PWM, WDT | 99 | - | ROMless | - | 32K x 8 | 1.43V ~ 1.58V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|

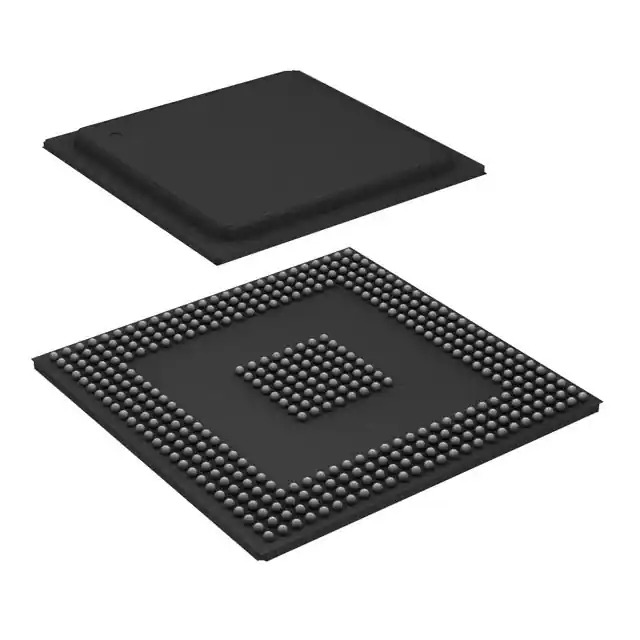

MPC5566MVR132IC MCU 32BIT 3MB FLASH 416PBGA NXP USA Inc. |
194 |
|
Таблицы данных |
416-BBGA | MPC55xx Qorivva | Tray | Active | Not Verified | e200z6 | 32-Bit Single-Core | 132MHz | CANbus, EBI/EMI, Ethernet, SCI, SPI | DMA, POR, PWM, WDT | 256 | 3MB (3M x 8) | FLASH | - | 128K x 8 | 1.35V ~ 1.65V | A/D 40x12b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | |
|
|
MPC565MVR56IC MCU 32BIT 1MB FLASH 388PBGA NXP USA Inc. |
72 |
|
Таблицы данных |
388-BBGA | MPC5xx | Tray | Last Time Buy | Not Verified | PowerPC | 32-Bit Single-Core | 56MHz | CANbus, EBI/EMI, SCI, SPI, UART/USART | POR, PWM, WDT | 56 | 1MB (1M x 8) | FLASH | - | 36K x 8 | 2.5V ~ 2.7V | A/D 40x10b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | |
|
LPC811M001JDH16JIC MCU 32BIT 8KB FLASH 16TSSOP NXP USA Inc. |
2,500 |
|
Таблицы данных |
16-TSSOP (0.173", 4.40mm Width) | LPC81xM | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M0+ | 32-Bit Single-Core | 30MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 14 | 8KB (8K x 8) | FLASH | - | 2K x 8 | 1.8V ~ 3.6V | - | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | |
|
LPC812M101JDH20JIC MCU 32BIT 16KB FLASH 20TSSOP NXP USA Inc. |
10,910 |
|
Таблицы данных |
20-TSSOP (0.173", 4.40mm Width) | LPC81xM | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M0+ | 32-Bit Single-Core | 30MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 18 | 16KB (16K x 8) | FLASH | - | 4K x 8 | 1.8V ~ 3.6V | - | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | |
|
LPC804M101JHI33YIC MCU 32BIT 32KB FLASH 32HVQFN NXP USA Inc. |
10,345 |
|
Таблицы данных |
32-VFQFN Exposed Pad | LPC80xM | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M0+ | 32-Bit Single-Core | 15MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 30 | 32KB (32K x 8) | FLASH | - | 4K x 8 | 1.71V ~ 3.6V | A/D 12x12b; D/A 1x10b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | |
|
|
LPC824M201JDH20JIC MCU 32BIT 32KB FLASH 20TSSOP NXP USA Inc. |
18,466 |
|
Таблицы данных |
20-TSSOP (0.173", 4.40mm Width) | LPC82x | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M0+ | 32-Bit Single-Core | 30MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 16 | 32KB (32K x 8) | FLASH | - | 8K x 8 | 1.8V ~ 3.6V | A/D 5x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | |
|
MC9S08QD4CSCIC MCU 8BIT 4KB FLASH 8SOIC NXP USA Inc. |
6,718 |
|
Таблицы данных |
8-SOIC (0.154", 3.90mm Width) | S08 | Tube | Active | Verified | S08 | 8-Bit | 16MHz | - | LVD, POR, PWM, WDT | 4 | 4KB (4K x 8) | FLASH | - | 256 x 8 | 2.7V ~ 5.5V | A/D 4x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
MKL05Z32VLC4IC MCU 32BIT 32KB FLASH 32LQFP NXP USA Inc. |
1,975 |
|
Таблицы данных |
32-LQFP | Kinetis KL0 | Tray | Active | Not Verified | ARM® Cortex®-M0+ | 32-Bit Single-Core | 48MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT | 28 | 32KB (32K x 8) | FLASH | - | 4K x 8 | 1.71V ~ 3.6V | A/D 14x12b; D/A 1x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | |
|
MKL03Z32VFK4IC MCU 32BIT 32KB FLASH 24QFN NXP USA Inc. |
1,720 |
|
Таблицы данных |
24-VFQFN Exposed Pad | Kinetis KL03 | Tray | Active | Not Verified | ARM® Cortex®-M0+ | 32-Bit Single-Core | 48MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, LVD, POR, PWM, WDT | 22 | 32KB (32K x 8) | FLASH | - | 2K x 8 | 1.71V ~ 3.6V | A/D 7x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount |
