БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1825006-6SWITCH STANDARD DIP SPST |
0 |
|
Таблицы данных |
GDS | Bulk | Active | SPST | 8 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|

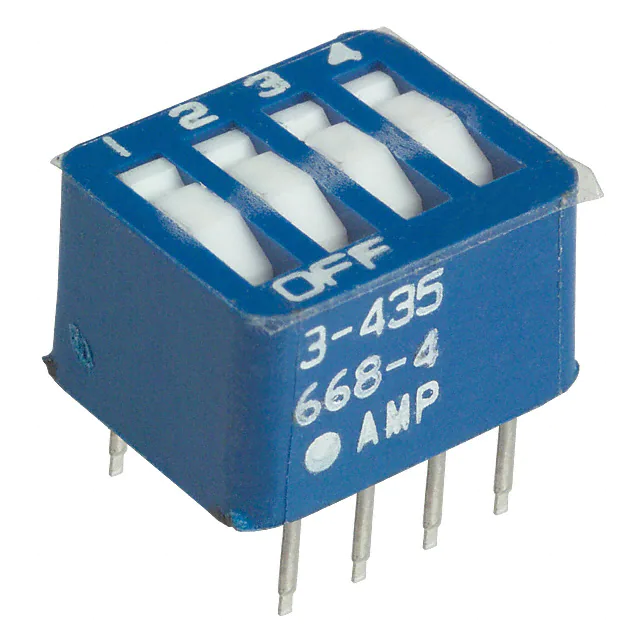

3-435668-4SWITCH ROCKER DIP SPST 0.06A 5V |
3,900 |
|
Таблицы данных |
7100 | Tube | Obsolete | SPST | 4 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
3-435640-7SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Таблицы данных |
7100 | Bulk | Active | SPST | 6 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
2-435668-5SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Таблицы данных |
7100 | Bulk | Obsolete | SPST | 6 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|

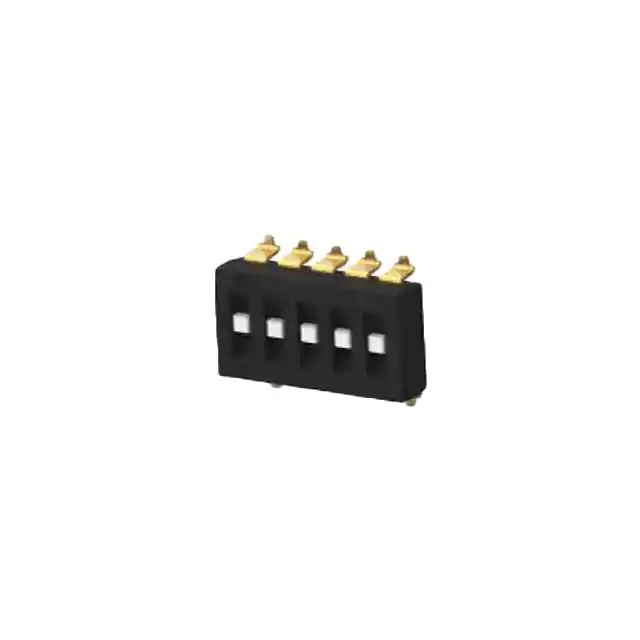

TDS05SGRNTU04SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
TDS | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
435668-7SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Таблицы данных |
7100 | Bulk | Active | SPST | 8 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
TDS08SGRSTR04SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
TDS | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
2-5435668-5SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Таблицы данных |
7100 | Tube | Active | SPST | 6 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
EDSP04SGRFSTR04SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
EDSP | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

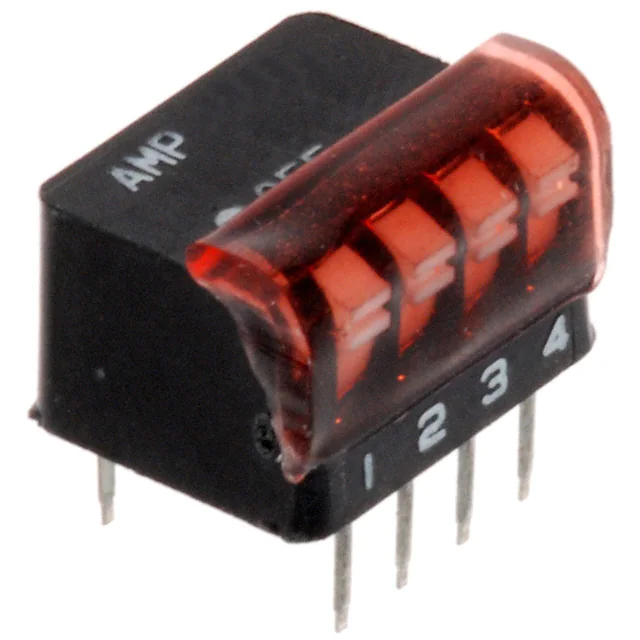

1-5435802-5SWITCH PIANO DIP SPST 0.025A 24V |
8,198 |
|
Таблицы данных |
7000 | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
1-1825002-8SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
ADF | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

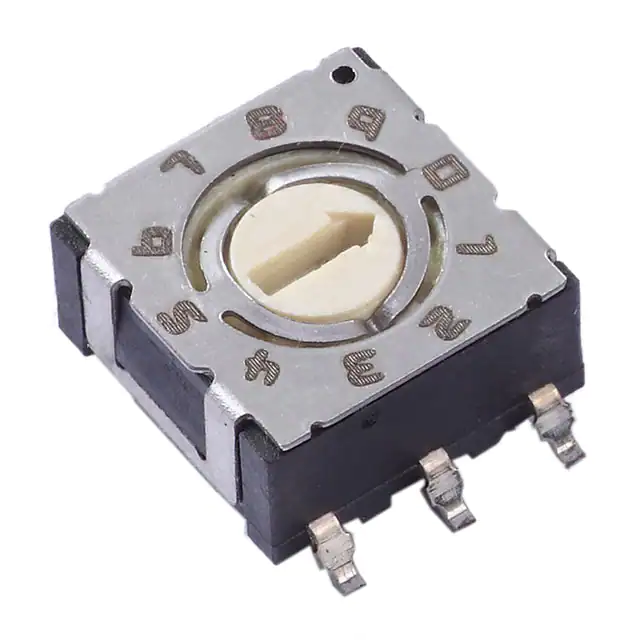

220AMA10RSWITCH ROTARY DIP BCD 0.1A 50V |
15,742 |
|
Таблицы данных |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.150" (3.81mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

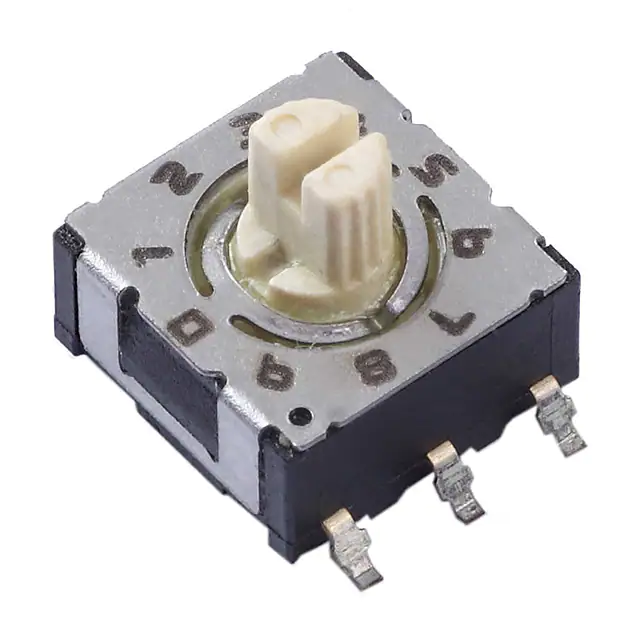

220AMB10RSWITCH ROTARY DIP BCD 0.1A 50V |
27,320 |
|
Таблицы данных |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1825006-5SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
GDS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

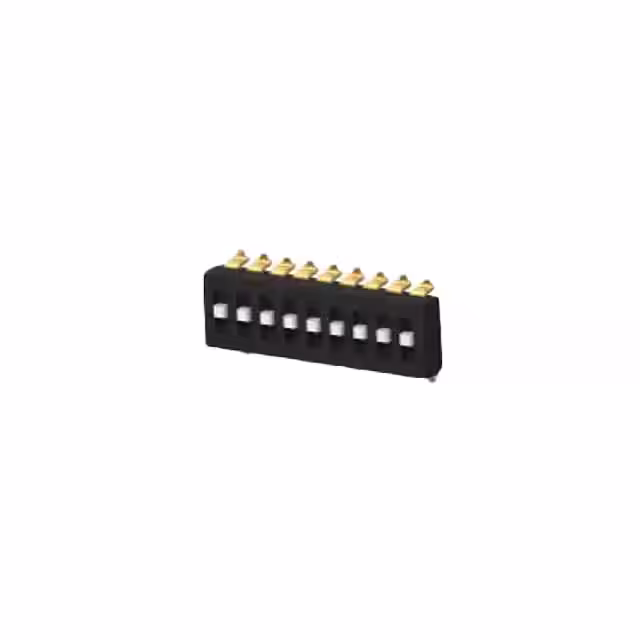

TDS09SGNNTU04SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
TDS | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
GDS04S04Slide Dip Switch, 4 Switches, SP |
6,884 |
|
- |
* | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

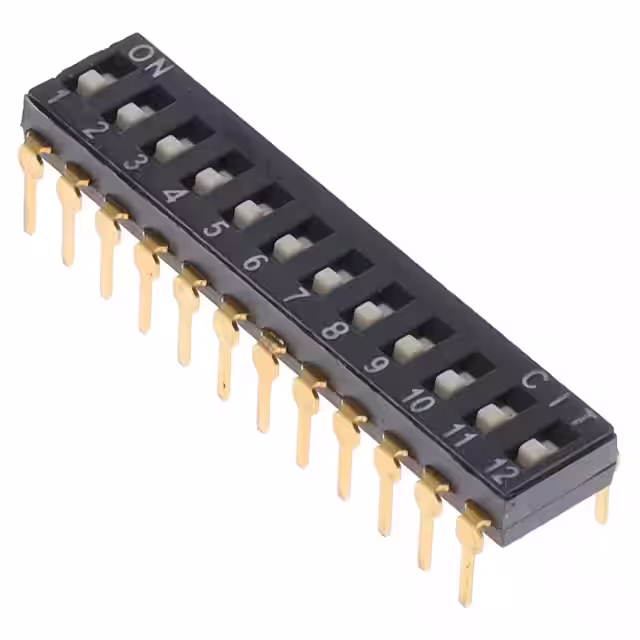

KT12RHSWITCH SLIDE DIP SPST 0.025A 24V |
143 |
|
Таблицы данных |
KT | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

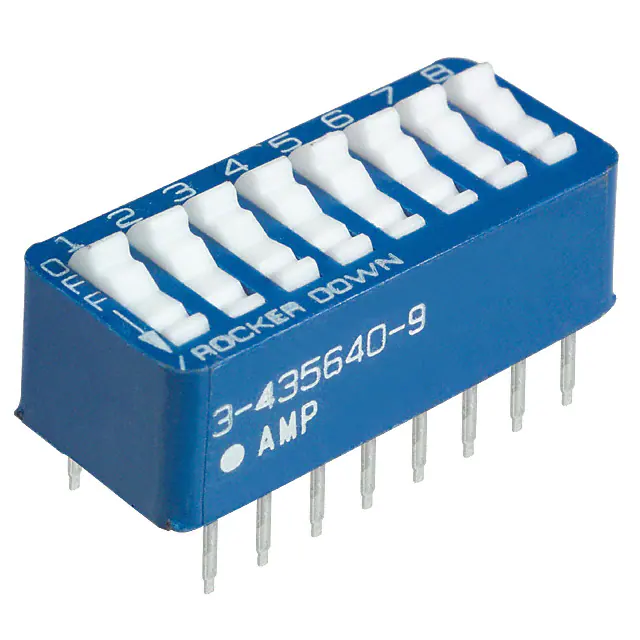

3-5435640-9SWITCH ROCKER DIP SPST 0.06A 5V |
7,969 |
|
Таблицы данных |
7100 | Tube | Obsolete | SPST | 8 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
TDS10SGRSTR04SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
TDS | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
RTE1600R43SWITCH ROTARY DIP HEX 0.1A 30V |
128 |
|
Таблицы данных |
RTE | Bag | Obsolete | Hexadecimal | 16 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | - | Through Hole, Reverse | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
