БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

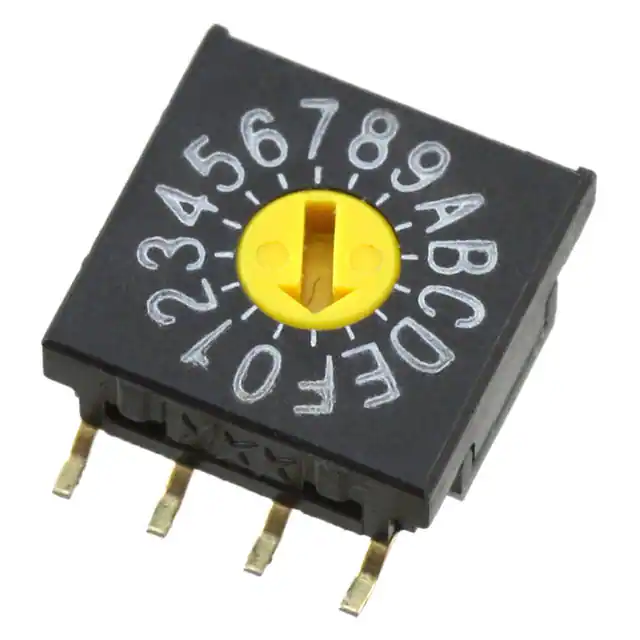

FR02FC16P-SSW ROTARY DIP HEX COMP 0.1A 5V |
730 |
|
Таблицы данных |
FR02 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

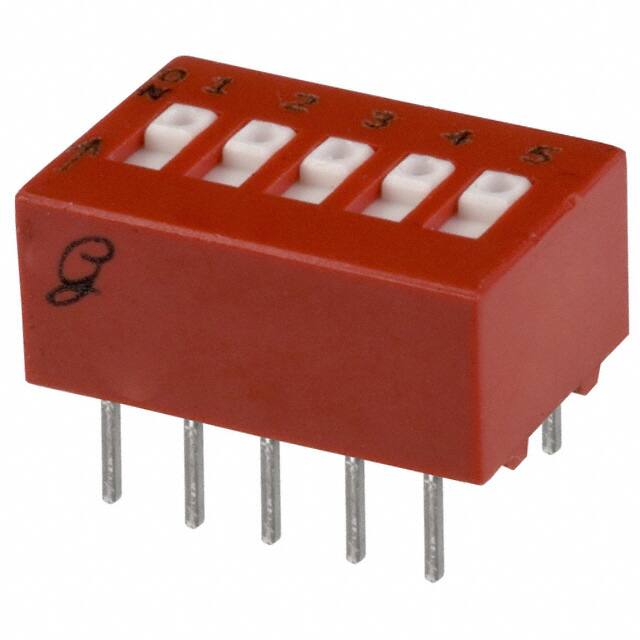

78RB05STSWITCH SLIDE DIP SPST 0.15A 30V |
4,130 |
|
Таблицы данных |
78 | Tube | Active | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
90B03STSWITCH SLIDE DIP SPST 0.025A 24V |
4,766 |
|
Таблицы данных |
90B | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

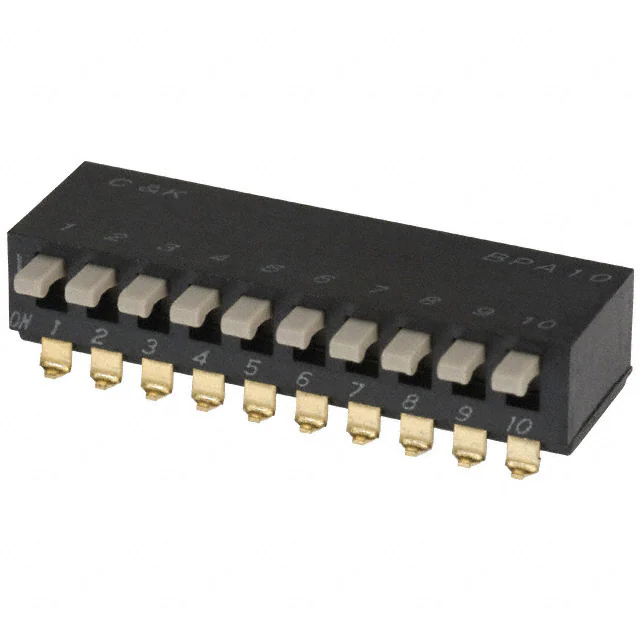

BPA10SBSWITCH PIANO DIP SPST 0.1A 5V |
2,640 |
|
Таблицы данных |
BPA | Tube | Active | SPST | 10 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
A6D-2103SWITCH SLIDE DIP SPST 0.03A 30V |
582 |
|
Таблицы данных |
A6D | Tube | Active | SPST | 2 | 30mA | 30VDC | Slide (Standard) | Raised | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

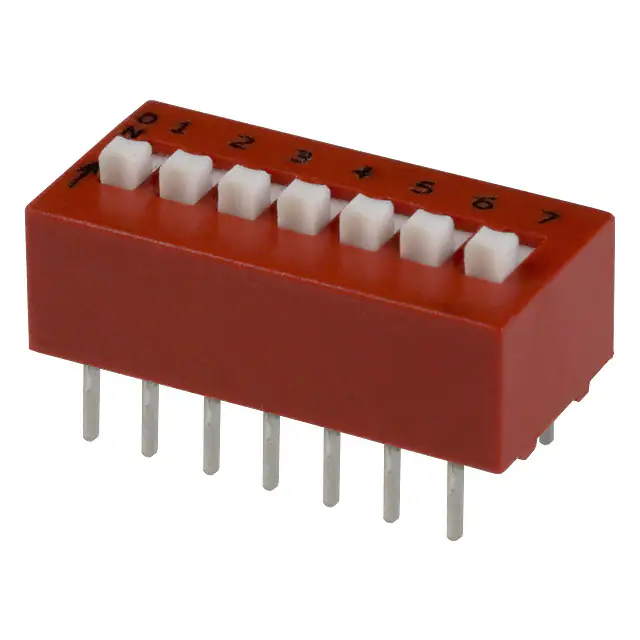

78B07TSWITCH SLIDE DIP SPST 0.15A 30V |
736 |
|
Таблицы данных |
78 | Tube | Active | SPST | 7 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
428427520910SWITCH ROTARY DIP BCD 0.15A 24V |
195 |
|
Таблицы данных |
WS-ROTU | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
90B05STSWITCH SLIDE DIP SPST 0.025A 24V |
593 |
|
Таблицы данных |
90B | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6HR-2104-PMSWITCH PIANO DIP SPST 0.025A 24V |
472 |
|
Таблицы данных |
A6HR | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
78RB08TSWITCH SLIDE DIP SPST 0.15A 30V |
248 |
|
Таблицы данных |
78 | Tube | Active | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
76PSB02TSWITCH PIANO DIP SPST 0.15A 30V |
3,867 |
|
Таблицы данных |
76 | Tube | Active | SPST | 2 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
FR01FR16H-06XL-SSWITCH ROTARY DIP HEX 0.1A 5V |
200 |
|
Таблицы данных |
FR01 | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01FC16H-06XLSW ROTARY DIP HEX COMP 0.1A 5V |
130 |
|
Таблицы данных |
FR01 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
SD-1111SWITCH ROTARY DIP HEX 0.1A 5V |
415 |
|
Таблицы данных |
SD-1000 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
90B06STSWITCH SLIDE DIP SPST 0.025A 24V |
4,858 |
|
Таблицы данных |
90B | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6SN-7104SWITCH SLIDE DIP SPST 0.025A 24V |
129 |
|
Таблицы данных |
A6SN | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

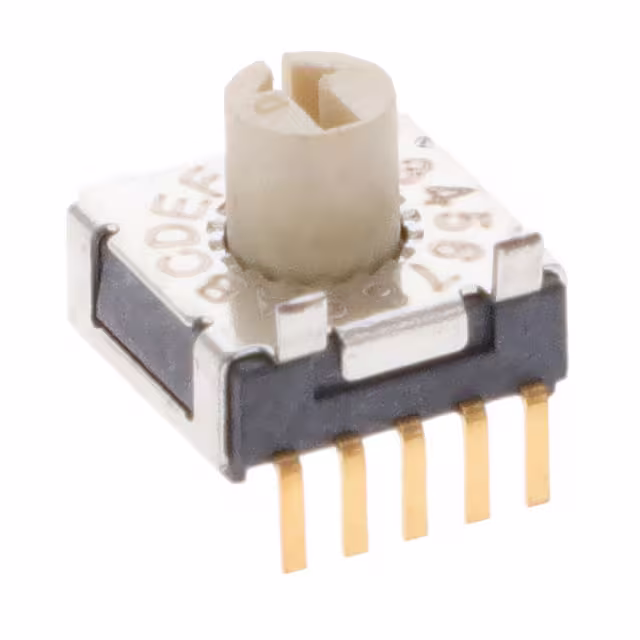

RTF16R3ASWITCH ROTARY DIP HEX 0.1A 5V |
668 |
|
Таблицы данных |
RTF | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
76RSB08TSWITCH ROCKER DIP SPST 0.15A 30V |
5,005 |
|
Таблицы данных |
76 | Tube | Active | SPST | 8 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

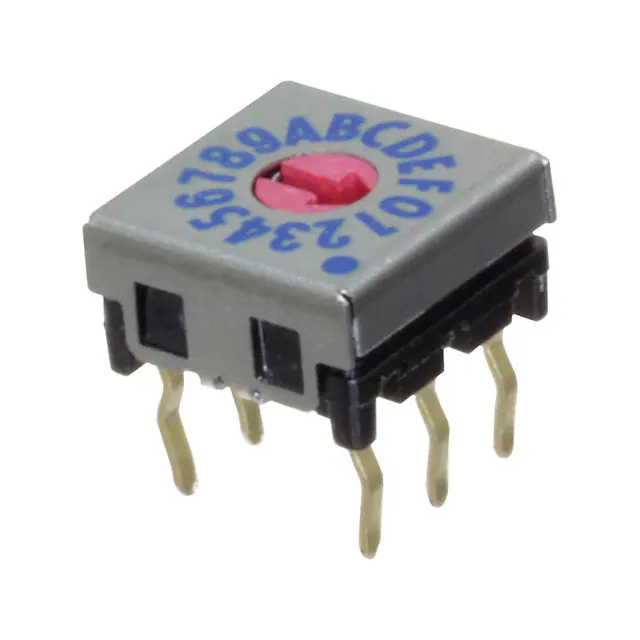

DRS7116CSW ROTARY DIP HEX COMP 0.03A 15V |
240 |
|
Таблицы данных |
DR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.161" (4.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|

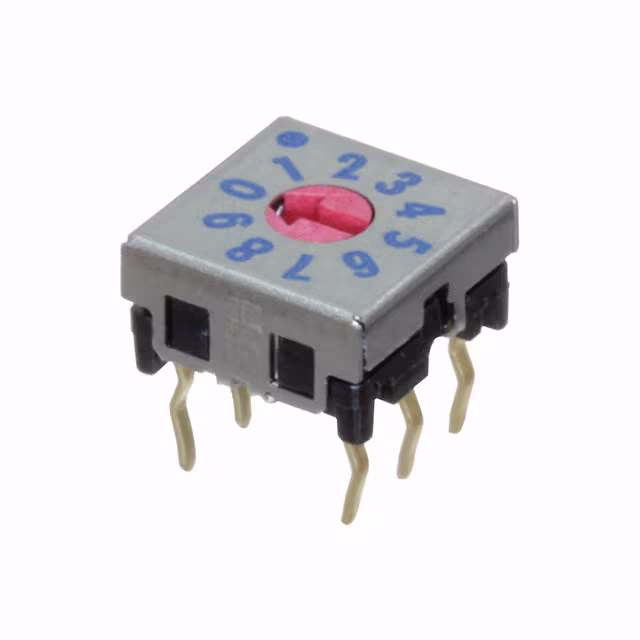

DRS7110CSW ROTARY DIP BCD COMP 0.03A 15V |
140 |
|
Таблицы данных |
DR | Tube | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.161" (4.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
