БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

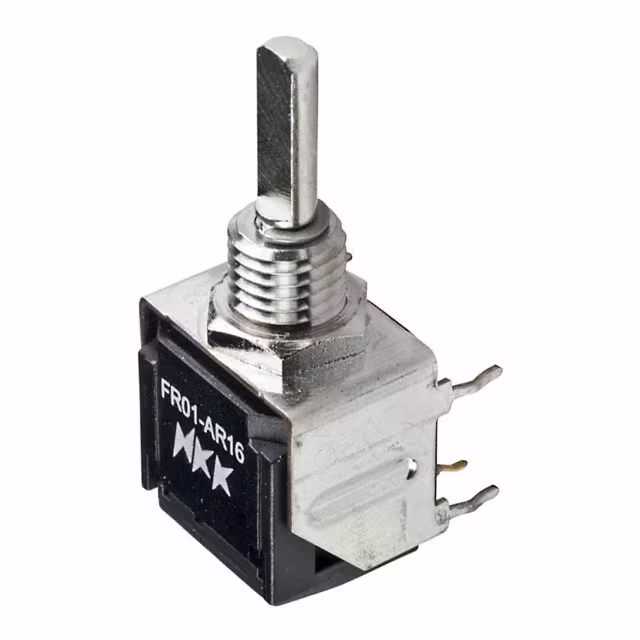

FR01AR16HB-06XLSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Таблицы данных |
FR01 | Bulk | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
JS0408FP4-RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
JS | Tape & Reel (TR) | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|

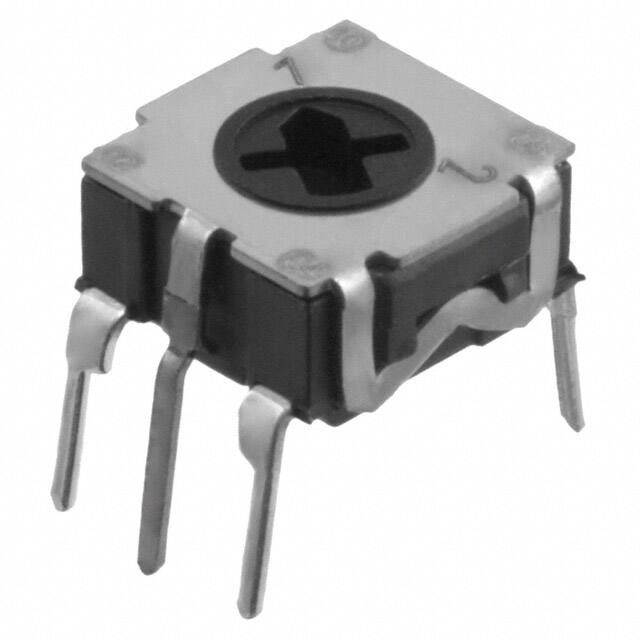

RTE0210N05SWITCH ROTARY DIP SPDT 0.1A 50V |
0 |
|
Таблицы данных |
RTE | Tube | Obsolete | SPDT | 2 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Bronze | Silver | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

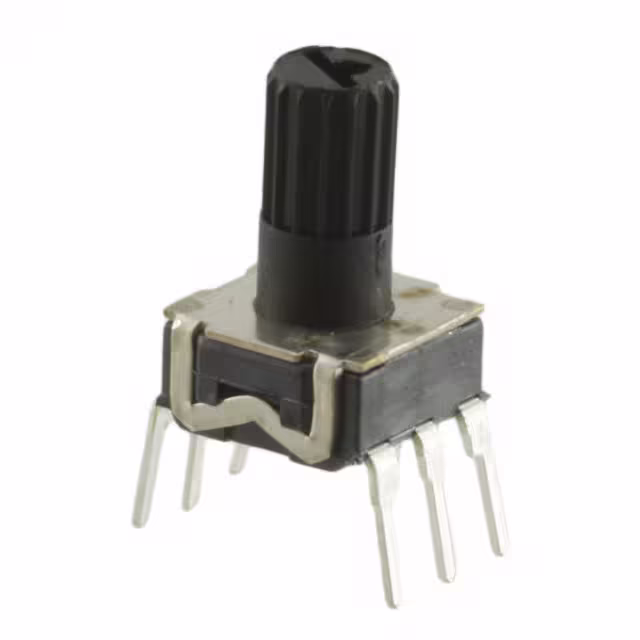

RTE0311N05SWITCH ROTARY DIP SP3T 0.1A 50V |
0 |
|
Таблицы данных |
RTE | Tube | Obsolete | SP3T | 3 | 100mA | 50VDC | Rotary with Shaft | Raised | Bronze | Silver | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

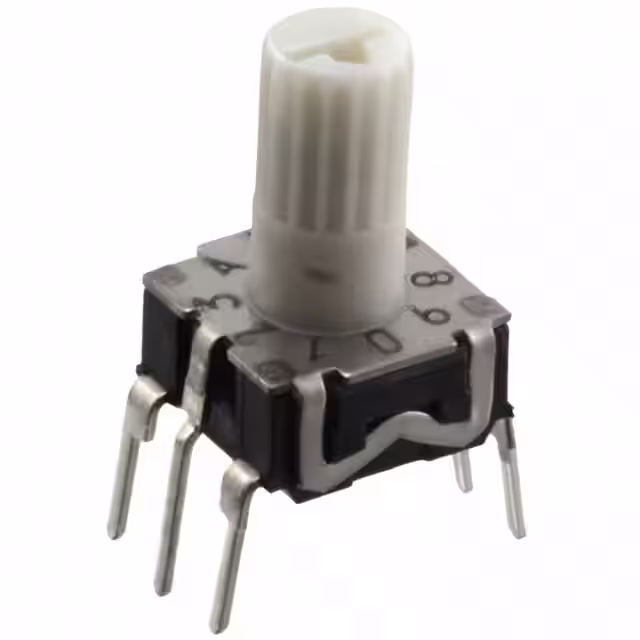

RTE1011N14SWITCH ROTARY DIP BCD 0.1A 30V |
0 |
|
Таблицы данных |
RTE | Tube | Obsolete | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE0312N04SWITCH ROTARY DIP SP3T 0.1A 30V |
0 |
|
Таблицы данных |
RTE | Tube | Obsolete | SP3T | 3 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE1000V24SW ROTARY DIP BCD COMP 0.1A 30V |
0 |
|
Таблицы данных |
RTE | Bulk | Obsolete | BCD Complement | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE1011R14SWITCH ROTARY DIP BCD 0.1A 30V |
0 |
|
Таблицы данных |
RTE | Bulk | Obsolete | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | - | Through Hole, Reverse | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

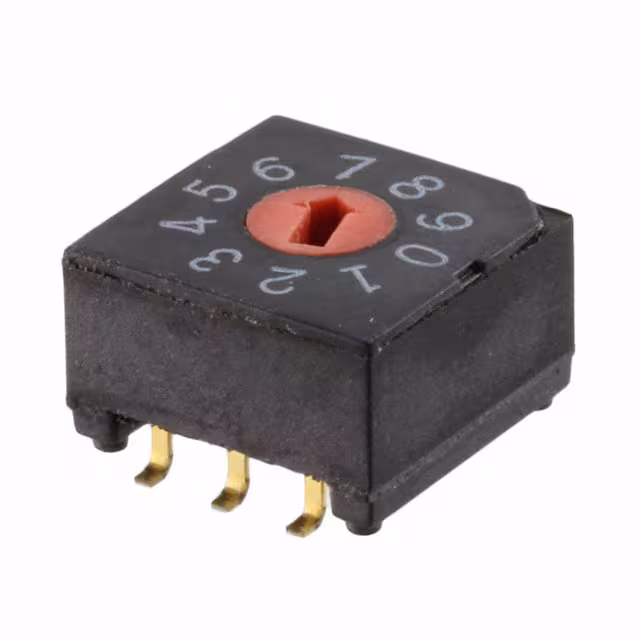

1825007-3SW ROTARY DIP BCD COMP 0.4VA 20V |
0 |
|
Таблицы данных |
DRD | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.39mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1-1825013-7SWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
Таблицы данных |
MRD | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
5-5435640-3SWITCH ROCKER DIP SPST |
0 |
|
Таблицы данных |
7100 | Tube | Obsolete | SPST | 8 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
90HBJ10RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
90HB | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
94HEB10WRTSWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
Таблицы данных |
94H | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
76GB08STSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
76 | Tube | Obsolete | SPST | 8 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
76GB08TSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
76 | Tube | Obsolete | SPST | 8 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76GB10STSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
76 | Tube | Obsolete | SPST | 10 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
76HPSB08TSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
76HP | Tube | Active | SPST | 8 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.305" (7.75mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76PGB04TSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
76 | Tube | Obsolete | SPST | 4 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76PGB06STSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
76 | Tube | Obsolete | SPST | 6 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
76PGB06TSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
76 | Tube | Obsolete | SPST | 6 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
