БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78RB05TSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
78 | Tube | Active | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DMR08TVDIP SWITCH DM LOW PROFILE |
0 |
|
Таблицы данных |
DM | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
DMR07TTRDIP SWITCH DM LOW PROFILE |
0 |
|
Таблицы данных |
DM | Bulk | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
97R06TSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
97 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
RDMBR10R2TSWITCH ROTARY DIP BCD 0.1A 42V |
0 |
|
Таблицы данных |
RDM | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
|
90HBJ03PRTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
90HB | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

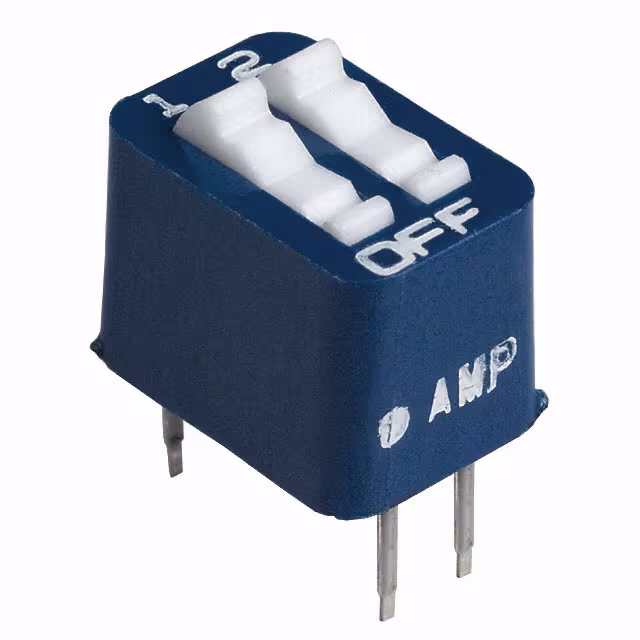

2-435640-9SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Таблицы данных |
7100 | Tube | Active | SPST | 2 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
97C06TSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
97 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
3-1825033-1SWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
Таблицы данных |
DR | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
90HBJ02RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
90HB | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SMR7016C-1SWITCH ROTARY DIP HEX 0.03A 15V |
0 |
|
Таблицы данных |
SMR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

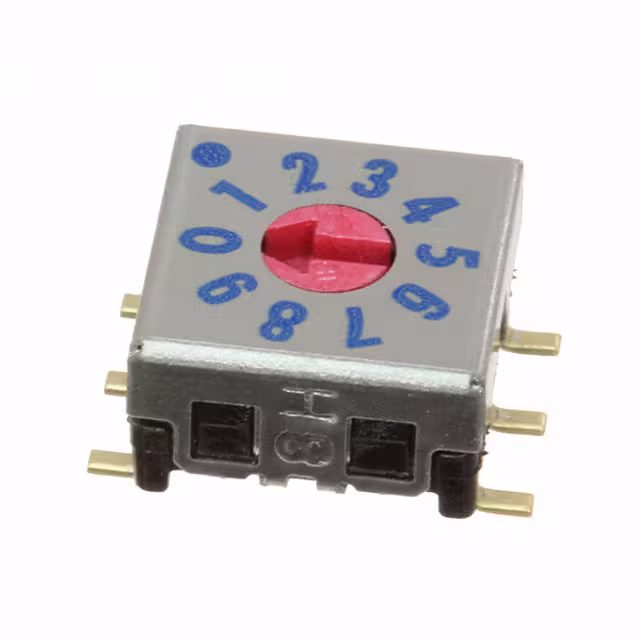

SMR7110C-1SW ROTARY DIP BCD COMP 0.03A 15V |
0 |
|
Таблицы данных |
SMR | Tube | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

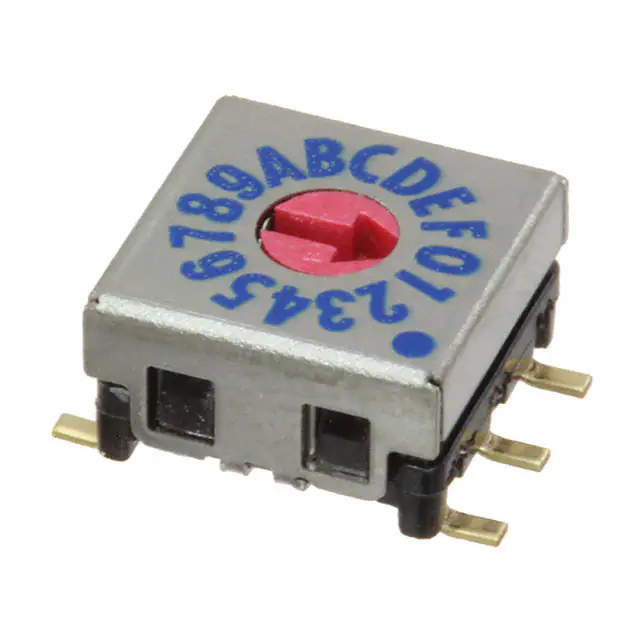

SMR7116C-1SW ROTARY DIP HEX COMP 0.03A 15V |
0 |
|
Таблицы данных |
SMR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
FR01KC10P-SSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Таблицы данных |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DRS8116CSW ROTARY DIP HEX COMP 0.03A 15V |
0 |
|
- |
DR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DRS8016CSWITCH ROTARY DIP HEX 0.03A 15V |
0 |
|
- |
DR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DRS8110CSW ROTARY DIP BCD COMP 0.03A 15V |
0 |
|
- |
DR | Tube | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary with Shaft | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DRS8010CSWITCH ROTARY DIP BCD 0.03A 15V |
0 |
|
- |
DR | Tube | Active | BCD | 10 | 30mA | 15VDC | Rotary with Shaft | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
90B06TSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
90B | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90HBJ05PRTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
90HB | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
