БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RTF16R1KSWITCH ROTARY DIP HEX 100MA 5VDC |
0 |
|
Таблицы данных |
RTF | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.272" (6.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF16C3JSW ROTARY DIP HEX COMP 0.1A 5VDC |
0 |
|
Таблицы данных |
RTF | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF16R1JSWITCH ROTARY DIP HEX 100MA 5VDC |
0 |
|
Таблицы данных |
RTF | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
GDR10SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
GDR | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
RDMAC10S1RSW ROTARY DIP BCD COMP 0.1A 42V |
0 |
|
Таблицы данных |
RDM | Tape & Reel (TR) | Active | BCD Complement | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
DHS4CSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Таблицы данных |
DHS | Tape & Reel (TR) | Obsolete | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 80°C |
|
418317170907SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

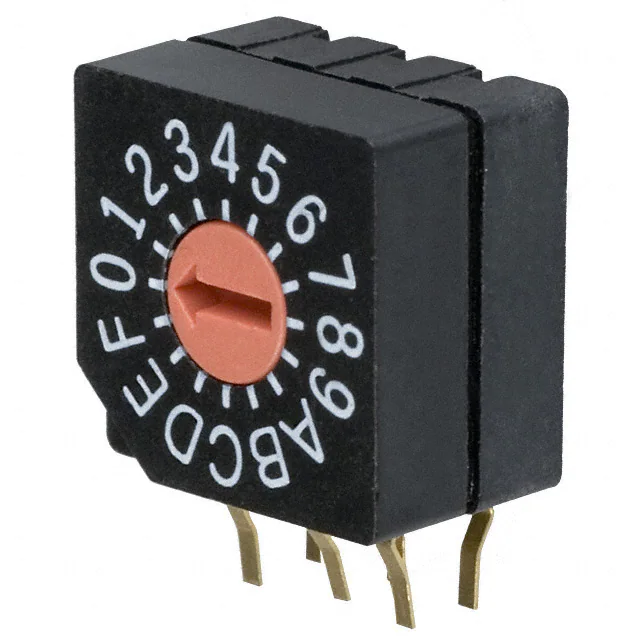

SD-1031SW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Таблицы данных |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

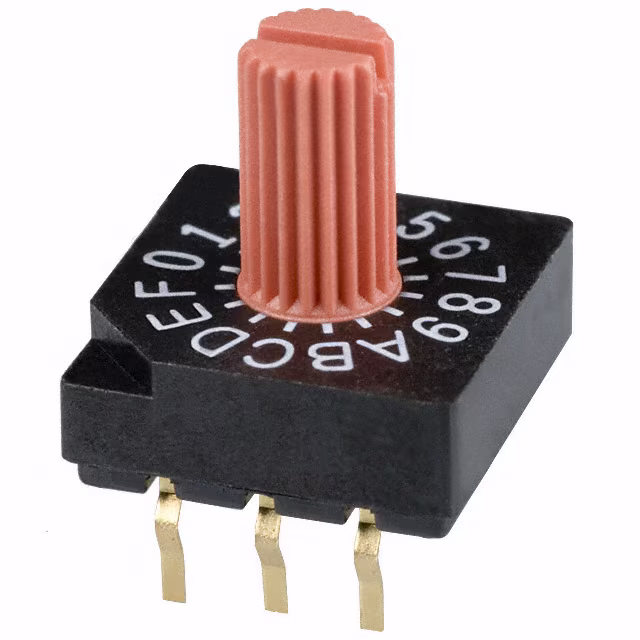

SD-1130SW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Таблицы данных |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

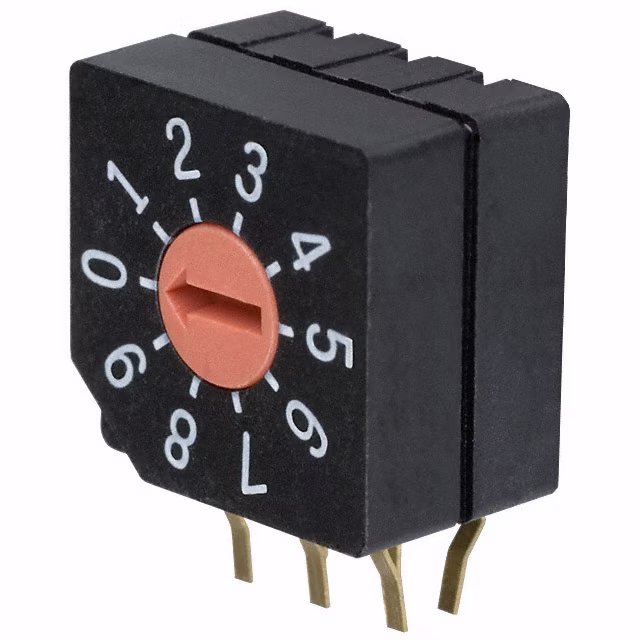

SD-2031SW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Таблицы данных |
SD-2000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

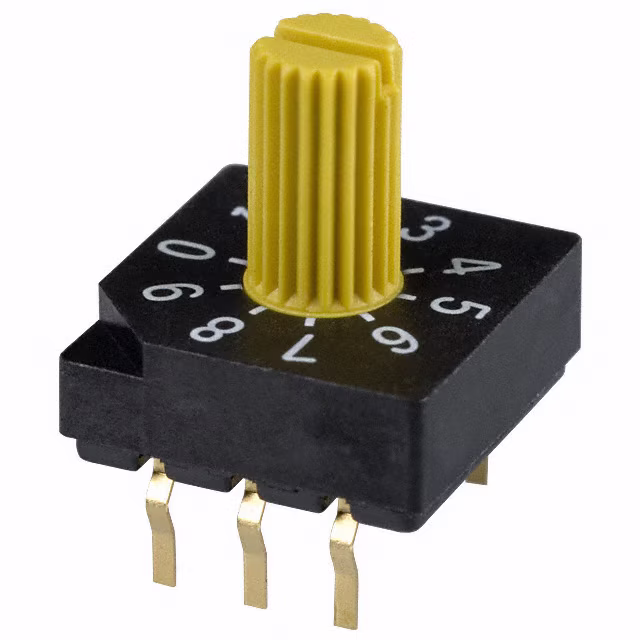

SD-2110SWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Таблицы данных |
SD-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

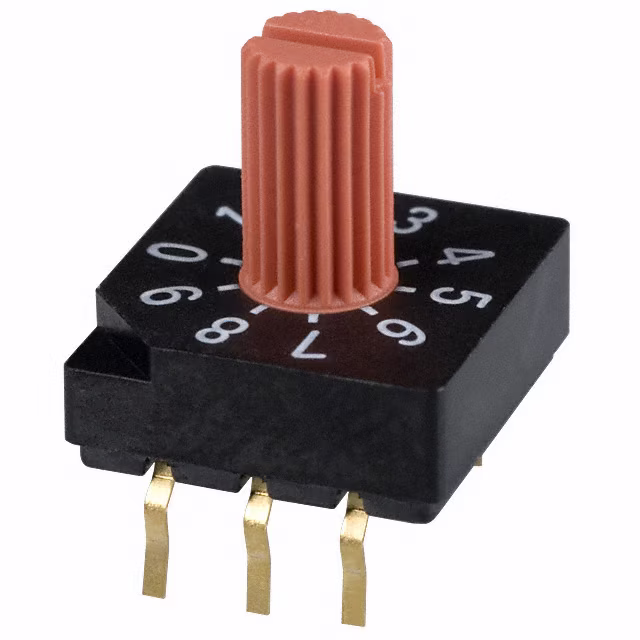

SD-2130SW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Таблицы данных |
SD-2000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SD-1231SW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Таблицы данных |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CHS-08MBSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
- |
CHS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
RTF16C3ASW ROTARY DIP HEX COMP 0.1A 5VDC |
0 |
|
Таблицы данных |
RTF | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
RTF16R1ASWITCH ROTARY DIP HEX 100MA 5VDC |
0 |
|
Таблицы данных |
RTF | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
RTF16C1ASW ROTARY DIP HEX COMP 0.1A 5VDC |
0 |
|
Таблицы данных |
RTF | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
GDH06SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
GDH | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
TDP10H0SBD1SWITCH PIANO DIP SPST 25MA 24VDC |
0 |
|
Таблицы данных |
TDP | Bulk | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.164" (4.17mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

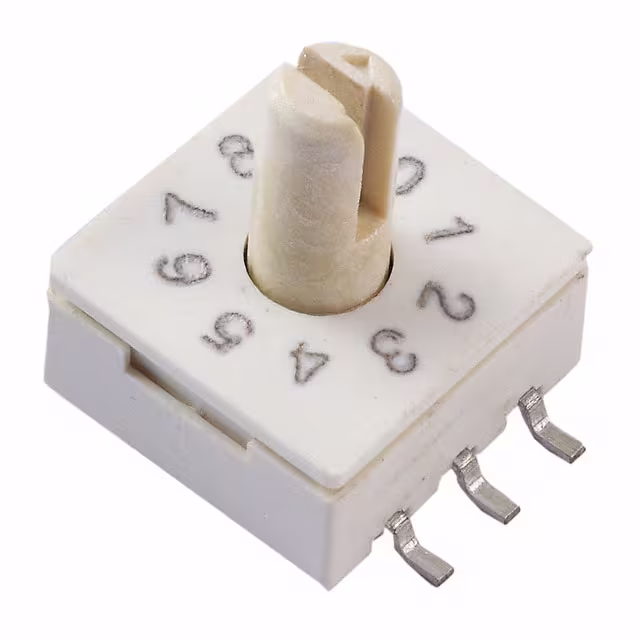

221AMC10RSWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
Таблицы данных |
221 | Tape & Reel (TR) | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.470" (11.94mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
