БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6H-8102-PSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
9,754 |
|
Таблицы данных |
A6H | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|

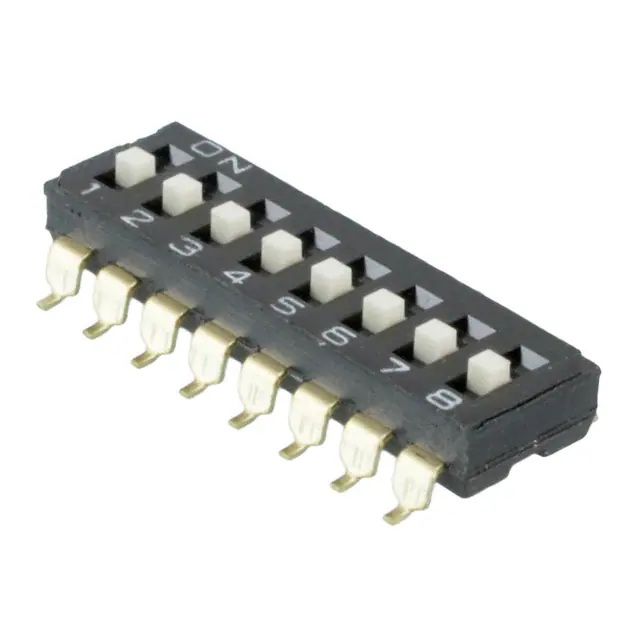

A6S-8104-PHSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,652 |
|
Таблицы данных |
A6S-H | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

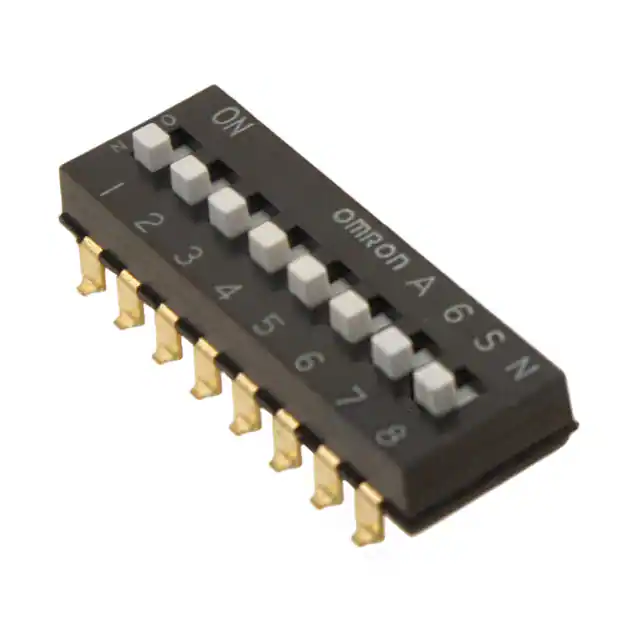

A6SN-8104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
6,044 |
|
Таблицы данных |
A6SN | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6RS-102RS-PSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
681 |
|
Таблицы данных |
A6RS | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
A6RS-162RFSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
3,664 |
|
Таблицы данных |
A6RS | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.185" (4.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
A6D-8103SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
306 |
|
Таблицы данных |
A6D | Tube | Active | SPST | 8 | 30mA | 30VDC | Slide (Standard) | Raised | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

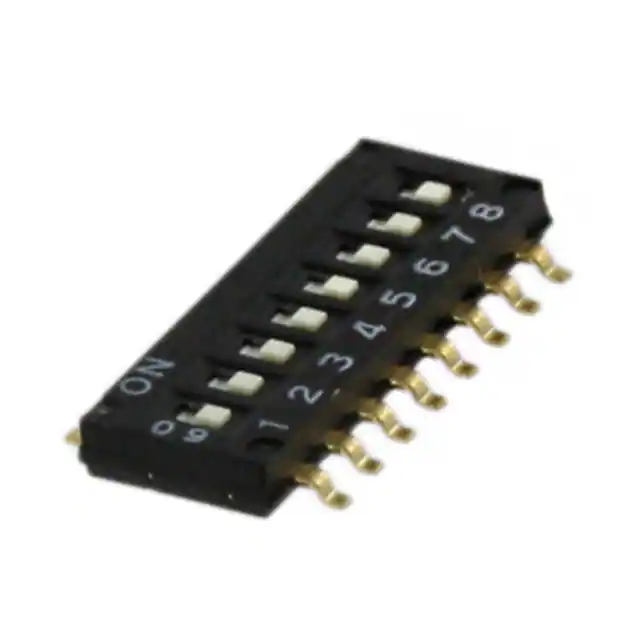

A6H-8102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
391 |
|
Таблицы данных |
A6H | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|

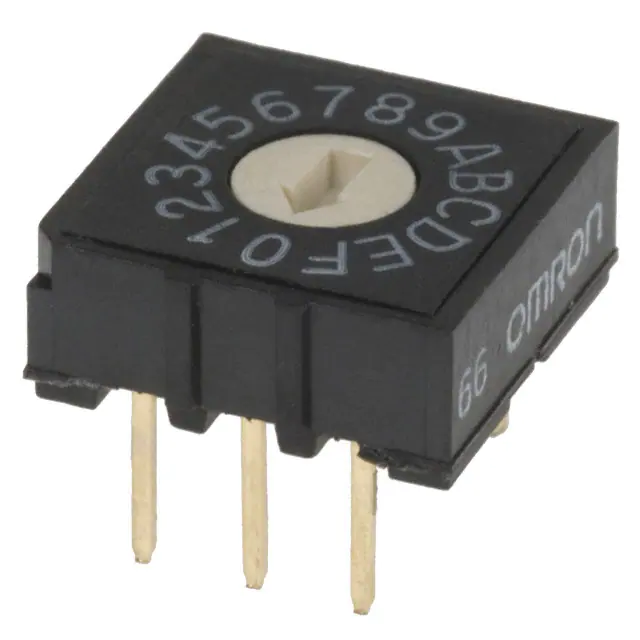

A6R-162RFSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
1,548 |
|
Таблицы данных |
A6R | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|

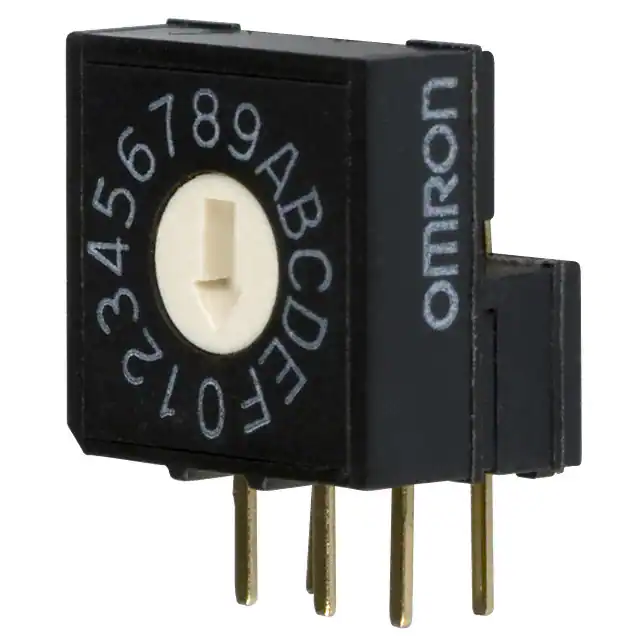

A6RV-162RFSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
779 |
|
Таблицы данных |
A6RV | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|

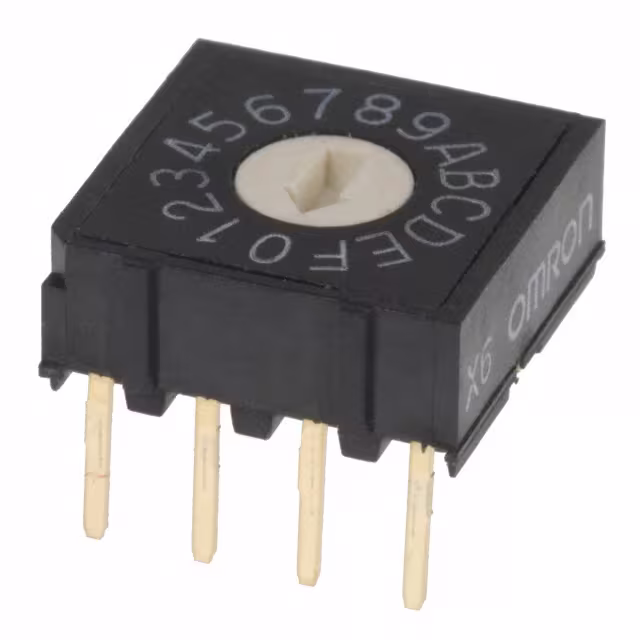

A6R-161RFSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
240 |
|
Таблицы данных |
A6R | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
