БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6TN-1101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
45 |
|
Таблицы данных |
A6TN | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6T-3101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
85 |
|
Таблицы данных |
A6T | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6T-4101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
71 |
|
Таблицы данных |
A6T | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6FR-7104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
81 |
|
Таблицы данных |
A6FR | Tube | Active | SPST | 7 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6TN-6101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
85 |
|
Таблицы данных |
A6TN | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
A6FR-9104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
94 |
|
Таблицы данных |
A6FR | Tube | Active | SPST | 9 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6FR-0101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
60 |
|
Таблицы данных |
A6FR | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

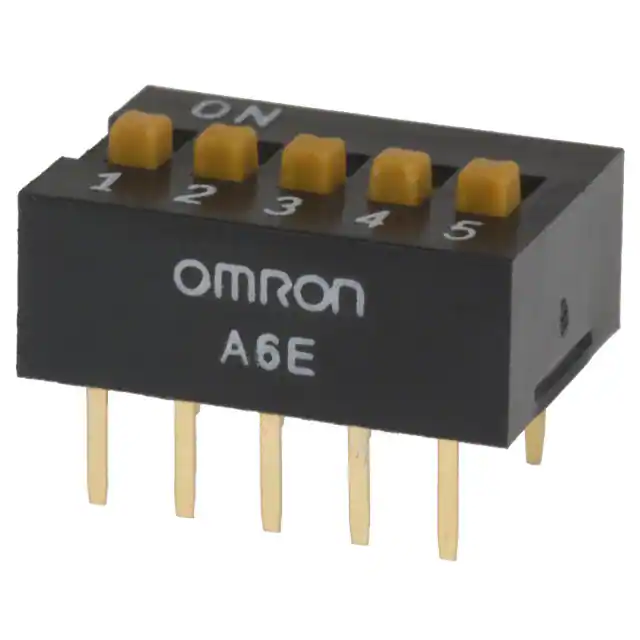

A6E-5104-NSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
68 |
|
Таблицы данных |
A6E-N | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6SN-2101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
67 |
|
Таблицы данных |
A6SN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

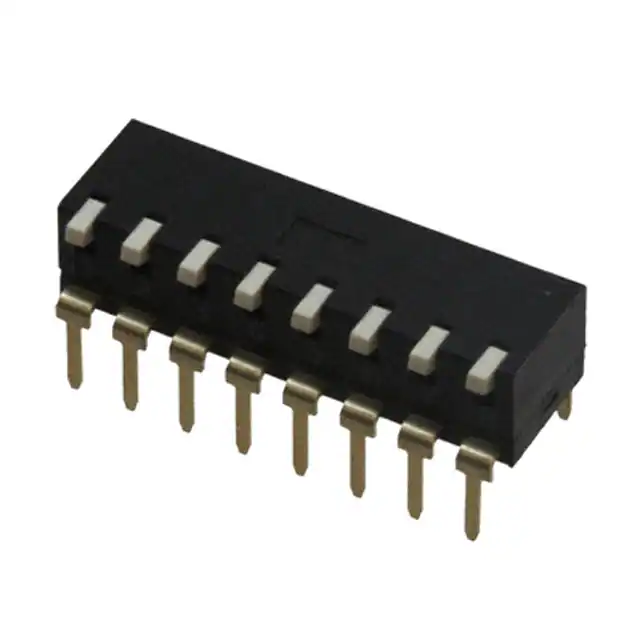

A6TR-8104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
70 |
|
Таблицы данных |
A6TR | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
