БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6D-2100SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
133 |
|
Таблицы данных |
A6D | Tube | Active | SPST | 2 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

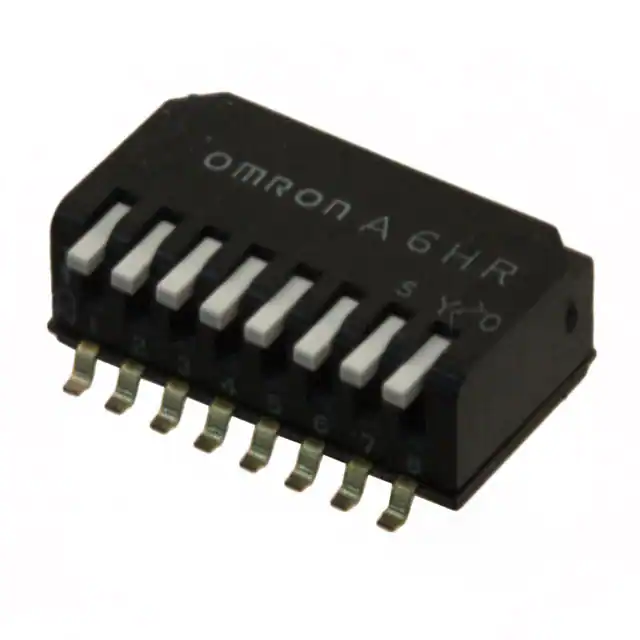

A6HR-8104-PSWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,768 |
|
Таблицы данных |
A6HR | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
A6D-7100SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
108 |
|
Таблицы данных |
A6D | Tube | Active | SPST | 7 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

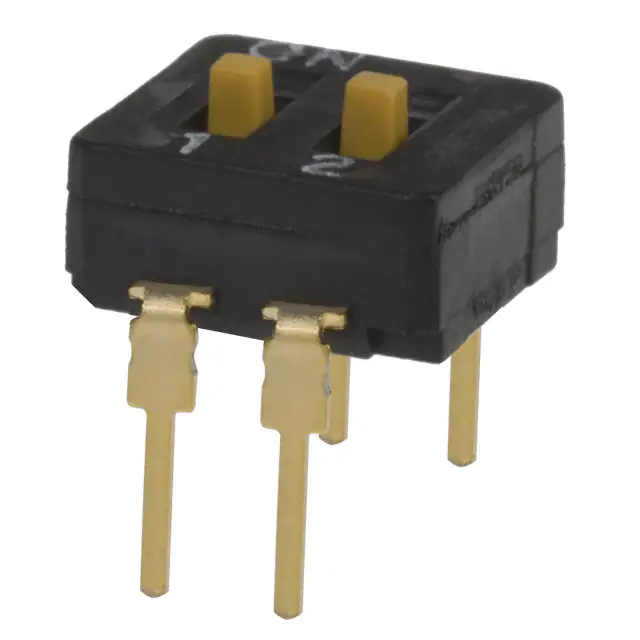

A6D-2103SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
582 |
|
Таблицы данных |
A6D | Tube | Active | SPST | 2 | 30mA | 30VDC | Slide (Standard) | Raised | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

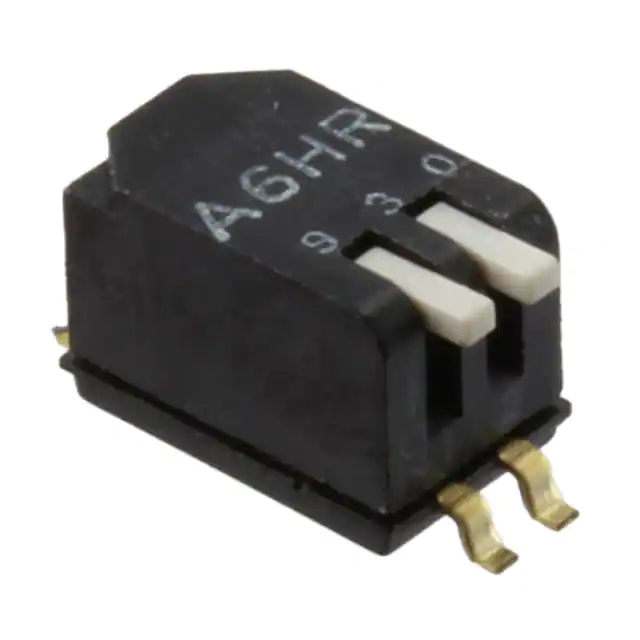

A6HR-2104-PMSWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
472 |
|
Таблицы данных |
A6HR | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|

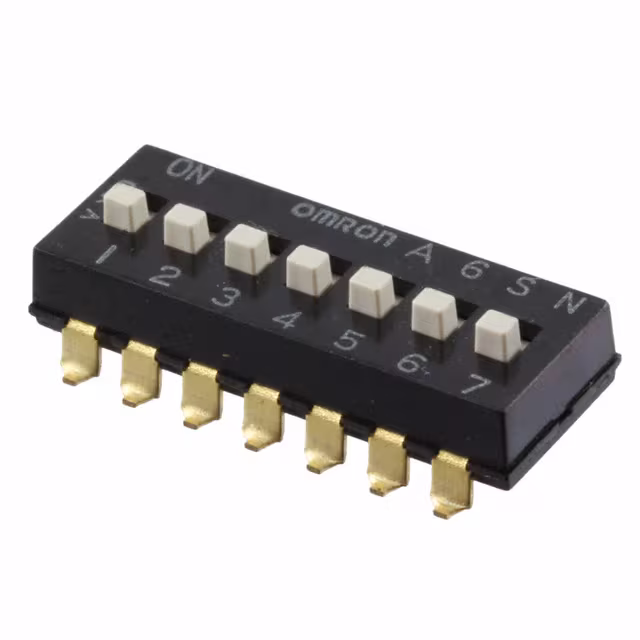

A6SN-7104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
129 |
|
Таблицы данных |
A6SN | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

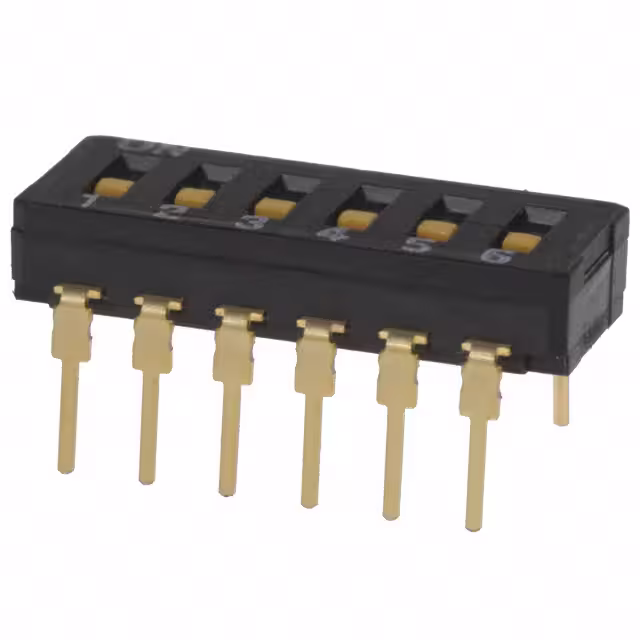

A6D-6100SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
119 |
|
Таблицы данных |
A6D | Tube | Active | SPST | 6 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

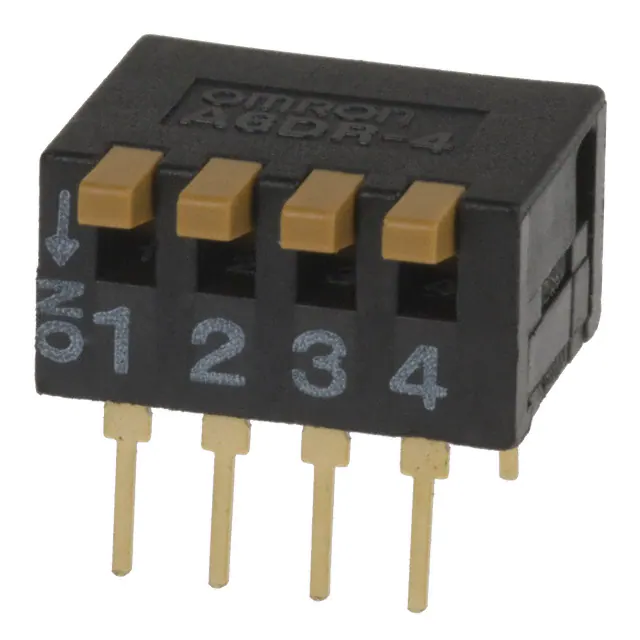

A6DR-4100SWITCH PIANO DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
798 |
|
Таблицы данных |
A6DR | Tube | Active | SPST | 4 | 30mA | 30VDC | Piano | Raised | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

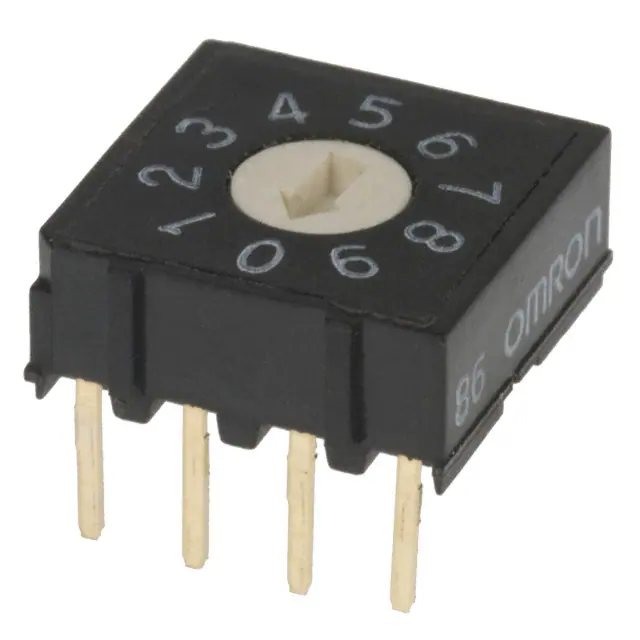

A6R-101RFSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
255 |
|
Таблицы данных |
A6R | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|
A6HF-0102-PMSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
133 |
|
Таблицы данных |
A6HF | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
