БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
428427320911SW ROTARY DIP BCD COMP 0.15A 24V Würth Elektronik |
45 |
|
Таблицы данных |
WS-ROTU | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
429427520910SWITCH ROTARY DIP BCD 0.15A 24V Würth Elektronik |
50 |
|
Таблицы данных |
WS-ROTU | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

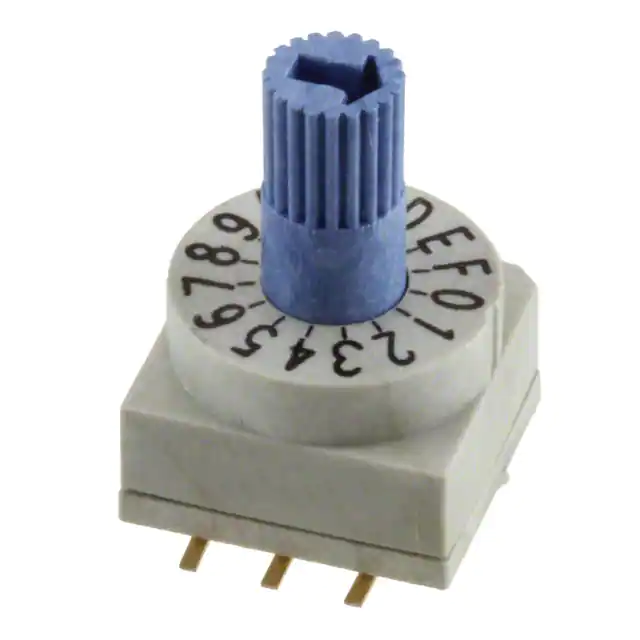

428521420917SW ROTARY DIP HEX COMP 0.15A 24V Würth Elektronik |
39 |
|
Таблицы данных |
WS-ROSV | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

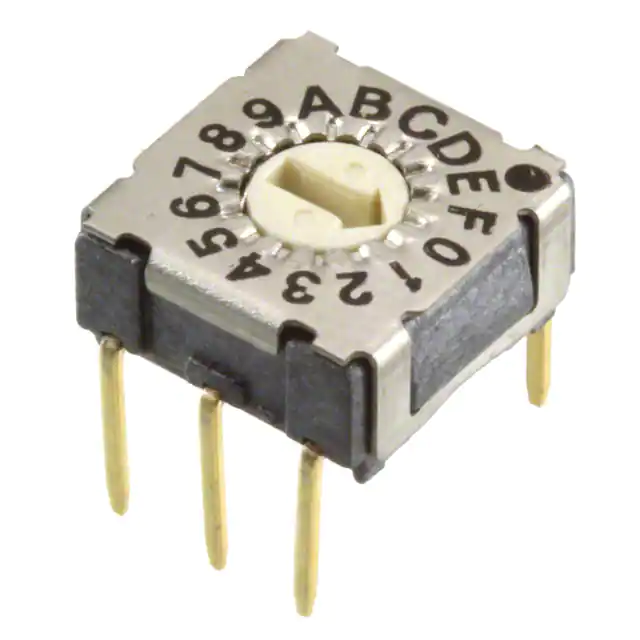

428547320917SW ROTARY DIP HEX COMP 0.1A 42V Würth Elektronik |
70 |
|
Таблицы данных |
WS-ROTV | Tube | Active | Hexadecimal Complement | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

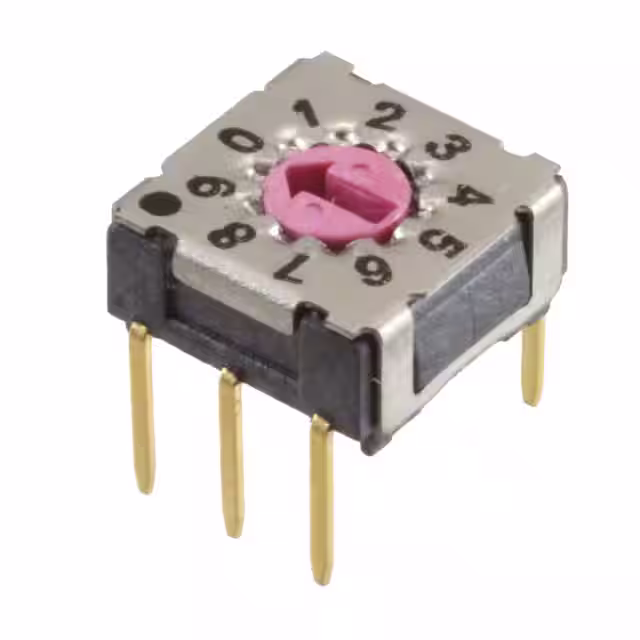

428547320910SWITCH ROTARY DIP BCD 0.1A 42V Würth Elektronik |
54 |
|
Таблицы данных |
WS-ROTV | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428427520911SW ROTARY DIP BCD COMP 0.15A 24V Würth Elektronik |
100 |
|
Таблицы данных |
WS-ROTU | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
429427320916SWITCH ROTARY DIP HEX 0.15A 24V Würth Elektronik |
90 |
|
Таблицы данных |
WS-ROTU | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|

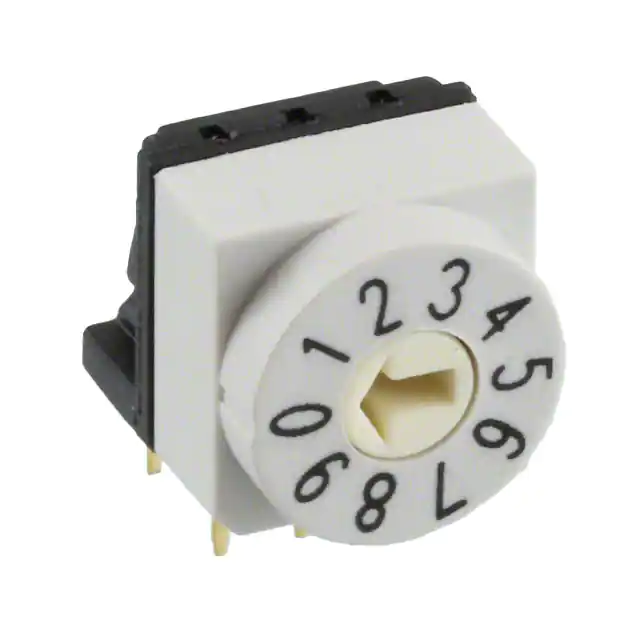

429427320911SW ROTARY DIP BCD COMP 0.15A 24V Würth Elektronik |
86 |
|
Таблицы данных |
WS-ROTU | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

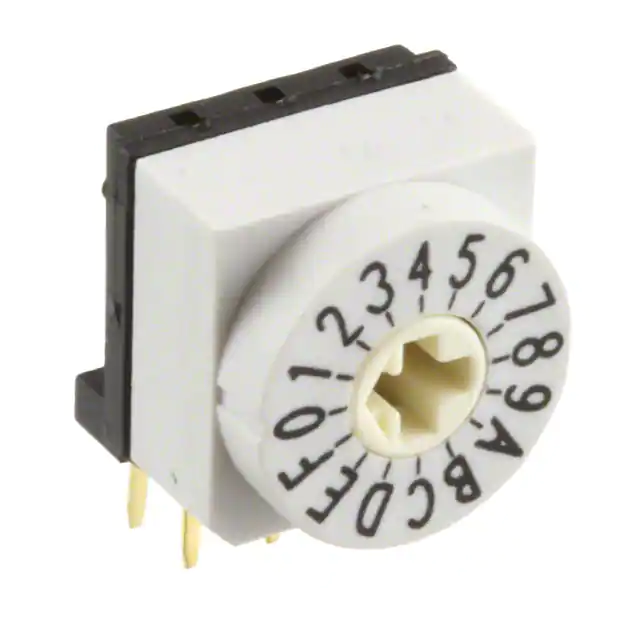

428427520917SW ROTARY DIP HEX COMP 0.15A 24V Würth Elektronik |
68 |
|
Таблицы данных |
WS-ROTU | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

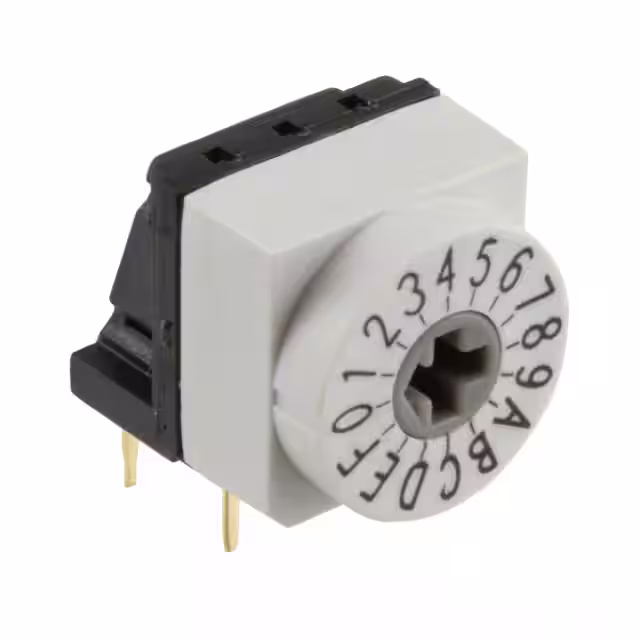

429427520916SWITCH ROTARY DIP HEX 0.15A 24V Würth Elektronik |
57 |
|
Таблицы данных |
WS-ROTU | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
