БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMR02TSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
747 |
|
Таблицы данных |
DM | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

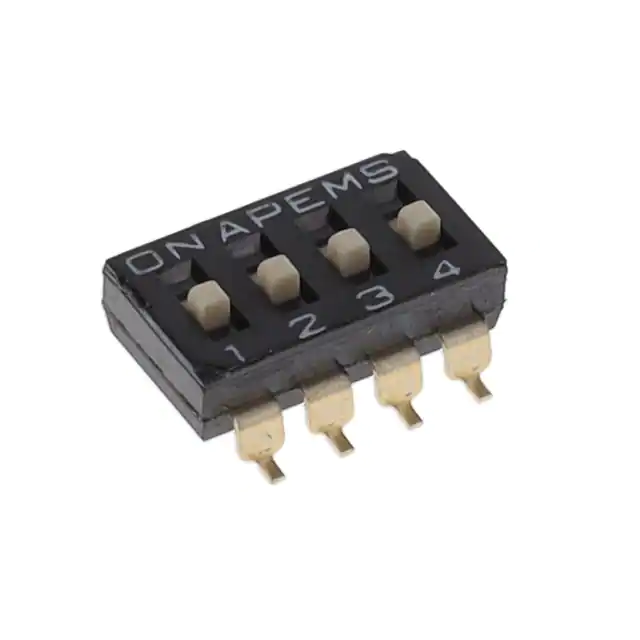

DM04SWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
1,625 |
|
Таблицы данных |
DM | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

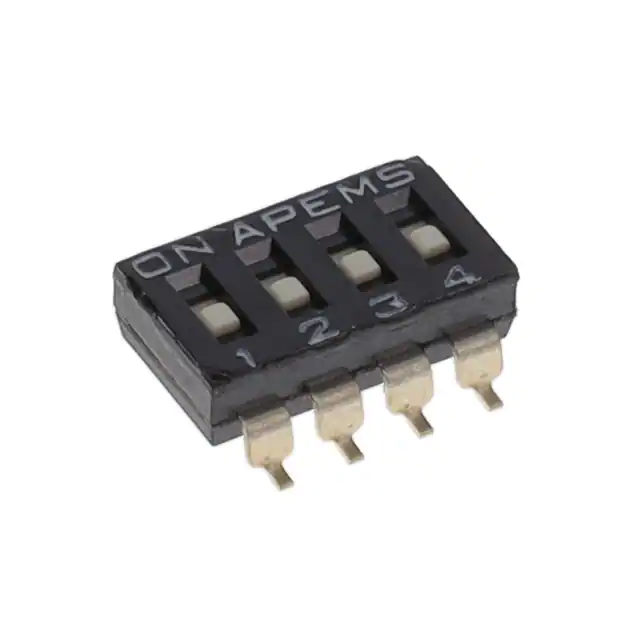

DMR04TSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
544 |
|
Таблицы данных |
DM | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

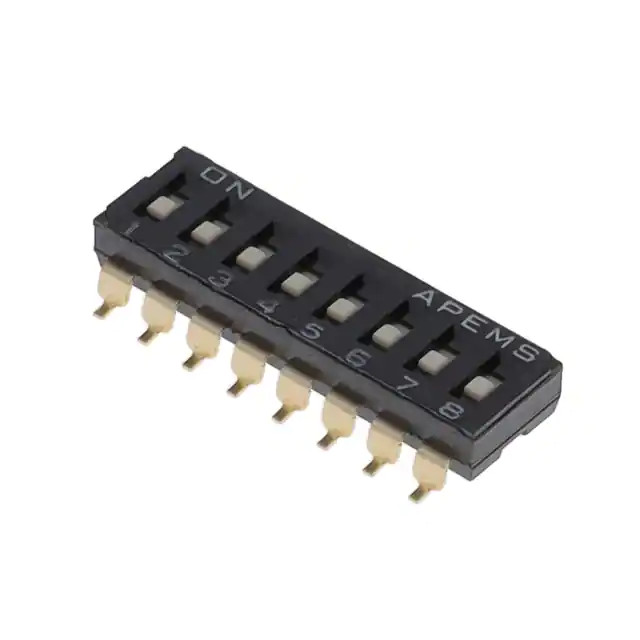

DMR08TTRSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
3,481 |
|
Таблицы данных |
DM | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
DM08SWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
3,080 |
|
Таблицы данных |
DM | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
DMR08TSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
932 |
|
Таблицы данных |
DM | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

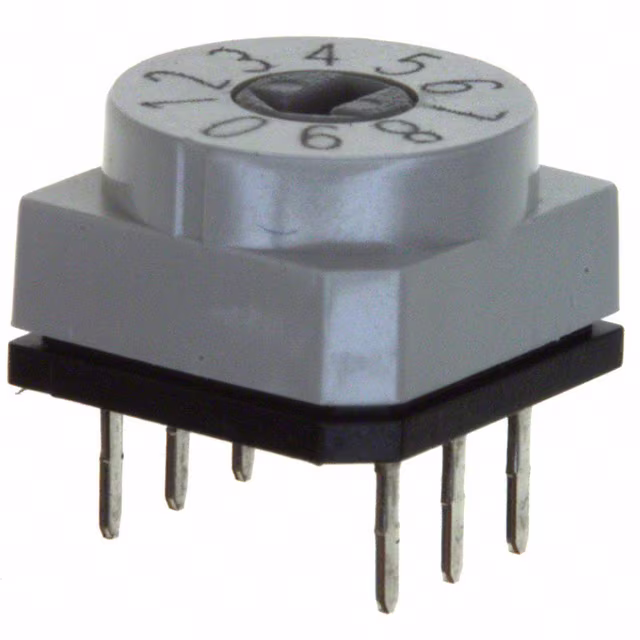

PT65102SW ROTARY DIP BCD COMP 0.15A 24V APEM Inc. |
6,876 |
|
Таблицы данных |
PT65 | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65126L508SW ROTARY DIP OCTAL 0.15A 24V APEM Inc. |
1,986 |
|
Таблицы данных |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

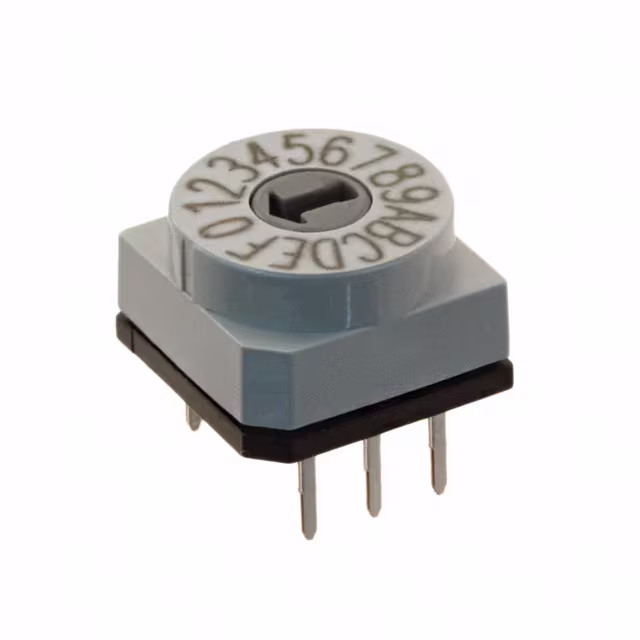

PT65106SW ROTARY DIP HEX COMP 0.15A 24V APEM Inc. |
2,861 |
|
Таблицы данных |
PT65 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

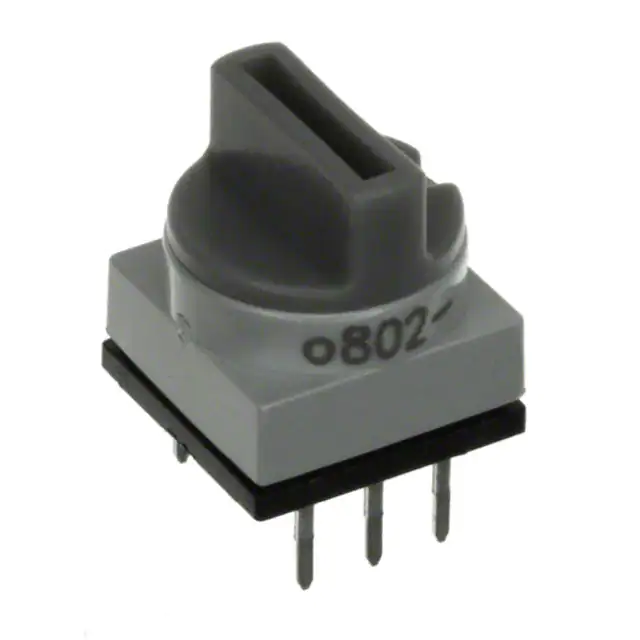

PT65521SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
818 |
|
Таблицы данных |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
