БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS02C-254-2L-03BESWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
DS02-254 | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAR02LGGRSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
KAR | Tape & Reel (TR) | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
208-2LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
208 | Tube | Active | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Tin | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
208-2STSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
208 | Tube | Active | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
210-7LPSSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

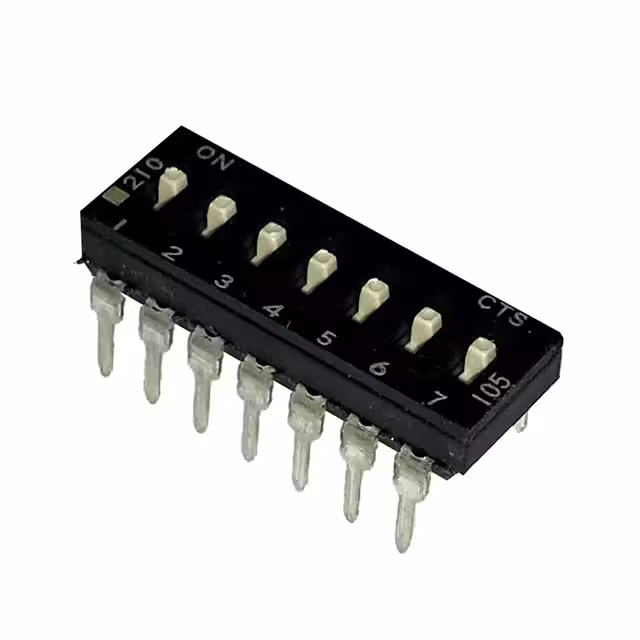

210-7MSSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-7ESSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-7LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

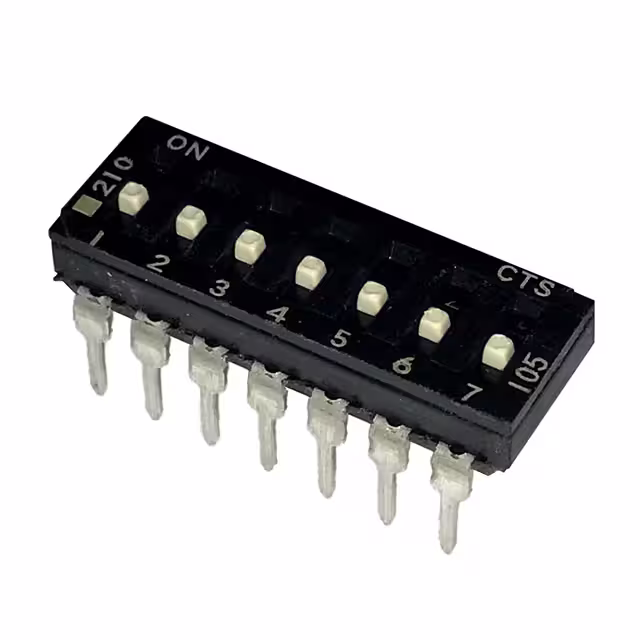

210-7MSFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-7ESFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-7LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

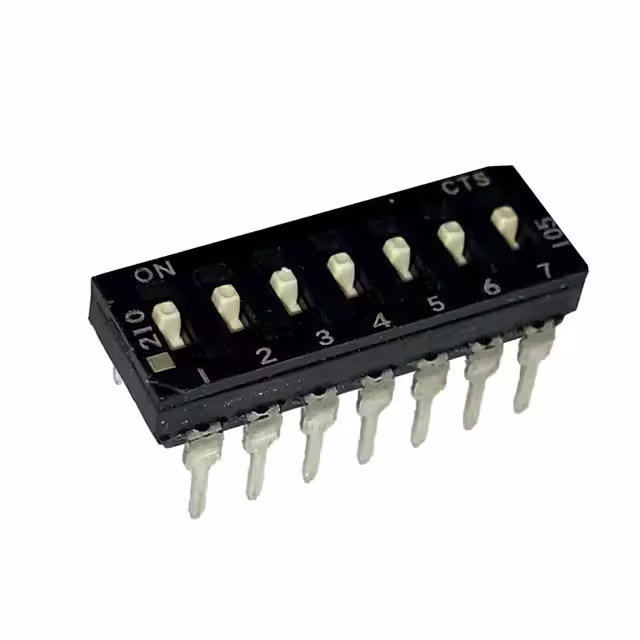

210-7MSDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-7ESDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-7LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

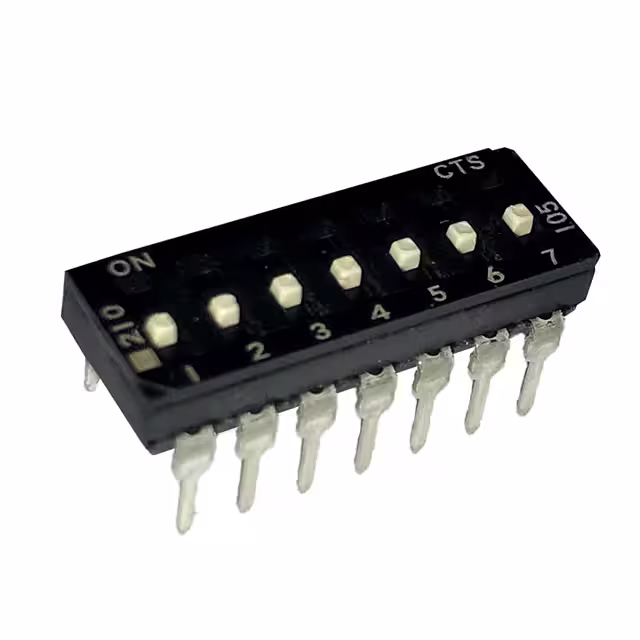

210-7MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-7ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
219-4LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
219-4LPSTOFFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-4MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-3MSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
