БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDS02SNRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
3 |
|
Таблицы данных |
EDS | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

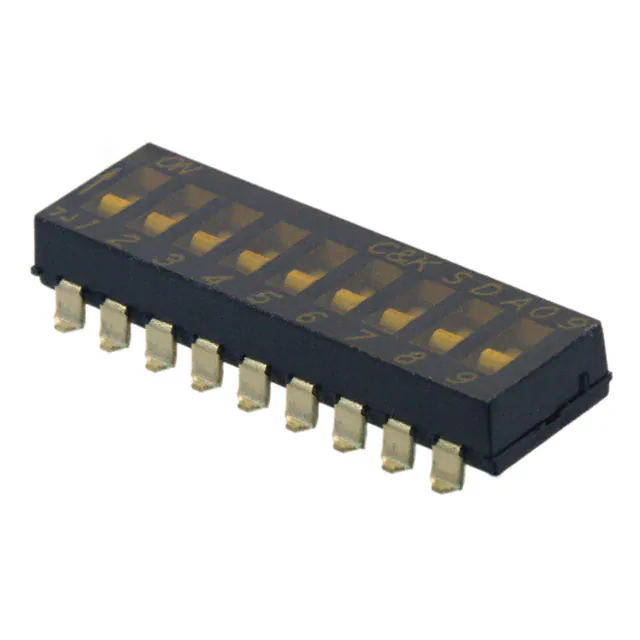

SDA09H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

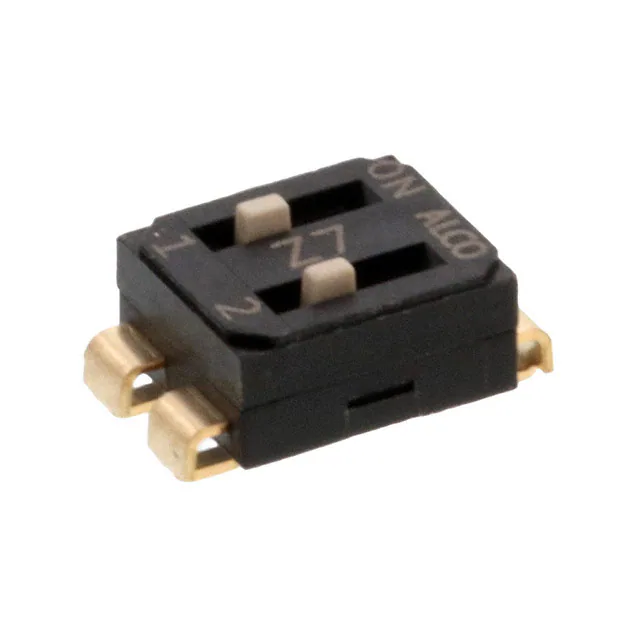

EDS02SNNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
EDS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
A6TN-0101SWITCH SLIDE DIP SPST 0.025A 24V |
15 |
|
Таблицы данных |
A6TN | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

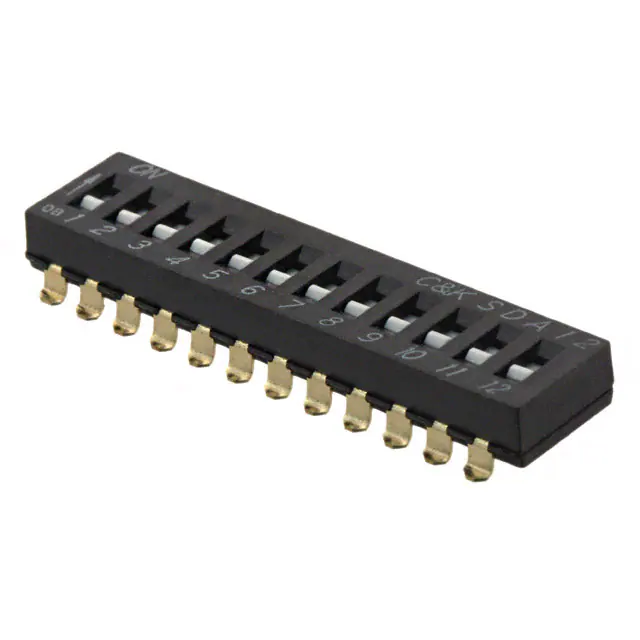

SDA12H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418127270910SWITCH SLIDE DIP SPST 0.025A 24V |
19 |
|
Таблицы данных |
WS-DITV | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

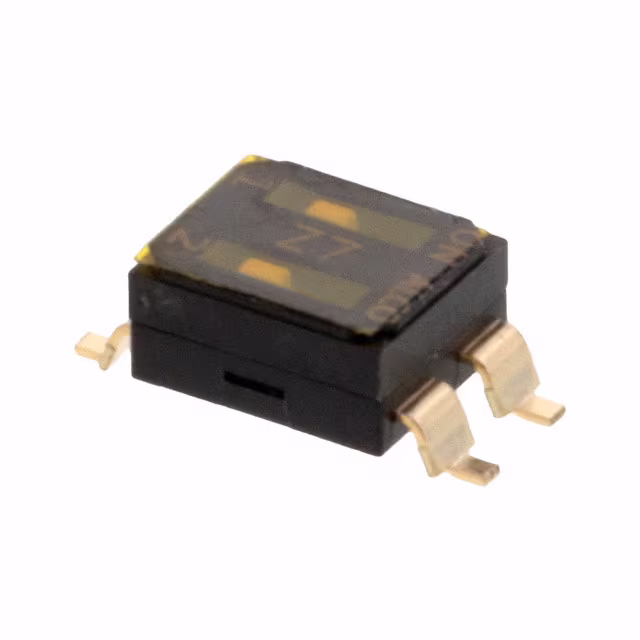

EDS02SGRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
9 |
|
Таблицы данных |
EDS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SD08H0SBDSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Таблицы данных |
SD | Tube | Active | SPST | 8 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.155" (3.94mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418127270912SWITCH SLIDE DIP SPST 0.025A 24V |
3 |
|
Таблицы данных |
WS-DITV | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418127160912SWITCH SLIDE DIP SPST 0.025A 24V |
16 |
|
Таблицы данных |
WS-DITV | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

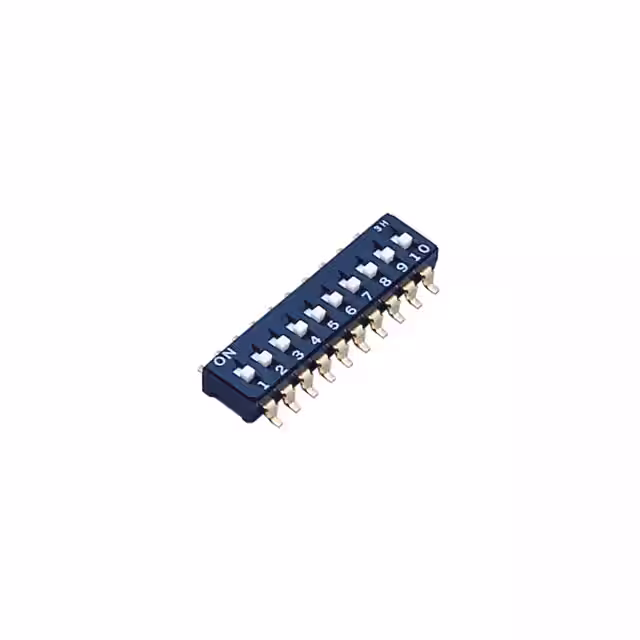

CFS-1002MBSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Таблицы данных |
CFS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SD04H0BDSWITCH SLIDE DIP SPST 0.1A 25V |
25 |
|
Таблицы данных |
SD | Tube | Active | SPST | 4 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.168" (4.27mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDA07H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
SDA | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6SR-0104SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
A6SR | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6E-3101-NSWITCH SLIDE DIP SPST 0.025A 24V |
7 |
|
Таблицы данных |
A6E-N | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

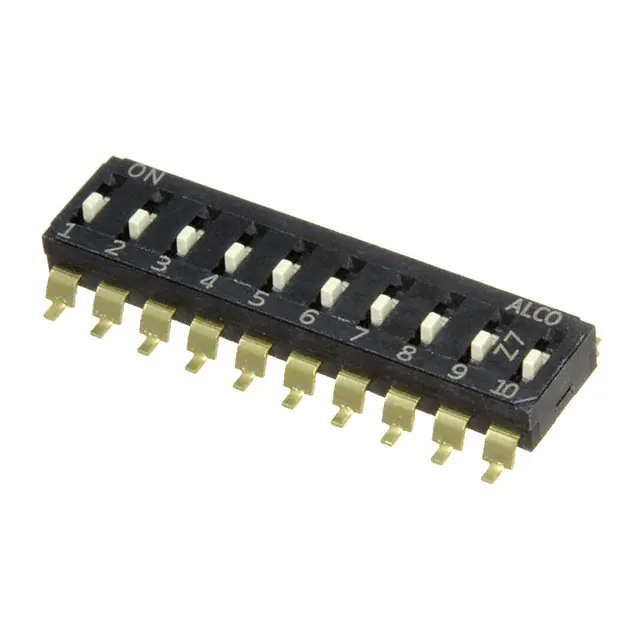

EDS10SGNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
EDS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
A6S-7101-HSWITCH SLIDE DIP SPST 0.025A 24V |
13 |
|
Таблицы данных |
A6S-H | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

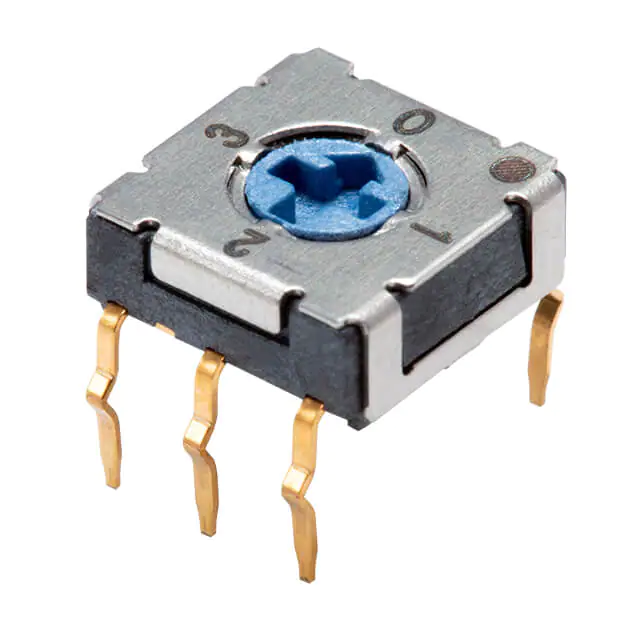

RDS-4S-7229-C-CRSWITCH ROTARY DIP BCD 0.1A 50V |
14 |
|
Таблицы данных |
RDS-7229-CR | Tube | Active | BCD | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

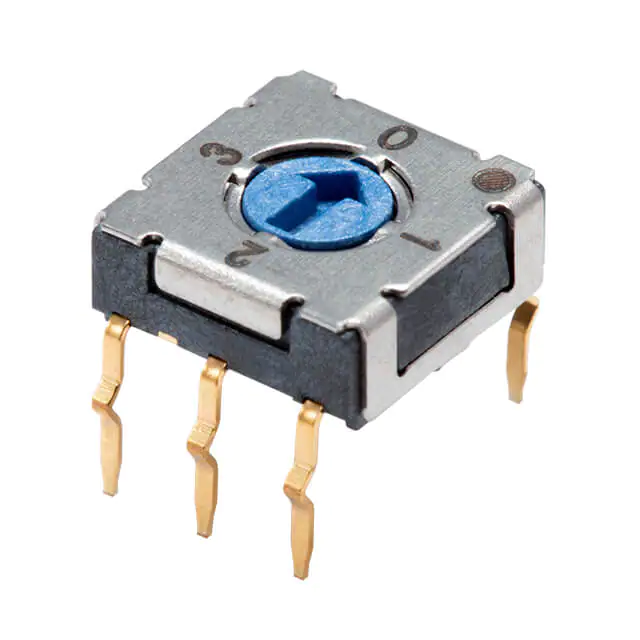

RDS-4S-7229-A-CRSWITCH ROTARY DIP BCD 0.1A 50V |
8 |
|
Таблицы данных |
RDS-7229-CR | Tube | Active | BCD | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
A6S-0101-HSWITCH SLIDE DIP SPST 0.025A 24V |
16 |
|
Таблицы данных |
A6S-H | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
