БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78RB12STSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
78 | Bulk | Active | SPST | 12 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
1825008-3SW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
Таблицы данных |
DRD | Bulk | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
76PRB06STSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
76 | Bulk | Active | SPST | 6 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
FR01KR10PSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Таблицы данных |
FR01 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR01FR16PSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Таблицы данных |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR01FR10PSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Таблицы данных |
FR01 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR01FC10PSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Таблицы данных |
FR01 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR01KC16PSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Таблицы данных |
FR01 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

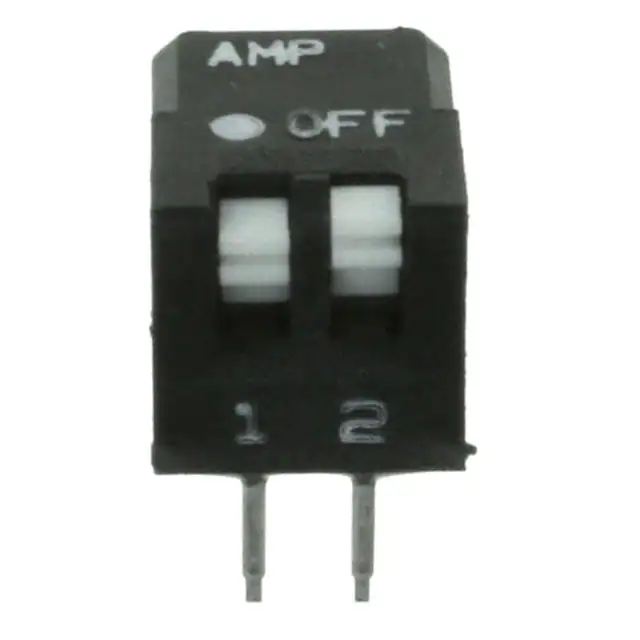

1-5435802-0SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
7000 | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
76SD02STSWITCH ROCKER DIP DPDT 0.15A 30V |
0 |
|
Таблицы данных |
76 | Bulk | Active | DPDT | 2 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
1825007-1SW ROTARY DIP BCD COMP 0.4VA 20V |
7 |
|
Таблицы данных |
DRD | Bulk | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

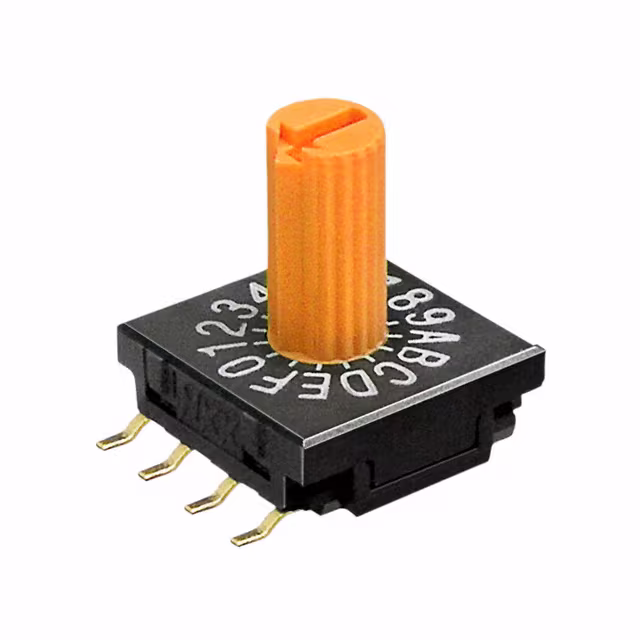

FR02KR16PSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Таблицы данных |
FR02 | Tray | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
1825008-6SWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Таблицы данных |
DR | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
FR01FR10HSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Таблицы данных |
FR01 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR01KR10HSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Таблицы данных |
FR01 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
1-1825008-4SWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Таблицы данных |
DR | Bulk | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
FR01FR16H-06XL-WSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Таблицы данных |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
76RSD02STSWITCH ROCKER DIP DPDT 0.15A 30V |
0 |
|
Таблицы данных |
76 | Bulk | Active | DPDT | 2 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.267" (6.78mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
FR01FC16H-06XL-SSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Таблицы данных |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
JS0404FP4-SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
JS | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
