Цифровые изоляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Тип | Изолированное питание | Количество каналов | Входы - Сторона 1/Сторона 2 | Тип канала | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Искажение ширины импульса (макс.) | Время нарастания/спада (тип.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

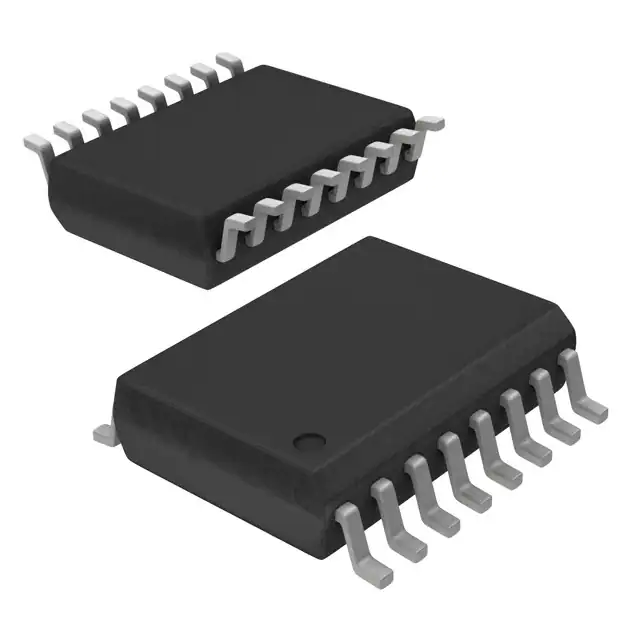

IL 3122EDGT ISO 2.5KV RS422/RS485 16SOIC NVE Corp/Isolation Products |
2,266 |
|
Таблицы данных |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 5Mbps | - | - | 12ns, 12ns | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
IL 710-3EDGTL ISO 2500VRMS 1CH GP 8SOIC NVE Corp/Isolation Products |
16,155 |
|
Таблицы данных |
IsoLoop® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
IL 610-3EDGTL ISO 2500VRMS 1CH GP 8SOIC NVE Corp/Isolation Products |
1,517 |
|
Таблицы данных |
IsoLoop® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 15kV/µs | 100Mbps | 15ns, 15ns | 5ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
IL 41050TA-3EDGT ISOL 2500VRMS 2CH CAN 16SOIC NVE Corp/Isolation Products |
2,021 |
|
Таблицы данных |
IsoLoop® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | CAN | No | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 1Mbps | - | - | - | 3V ~ 5.5V, 4.75V ~ 5.25V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
IL 41050TAEDGT ISOL 2500VRMS 2CH CAN 16SOIC NVE Corp/Isolation Products |
741 |
|
Таблицы данных |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | CAN | No | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 1Mbps | - | - | - | 3V ~ 5.5V, 4.75V ~ 5.25V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
IL 3085-3EDGT ISO 2.5KV RS422/RS485 16SOIC NVE Corp/Isolation Products |
910 |
|
Таблицы данных |
IsoLoop® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 30kV/µs | 4Mbps | 150ns, 150ns | - | - | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
IL 41050TA-1EDGT ISOL 2500VRMS 2CH CAN 16QSOP NVE Corp/Isolation Products |
1,635 |
|
Таблицы данных |
IsoLoop® | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | CAN | No | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 1Mbps | - | - | - | 3V ~ 5.5V, 4.75V ~ 5.25V | - | - | -55°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
IL 712S-3EDGTL ISO 2500VRMS 2CH GP 8SOIC NVE Corp/Isolation Products |
13,043 |
|
Таблицы данных |
IsoLoop® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 100kV/µs | 150Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
IL 611-1ETR7DGTL ISO 2500VRMS 2CH GP 8MSOP NVE Corp/Isolation Products |
1,541 |
|
Таблицы данных |
IL600 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | CAN, I2C, RS232, RS422, RS485, SPI | No | 2 | 2/0 | Unidirectional | 2500Vrms | 15kV/µs | 40Mbps | 25ns, 25ns | 10ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-MSOP |
|
|
IL 3085EDGT ISO 2.5KV RS422/RS485 16SOIC NVE Corp/Isolation Products |
1,466 |
|
Таблицы данных |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 30kV/µs | 4Mbps | 150ns, 150ns | - | - | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
