БОМ
Цифровые изоляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Тип | Изолированное питание | Количество каналов | Входы - Сторона 1/Сторона 2 | Тип канала | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Искажение ширины импульса (макс.) | Время нарастания/спада (тип.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

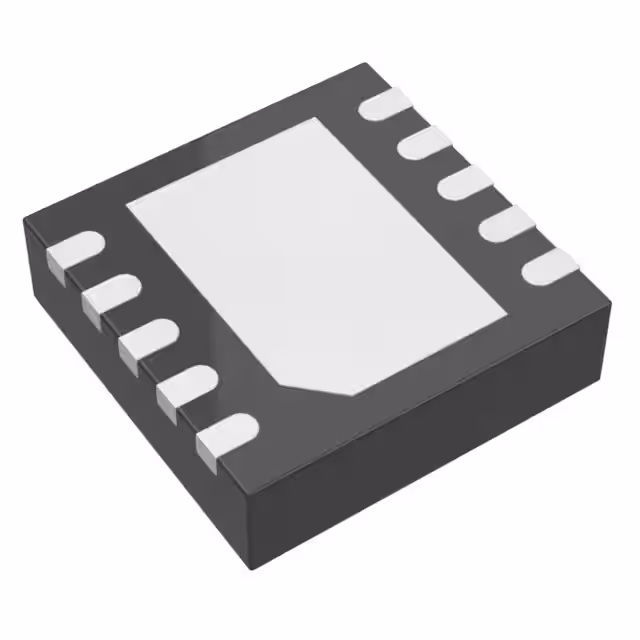

LTC4310IDD-2#TRPBFDIGITAL ISOLATOR 2CH I2C 10DFN Analog Devices Inc. |
0 |
|
Таблицы данных |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Magnetic Coupling | I2C | No | 2 | 1/1 | Unidirectional | - | 20kV/µs | 400kHz | - | - | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 10-DFN (3x3) |
|
LTC4310IMS-1#TRPBFDIGITAL ISOLATOR 2CH I2C 10MSOP Analog Devices Inc. |
0 |
|
Таблицы данных |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | I2C | No | 2 | 1/1 | Unidirectional | - | 20kV/µs | 100kHz | - | - | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 10-MSOP |
|
|
LTC4310IMS-2#TRPBFDIGITAL ISOLATOR 2CH I2C 10MSOP Analog Devices Inc. |
0 |
|
Таблицы данных |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | I2C | No | 2 | 1/1 | Unidirectional | - | 20kV/µs | 400kHz | - | - | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 10-MSOP |
|
ADBMS6821CCSZ-RLSINGLE ISOSPI TRANSCEIVER FOR BR Analog Devices Inc. |
0 |
|
- |
- | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Capacitive Coupling | SPI | No | 1 | 1/0 | Bidirectional | - | - | 2Mbps | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 32-QFN (5x5) |
|
ADUM2211TRWZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC Analog Devices Inc. |
0 |
|
Таблицы данных |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ADUM2211TRIZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC Analog Devices Inc. |
0 |
|
Таблицы данных |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM2210TRIZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC Analog Devices Inc. |
0 |
|
Таблицы данных |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM250N1BRIZ-RLDGTL ISO 5000VRMS 5CH GP 16SOIC Analog Devices Inc. |
0 |
|
Таблицы данных |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 5 | 5/0 | Unidirectional | 5000Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM2280CRIZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC Analog Devices Inc. |
0 |
|
Таблицы данных |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM2281CRIZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC Analog Devices Inc. |
0 |
|
Таблицы данных |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC-IC |
