Контроллеры сенсорных экранов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Корпус/корпус | Сенсорный экран | Разрешение (бит) | Интерфейс | Опорное напряжение | Напряжение - Питание | Ток - Питание | Рабочая температура | Тип крепления | Марка | Квалификация | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADS7843EIC SCREEN CNTRL 12BIT 16SSOP Texas Instruments |
1,319 |
|
Таблицы данных |
16-SSOP (0.154", 3.90mm Width) | 4 Wire Resistive | 12 b | Serial | External | 2.7V ~ 5V | 2.5 µA | -40°C ~ 85°C | Surface Mount | - | - | 16-SSOP |
|
ADS7846N/2K5IC SCREEN CNTRL 12BIT 16TSSOP Texas Instruments |
4,108 |
|
Таблицы данных |
16-TSSOP (0.173", 4.40mm Width) | 4 Wire Resistive | 12 b | SPI | External, Internal | 2.2V ~ 5.25V | 500 µA | -40°C ~ 85°C | Surface Mount | - | - | 16-TSSOP |
|
|
ADS7846E/2K5IC SCREEN CNTRL 12BIT 16SSOP Texas Instruments |
2,062 |
|
Таблицы данных |
16-SSOP (0.154", 3.90mm Width) | 4 Wire Resistive | 12 b | SPI | External, Internal | 2.2V ~ 5.25V | 500 µA | -40°C ~ 85°C | Surface Mount | - | - | 16-SSOP |
|
TSC2004IRTJTIC SCREEN CNTRL 12BIT 20QFN Texas Instruments |
880 |
|
Таблицы данных |
20-WFQFN Exposed Pad | 4 Wire Resistive | 12 b | I2C, Serial | External | 1.2V ~ 3.6V | 797 µA | -40°C ~ 85°C | Surface Mount | - | - | 20-QFN (4x4) |
|
TSC2200IPWIC SCREEN CNTRL 12BIT 28TSSOP Texas Instruments |
1,176 |
|
Таблицы данных |
28-TSSOP (0.173", 4.40mm Width) | 4 Wire Resistive | 12 b | SPI | External, Internal | 2.7V ~ 3.6V | 1.25 mA | -40°C ~ 85°C | Surface Mount | - | - | 28-TSSOP |
|
TSC2046EIRGVRIC SCREEN CNTRL 12BIT 16FN Texas Instruments |
6,080 |
|
Таблицы данных |
16-VFQFN Exposed Pad | 4 Wire Resistive | 12 b | SPI | Internal | 2.2V ~ 5.25V | 780 µA | -40°C ~ 85°C | Surface Mount | - | - | 16-VQFN (4x3.5) |
.jpg)
|
TSC2046EIRGVTIC SCREEN CNTRL 12BIT 16FN Texas Instruments |
548 |
|
Таблицы данных |
16-VQFN Exposed Pad | 4 Wire Resistive | 12 b | SPI | Internal | 2.2V ~ 5.25V | 780 µA | -40°C ~ 85°C | Surface Mount | - | - | 16-VQFN (4x4) |
|

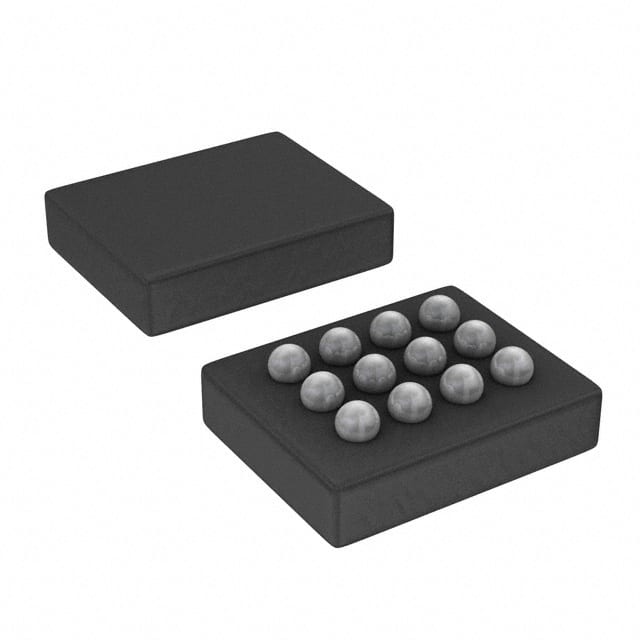

TSC2007IYZGRIC SCREEN CNTRL 12BIT 12DSBGA Texas Instruments |
2,332 |
|
Таблицы данных |
12-UFBGA, DSBGA | 4 Wire Resistive | 12 b | I2C, Serial | External | 1.2V ~ 3.6V | 226.2 µA | -40°C ~ 85°C | Surface Mount | - | - | 12-DSBGA |
|
|
ADS7843E/2K5IC SCREEN CNTRL 12BIT 16SSOP Texas Instruments |
5,715 |
|
Таблицы данных |
16-SSOP (0.154", 3.90mm Width) | 4 Wire Resistive | 12 b | Serial | External | 2.7V ~ 5V | 2.5 µA | -40°C ~ 85°C | Surface Mount | - | - | 16-SSOP |
|
|
TSC2046IRGVTIC SCREEN CNTRL 12BIT 16FN Texas Instruments |
753 |
|
Таблицы данных |
16-VQFN Exposed Pad | 4 Wire Resistive | 12 b | SPI | Internal | 2.2V ~ 5.25V | 780 µA | -40°C ~ 85°C | Surface Mount | - | - | 16-VQFN (4x4) |
