Сбор данных (DAQ)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Функция | Тип | Подключение шины | Переднее подключение | Количество входов и тип | Входной диапазон | Разрешение входа | Количество выходов и тип | Диапазон выхода | Разрешение выхода | Двунаправленные каналы | Счетчик/таймеры | Частота выборки (в секунду) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
780877-01DAQ DEVICE ANALOG INPUT |
0 |
|
- |
C | Box | Active | Temperature | Module | - | Screw Terminal | 4 - Analog | ±80mV | - | - | - | - | - | - | 14 - Multiplexed |
|
|
781212-01DAQ DEVICE DIGITAL INPUT |
0 |
|
- |
C | Box | Active | Digital I/O | Module | - | - | 32 - Digital | 24V | - | 32 - Digital | 24V | - | 32 | - | - |
|
|
780921-01DAQ DEVICE DIGITAL OUTPUT |
0 |
|
- |
C | Box | Active | Digital Output | Module | - | - | - | - | - | 4 - Digital | - | - | - | - | - |
|
|
6069-410-005DATALOGGER MULTIFUNC I/O USB 2.0 |
0 |
|
- |
WebDAQ 316 | Box | Obsolete | Multifunction I/O | Datalogger | RJ45, USB 2.0 (2) | Screw Terminal | 16 - Analog, 4 - Digital | ±78.125mV | 24 Bits | 4 - Digital | 0 ~ 15V | 4 Bits | 4 | - | 75 - Simultaneous |
|
779005-02DAQ DEVICE DIGITAL INPUT PCIE |
0 |
|
Таблицы данных |
C | Box | Active | Digital Input | DAQ Device | PCIe | - | 6 - Digital | 5 ~ 24V | - | - | - | - | - | - | - |
|
|
781114-01DAQ DEVICE DIGITAL INPUT |
0 |
|
- |
C | Box | Active | Voltage | Module | - | - | 8 - Analog | ±10V | 12 Bits | - | - | - | - | - | 500k - Multiplexed |
|
|
780539-01MODULE DIGITAL I/O |
0 |
|
- |
C | Box | Active | Digital I/O | Module | - | - | 32 - Digital | 5V | - | 32 - Digital | - | - | 32 | - | - |
|
781955-01DAQ DEVICE ANALOG INPUT |
0 |
|
- |
C | Box | Obsolete | Digital I/O | Module | - | RJ45 | 12 - Digital (Differential) | - | - | 12 - Digital (Differential) | - | - | 12 | - | - |
|
|
780876-01DAQ DEVICE DIGITAL OUTPUT |
0 |
|
- |
C | Box | Active | Voltage | Module | - | - | - | - | - | 4 - Analog | ±10V | 16 Bits | - | - | 100k - Simultaneous |
|
|
781113-01DAQ DEVICE DIGITAL I/O |
0 |
|
- |
- | Box | Active | Voltage | Module | - | - | 8 - Analog | ±10V | 12 Bits | - | - | - | - | - | 500k - Multiplexed |
|

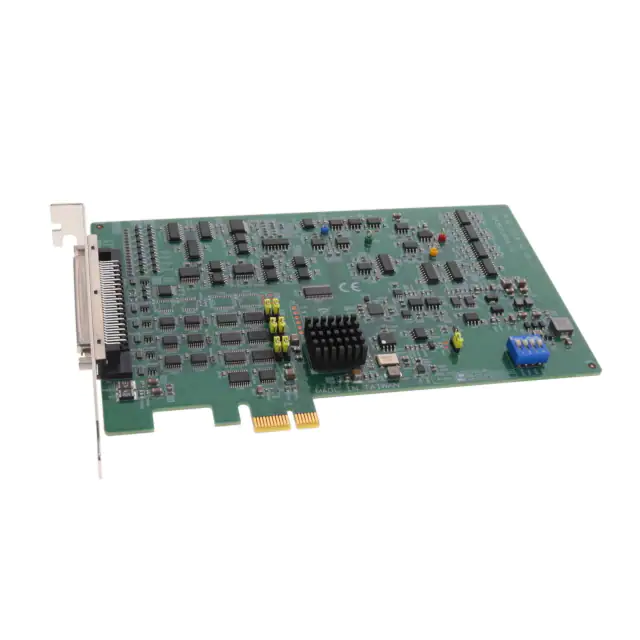

PCIE-1816H-AECARD COUNTER/TIMER PCIE |
0 |
|
Таблицы данных |
- | Box | Obsolete | Counter/Timer | Card | PCIe | SCSI | 16 - Analog (Single-Ended, 8 Differential), 24 - Digital | 0.8 ~ 2V | 16 Bits | 2 - Analog, 24 - Digital | 0.8 ~ 2V | 16 Bits | 24 | 2 | 5M |
|
|
IDAQ-815-AEDAQ DEVICE ANALOG INP SCREW TERM |
0 |
|
- |
- | Bulk | Active | Analog Input | DAQ Device | Screw Terminal | Screw Terminal | 4 - Analog | - | 24 Bits | - | - | - | - | - | - |
|
|
6069-410-1706069-410-170 |
0 |
|
Таблицы данных |
MCC USB-1608G | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 8 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 2 | 500k |
|
|
6069-410-007DATALOGGER ANALOG INPUT USB 2.0 |
0 |
|
- |
WebDAQ 904 | Box | Obsolete | Multifunction I/O, Analog Input, Digital Input, Digital Output, Wi-Fi | Datalogger | RJ45, USB 2.0 (2) | Screw Terminal | 4 - Analog, 4 - Digital | ±1V, ±4V, ±15V, ±60V | 24 Bits | 4 - Digital | 0 ~ 5V | 4 Bits | 4 | - | 100 - Multiplexed |
|
|
6069-410-006DATALOGGER MULTIFUNC I/O USB 2.0 |
0 |
|
- |
WebDAQ 504 | Box | Obsolete | Multifunction I/O | Datalogger | RJ45, USB 2.0 (2) | BNC, Screw Terminal | 4 - Analog, 4 - Digital | ±5V | 24 Bits | 4 - Digital | 1 ~ 3.6V | 4 Bits | 4 | - | 51k - Multiplexed |
|
|
6069-410-0726069-410-072 |
0 |
|
- |
MCC PCI/PCIe | Bulk | Active | Multifunction I/O | DAQ Device | PCI | - | 16 - Digital | - | 12 Bits | 2 - Analog, 16 - Digital | - | 12 Bits | 32 | - | 200k |
|
|
6069-410-0966069-410-096 |
0 |
|
- |
- | Bulk | Active | Digital I/O | DAQ Device | PCI | Screw Terminal | 8 - Digital | - | 16 Bits | 8 - Digital | - | 16 Bits | 8 | - | 200k |
|
|
PCI-1712-BECARD MULTIFUNCTION I/O PCI |
0 |
|
- |
- | Bulk | Active | Multifunction I/O | Card | PCI | SCSI | 16 - Analog (Single-Ended, 8 Differential), 16 - Digital | 0.8V, 2V | 12 Bits | - | 0.8V, 2V | 12 Bits | - | 3 | 1M |
|
|
6069-410-1236069-410-123 |
0 |
|
Таблицы данных |
MCC DT3x | Bulk | Active | Multifunction I/O | DAQ Device | PCI | Screw Terminal | 16 - Analog, 8 - Digital | - | 12 Bits | - | - | 12 Bits | - | - | - |
|
|
6069-410-1776069-410-177 |
0 |
|
- |
MCC USB-1808X | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Single-Ended, 8 - Differential), 4 - Digital | ±10V | 18 Bits | 2 - Analog, 4 - Digital | ±10V | 18 Bits | 4 | 2 | 200k |
