Биполярные транзисторные матрицы, предварительно смещенные
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип транзистора | Ток - Коллектор (Ic) (Макс.) | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Резистор - База (R1) | Резистор - Эмиттер База (R2) | Усиление постоянного тока (hFE) (Мин.) @ Ic, Vce | Насыщение Vce (Макс.) @ Ib, Ic | Ток - Коллектор Отсечка (Макс.) | Частота - Переход | Мощность - макс. | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMG9T2RTRANS 2NPN PREBIAS 0.15W EMT5 |
7,956 |
|
Таблицы данных |
- | 6-SMD (5 Leads), Flat Leads | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 30 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | EMT5 |
|
NSVUMC2NT1GTRANS NPN/PNP PREBIAS 0.15W SC70 |
5,963 |
|
Таблицы данных |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 60 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 150mW | Automotive | AEC-Q101 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
EMD12T2RTRANS NPN/PNP PREBIAS 0.15W EMT6 |
5,380 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 68 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | EMT6 |
|
|
EMD3T2RTRANS NPN/PNP PREBIAS 0.15W EMT6 |
3,250 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 30 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | EMT6 |
|
|
EMB2T2RTRANS 2PNP PREBIAS 0.15W EMT6 |
2,873 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 68 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | EMT6 |
|
|
EMG2T2RTRANS 2NPN PREBIAS 0.15W EMT5 |
2,855 |
|
Таблицы данных |
- | 6-SMD (5 Leads), Flat Leads | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 68 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | EMT5 |
|
PBLS4001Y,115TRANS PREBIAS 1NPN 1PNP 6TSSOP |
1,978 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 1 NPN Pre-Biased, 1 PNP | 100mA, 500mA | 50V, 40V | 2.2kOhms | 2.2kOhms | 30 @ 20mA, 5V / 150 @ 100mA, 2V | 150mV @ 500µA, 10mA / 350mV @ 50mA, 500mA | 1µA | 300MHz | 300mW | - | - | Surface Mount | 6-TSSOP |
|
PIMN32XTRANS PREBIAS 2NPN 50V 6TSOP |
8,814 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 500mA | 50V | 2.2kOhms | 10kOhms | 70 @ 50mA, 5V | 100mV @ 2.5mA, 50mA | 500nA | 225MHz | 290mW | - | - | Surface Mount | 6-TSOP |
|
|
PIMP32XTRANS PREBIAS 2PNP 50V 6TSOP |
8,150 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 500mA | 50V | 2.2kOhms | 10kOhms | 70 @ 50mA, 5V | 100mV @ 2.5mA, 50mA | 500nA | 140MHz | 290mW | - | - | Surface Mount | 6-TSOP |
|

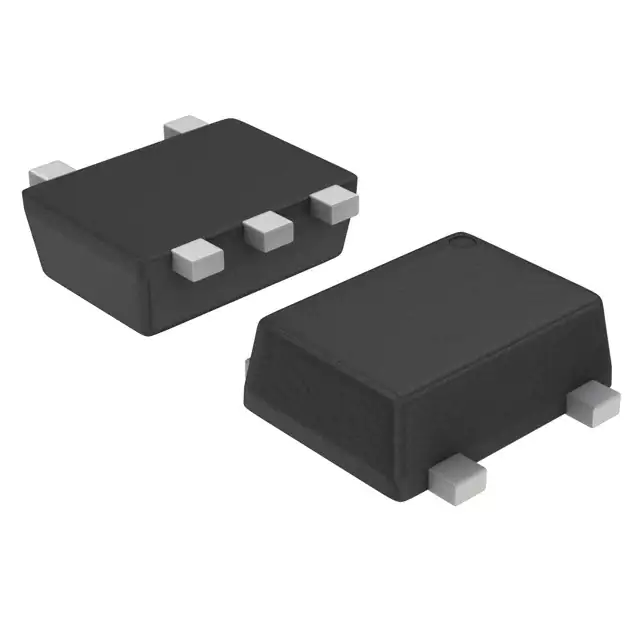

NSVEMC2DXV5T1GTRANS PREBIAS NPN/PNP 50V SOT553 |
5,109 |
|
Таблицы данных |
- | SOT-553 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre - Biased (Base-Collector Junction) | 100mA | 50V | 22kOhms | 22kOhms | 60 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 500mW | Automotive | AEC-Q101 | Surface Mount | SOT-553 |
|
IMD10AMT1GTRANS NPN/PNP PREBIAS SC74R |
1,956 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 500mA | 50V | 13kOhms, 130Ohms | 10kOhms | 100 @ 1mA, 5V / 68 @ 100mA, 5V | 300mV @ 1mA, 10mA | 500nA | - | 285mW | - | - | Surface Mount | SC-74R |
|
|
PIMP31-QXTRANS PREBIAS 2PNP 50V 6TSOP |
12,000 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 500mA | 50V | 1kOhms | 10kOhms | 70 @ 50mA, 5V | 100mV @ 2.5mA, 50mA | 500nA | 140MHz | 290mW | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
|
PIMP32-QXTRANS PREBIAS 2PNP 50V 6TSOP |
12,000 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 500mA | 50V | 2.2kOhms | 10kOhms | 70 @ 50mA, 5V | 100mV @ 2.5mA, 50mA | 500nA | 140MHz | 290mW | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
|
PIMN32-QXTRANS PREBIAS 2NPN 50V 6TSOP |
10,820 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 500mA | 50V | 2.2kOhms | 10kOhms | 70 @ 50mA, 5V | 100mV @ 2.5mA, 50mA | 500nA | 225MHz | 290mW | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
NSBA144EDP6T5GTRANS PREBIAS 2PNP 50V SOT963 |
5,720 |
|
Таблицы данных |
- | SOT-963 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 408mW | - | - | Surface Mount | SOT-963 |
|
|
EMD29T2RTRANS NPN/PNP PREBIAS 0.12W EMT6 |
1,555 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA, 500mA | 50V, 12V | 1kOhms, 10kOhms | 10kOhms | 30 @ 5mA, 5V / 140 @ 100mA, 2V | 300mV @ 500µA, 10mA / 300mV @ 5mA, 100mA | 500nA | 250MHz, 260MHz | 120mW | - | - | Surface Mount | EMT6 |
|
FMG11AT148TRANS 2NPN PREBIAS 0.3W SMT5 |
3,180 |
|
Таблицы данных |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Not For New Designs | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 300mW | - | - | Surface Mount | SMT5 |
|
|
FMA1AT148TRANS PREBIAS DUAL PNP SMT5 |
2,506 |
|
Таблицы данных |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) (Emitter Coupled) | 100mA | 50V | 22kOhms | 22kOhms | 56 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 300mW | - | - | Surface Mount | SMT5 |
|
|
FMA9AT148TRANS PREBIAS DUAL PNP SMT5 |
2,900 |
|
Таблицы данных |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 30 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 300mW | - | - | Surface Mount | SMT5 |
|
|
FMG4AT148TRANS 2NPN PREBIAS 0.3W SMT5 |
2,900 |
|
Таблицы данных |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 100 @ 1mA, 5V | 300mV @ 1mA, 10mA | - | 250MHz | 300mW | - | - | Surface Mount | SMT5 |
