Биполярные транзисторные матрицы, предварительно смещенные
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип транзистора | Ток - Коллектор (Ic) (Макс.) | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Резистор - База (R1) | Резистор - Эмиттер База (R2) | Усиление постоянного тока (hFE) (Мин.) @ Ic, Vce | Насыщение Vce (Макс.) @ Ib, Ic | Ток - Коллектор Отсечка (Макс.) | Частота - Переход | Мощность - макс. | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMB11T2RTRANS 2PNP PREBIAS 0.15W EMT6 |
22,683 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 20 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | EMT6 |
|
|
EMH4T2RTRANS 2NPN PREBIAS 0.15W EMT6 |
19,725 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 100 @ 1mA, 5V | 300mV @ 1mA, 10mA | 500nA (ICBO) | 250MHz | 150mW | - | - | Surface Mount | EMT6 |
|
EMG8T2RTRANS 2NPN PREBIAS 0.15W EMT5 |
9,900 |
|
Таблицы данных |
- | 6-SMD (5 Leads), Flat Leads | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | EMT5 |
|
|
EMB10T2RTRANS 2PNP PREBIAS 0.15W EMT6 |
8,000 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | EMT6 |
|
IMB10AT110TRANS PREBIAS DUAL PNP SMT6 |
6,488 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 300mW | - | - | Surface Mount | SMT6 |
|
|
EMH10T2RTRANS 2NPN PREBIAS 0.15W EMT6 |
6,471 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 56 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | EMT6 |
|
|
EMH3T2RTRANS 2NPN PREBIAS 0.15W EMT6 |
6,173 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 100 @ 1mA, 5V | 300mV @ 250µA, 5mA | - | 250MHz | 150mW | - | - | Surface Mount | EMT6 |
|
PIMC32XTRANS PREBIAS 1NPN 1PNP 6TSOP |
5,010 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 500mA | 50V | 2.2kOhms | 10kOhms | 70 @ 50mA, 5V | 100mV @ 2.5mA, 50mA | 500nA | 225MHz, 140MHz | 290mW | - | - | Surface Mount | 6-TSOP |
|
|

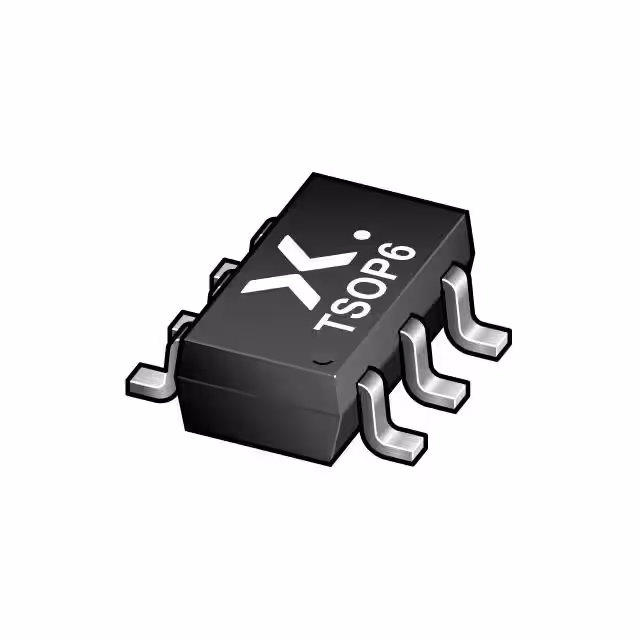

PIMP31XTRANS PREBIAS 2PNP 50V 6TSOP |
3,050 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 500mA | 50V | 1kOhms | 10kOhms | 70 @ 50mA, 5V | 100mV @ 2.5mA, 50mA | 500nA | 140MHz | 290mW | - | - | Surface Mount | 6-TSOP |
|
|
PIMC32-QXTRANS PREBIAS 1NPN 1PNP 6TSOP |
13,900 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 500mA | 50V | 2.2kOhms | 10kOhms | 70 @ 50mA, 5V | 100mV @ 2.5mA, 50mA | 500nA | 225MHz, 140MHz | 290mW | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
|
IMH1AT110TRANS PREBIAS DUAL NPN SMT6 |
9,000 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 56 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 300mW | - | - | Surface Mount | SMT6 |
|
|
EMD22T2RTRANS NPN/PNP PREBIAS 0.15W EMT6 |
6,685 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 2.5mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | EMT6 |
|
|
IMB9AT110TRANS PREBIAS DUAL PNP SMT6 |
5,960 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Not For New Designs | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 68 @ 5mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 300mW | - | - | Surface Mount | SMT6 |
|
|
IMD10AT108TRANS NPN/PNP PREBIAS 0.3W SMT6 |
7,594 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA, 500mA | 50V | 10kOhms, 100Ohms | 10kOhms | 100 @ 1mA, 5V / 68 @ 100mA, 5V | 300mV @ 1mA, 10mA / 300mV @ 5mA, 100mA | 500nA | 250MHz, 200MHz | 300mW | - | - | Surface Mount | SMT6 |
|
FMG3AT148TRANS 2NPN PREBIAS 0.3W SMT5 |
2,094 |
|
Таблицы данных |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 100 @ 1mA, 5V | 150mV @ 250µA, 5mA | 500nA (ICBO) | 250MHz | 300mW | - | - | Surface Mount | SMT5 |
|
|
FMA5AT148TRANS PREBIAS DUAL PNP SMT5 |
5,510 |
|
Таблицы данных |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 300mW | - | - | Surface Mount | SMT5 |
|
|
FMG9AT148TRANS 2NPN PREBIAS 0.3W SMT5 |
3,737 |
|
Таблицы данных |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 30 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 300mW | - | - | Surface Mount | SMT5 |
|
PBLS6023D,115TRANS PREBIAS 1NPN 1PNP 6TSOP |
1,558 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 1 NPN Pre-Biased, 1 PNP | 100mA, 1.5A | 50V, 60V | 10kOhms | 10kOhms | 30 @ 5mA, 5V / 140 @ 1A, 2V | 150mV @ 500µA, 10mA / 260mV @ 100mA, 1.5A | 1µA, 100nA | 150MHz | 760mW | - | - | Surface Mount | 6-TSOP |
|
RN1911FE,LF(CTNPN X 2 BRT Q1BSR=10KOHM Q1BER=I |
4,000 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | - | - | Surface Mount | ES6 |
|
|
RN4902FE,LF(CTTRANS NPN/PNP PREBIAS 0.1W ES6 |
7,699 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 50 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz, 200MHz | 100mW | - | - | Surface Mount | ES6 |
