Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

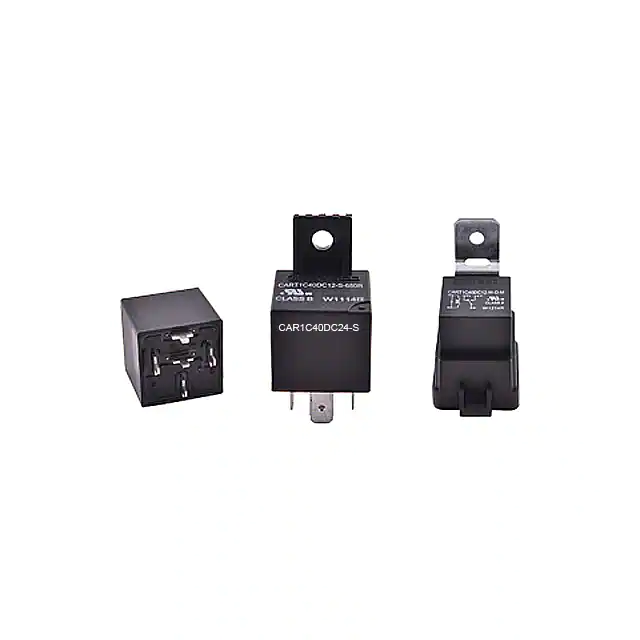

CAR1C40DC24-SCAR40 SERIES, SPDT, 40A, DC24V C |
0 |
|
Таблицы данных |
CAR40 | Tube | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 40 A | 14VDC - Max | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

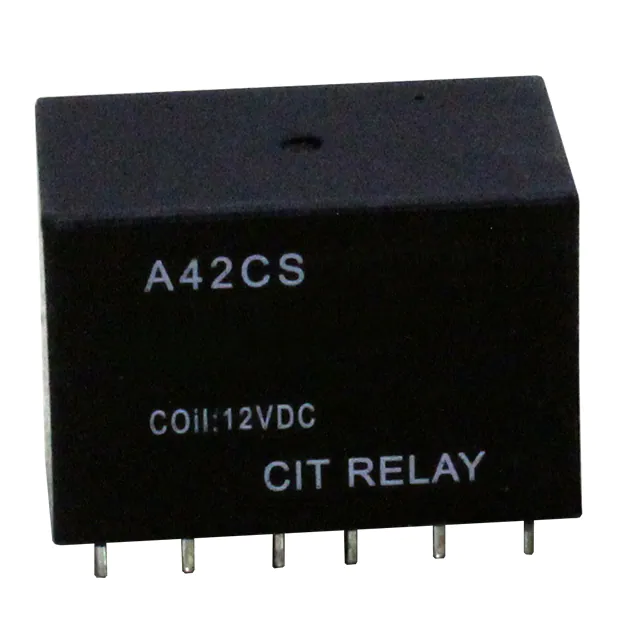

A42CS12VDCRELAY AUTO 2 SPDT 12VDC PCB |
0 |
|
Таблицы данных |
A4 | Tube | Obsolete | Non Latching | 82.8 mA | 12VDC | DPDT (2 Form C) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

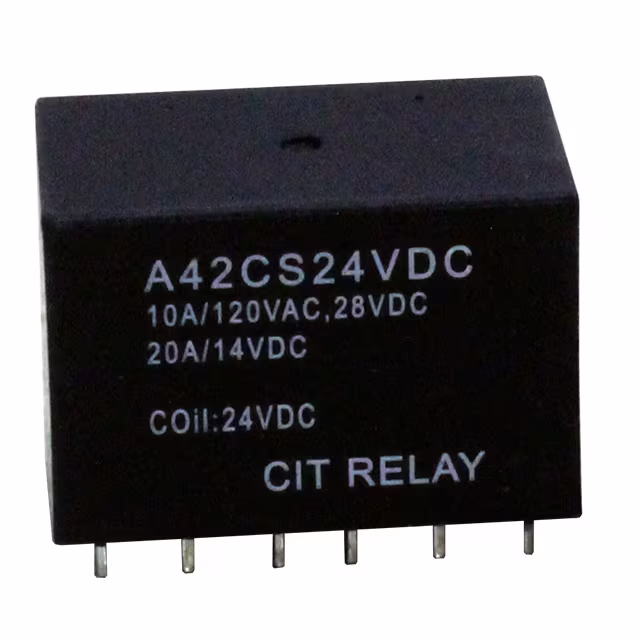

A42CS24VDCRELAY AUTO 2 SPDT 24VDC PCB |
0 |
|
Таблицы данных |
A4 | Tube | Obsolete | Non Latching | 41.7 mA | 24VDC | DPDT (2 Form C) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
1480422-1RELAY MINI RELE ALARME SONORO |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4-1393306-7RELAY MINI VF711F11Z10/X863 |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1-1393306-1RELAY MINI VF4M11F13Z06/X832 |
0 |
|
- |
- | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A42US24VDCDUAL PACKAGE RELAY AUTOMOTIVE (2 |
0 |
|
Таблицы данных |
A4 | Tube | Obsolete | Non Latching | 41.7 mA | 24VDC | DPST-NO (2 Form A) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A42US12VDCDUAL PACKAGE RELAY AUTOMOTIVE (2 |
0 |
|
Таблицы данных |
A4 | Tube | Obsolete | Non Latching | 82.8 mA | 12VDC | DPST-NO (2 Form A) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A151US12VDCRELAY AUTOMOTIVE 20A SPST NO 1U |
0 |
|
Таблицы данных |
A15 | Tube | Obsolete | Non Latching | 57.1 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 20VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A42AS24VDCDUAL PACKAGE RELAY AUTOMOTIVE (2 |
0 |
|
Таблицы данных |
A4 | Tube | Obsolete | Non Latching | 41.7 mA | 24VDC | DPST-NO (2 Form A) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8N-1H-DC12-SKSUPER MICRO RELAY |
0 |
|
- |
G8N-1 | Bulk | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
7-1393303-2RELAY MINI PLUG-IN |
0 |
|
- |
V23134, AXICOM | Bulk | Obsolete | Non Latching | - | - | SPST-NO (1 Form A) | - | - | - | - | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
1-1393302-9RELAY MINI PLUG-IN |
0 |
|
- |
V23134, AXICOM | Bulk | Last Time Buy | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 14VDC - Nom | - | - | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
RA-400012-DSTERM |
0 |
|
Таблицы данных |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC-250012-DNTERM |
0 |
|
Таблицы данных |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
JSM1-12V-5RELAY AUTOMOTIVE SPDT 15A 12V |
0 |
|
Таблицы данных |
JS-M | Bulk | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 15 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
ACTE5R2RELAY AUTOMOTIVE SPDTX2 20A 12V |
0 |
|
Таблицы данных |
TE | Tube | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 110°C |
|
|
ACTE5H3RELAY AUTOMOTIVE SPDTX2 20A 12V |
0 |
|
Таблицы данных |
TE | Bulk | Active | Non Latching | 54.5 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 7.7 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 110°C |
|
|
ACTE5R3RELAY AUTOMOTIVE SPDTX2 20A 12V |
0 |
|
Таблицы данных |
TE | Tube | Active | Non Latching | 54.5 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 7.7 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 110°C |
|
|
ACTE5H2RELAY AUTOMOTIVE |
0 |
|
Таблицы данных |
TE | Bulk | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 110°C |
