Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

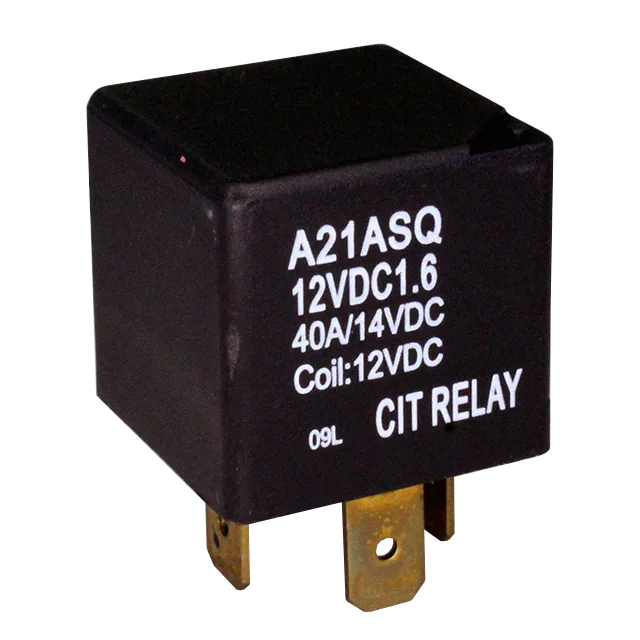

A21ASQ24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
313 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A11ASQ24VDC1.2DRELAY AUTOMOTIVE SPST 30A 24V CIT Relay and Switch |
2,941 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

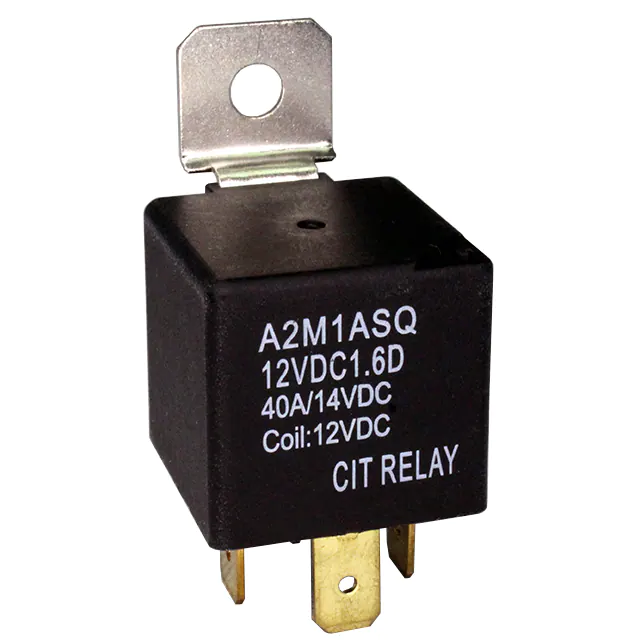

A2M1ASQ12VDC1.6DRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
537 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

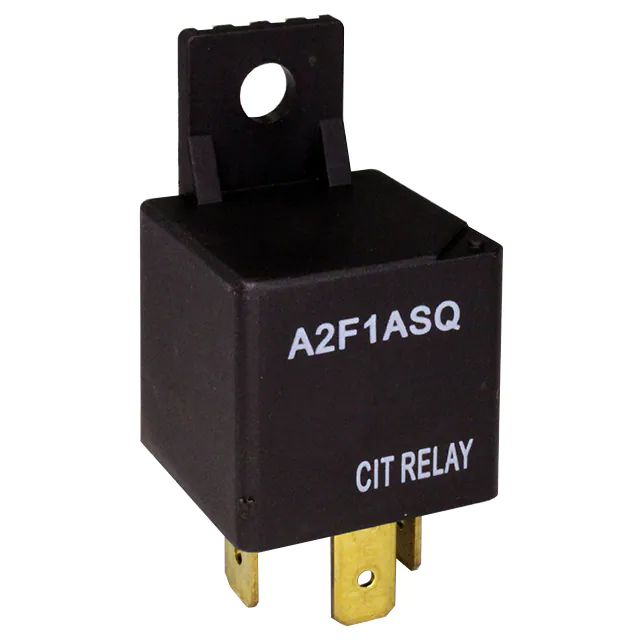

A2F1ASQ24VDC1.6DRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
659 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

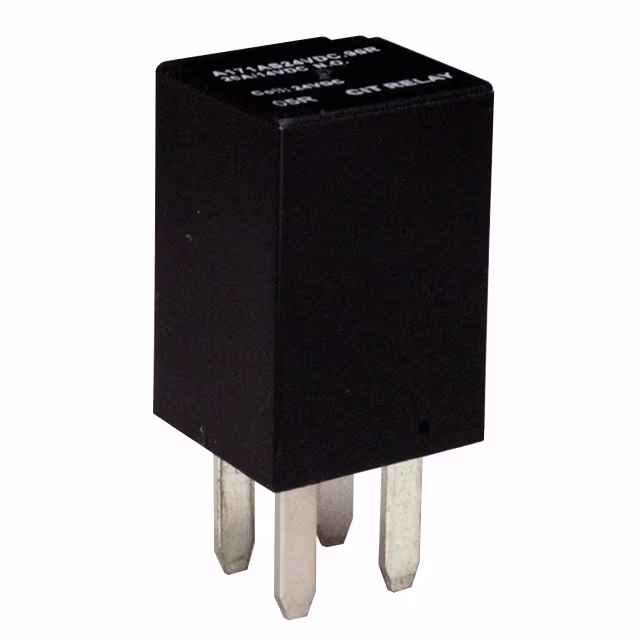

A171AS24VDC.96RRELAY AUTOMOTIVE SPST 30A 24V CIT Relay and Switch |
3,416 |
|
Таблицы данных |
A17 | Tray | Active | Non Latching | 40 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

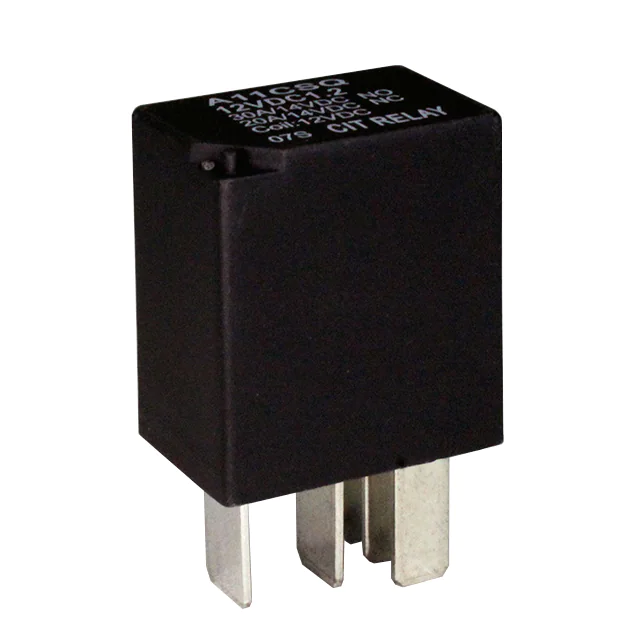

A11CSQ12VDC1.2RELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
1,977 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

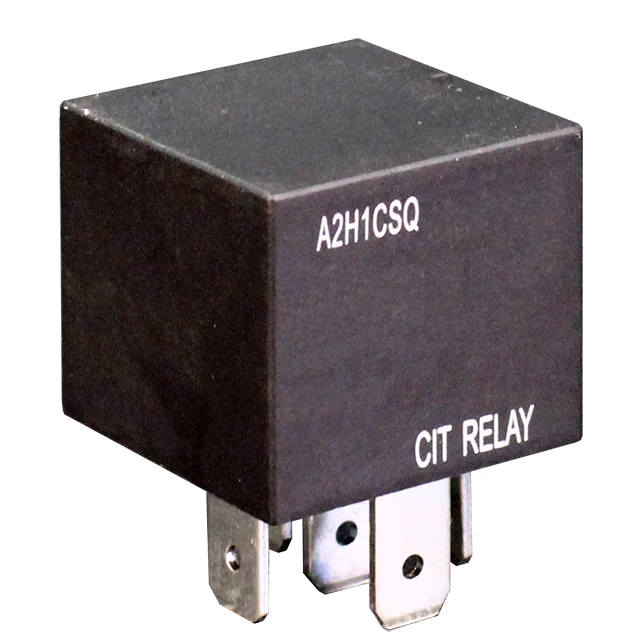

A2H1CSQ24VDC1.6RELAY AUTOMOTIVE SPDT 50A 24V CIT Relay and Switch |
342 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

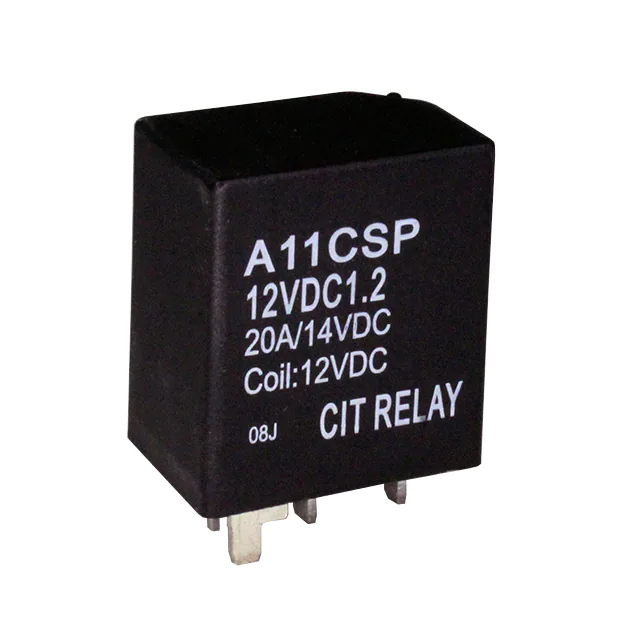

A11CSP12VDC1.2RRELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
2,296 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

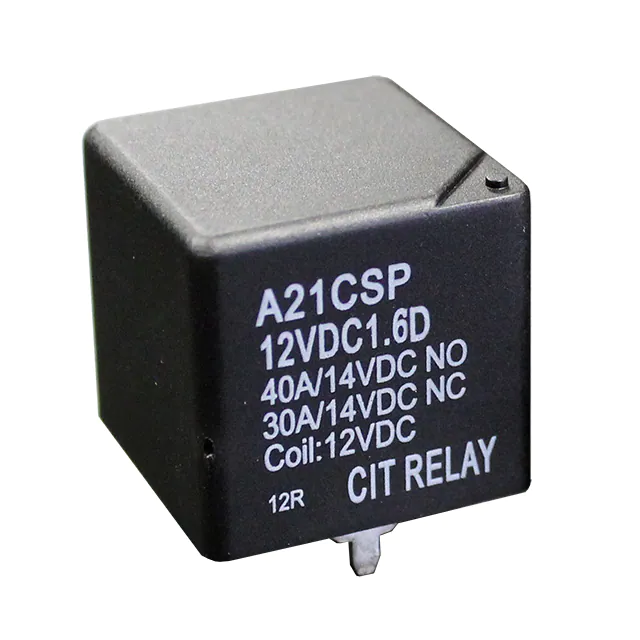

A21CSP12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V CIT Relay and Switch |
175 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

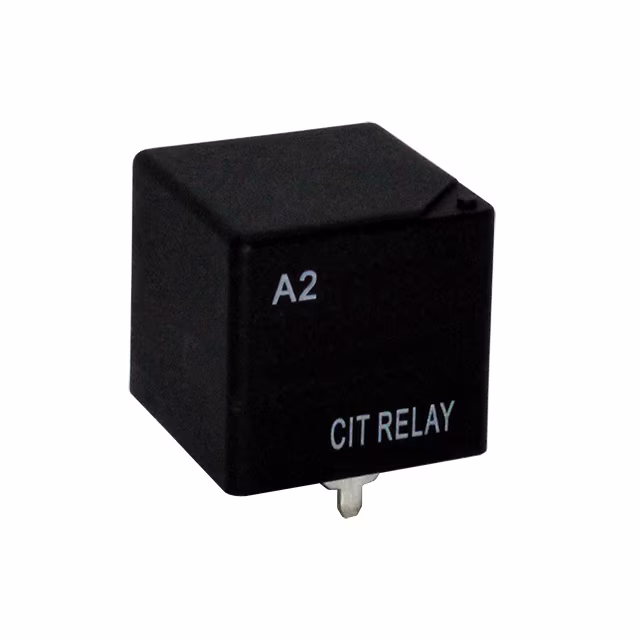

A21CSP48VDC1.6RELAY AUTOMOTIVE SPDT 40A 48V CIT Relay and Switch |
1,347 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
