БОМ
Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3KM1CCQ24VDC1.6RRELAY AUTOMOTIVE SPDT 150A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3KM1CSP12VDC1.6RRELAY AUTOMOTIVE SPDT 150A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A3KM1CSP12VDC1.6DRELAY AUTOMOTIVE SPDT 150A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A3KM1CSP24VDC1.6RELAY AUTOMOTIVE SPDT 150A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A3KM1CSP24VDC1.6DRELAY AUTOMOTIVE SPDT 150A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A3KM1CSP24VDC1.6RRELAY AUTOMOTIVE SPDT 150A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|

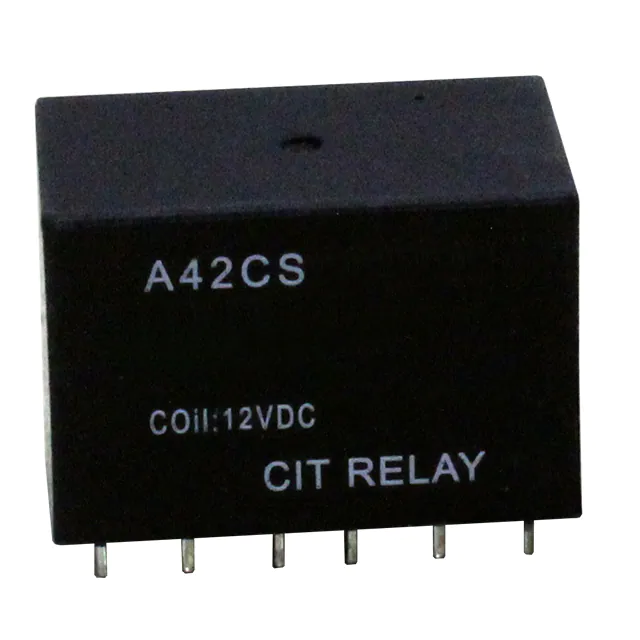

A42CS12VDCRELAY AUTO 2 SPDT 12VDC PCB CIT Relay and Switch |
0 |
|
Таблицы данных |
A4 | Tube | Obsolete | Non Latching | 82.8 mA | 12VDC | DPDT (2 Form C) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

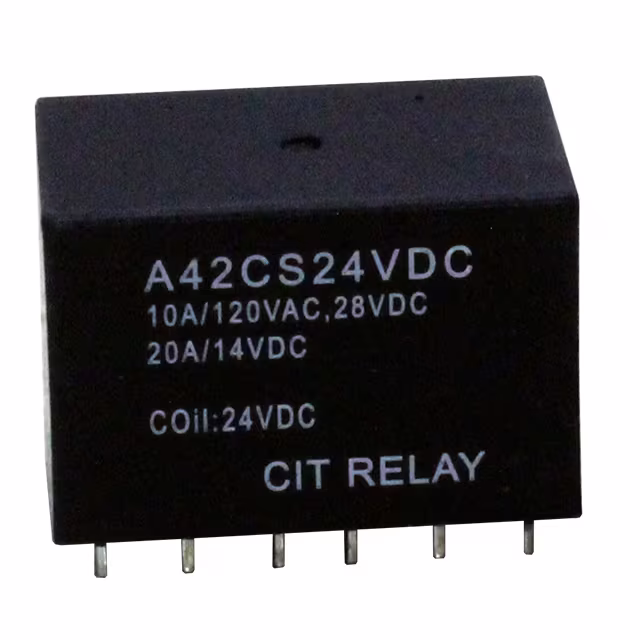

A42CS24VDCRELAY AUTO 2 SPDT 24VDC PCB CIT Relay and Switch |
0 |
|
Таблицы данных |
A4 | Tube | Obsolete | Non Latching | 41.7 mA | 24VDC | DPDT (2 Form C) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A42US24VDCDUAL PACKAGE RELAY AUTOMOTIVE (2 CIT Relay and Switch |
0 |
|
Таблицы данных |
A4 | Tube | Obsolete | Non Latching | 41.7 mA | 24VDC | DPST-NO (2 Form A) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A42US12VDCDUAL PACKAGE RELAY AUTOMOTIVE (2 CIT Relay and Switch |
0 |
|
Таблицы данных |
A4 | Tube | Obsolete | Non Latching | 82.8 mA | 12VDC | DPST-NO (2 Form A) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
