Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

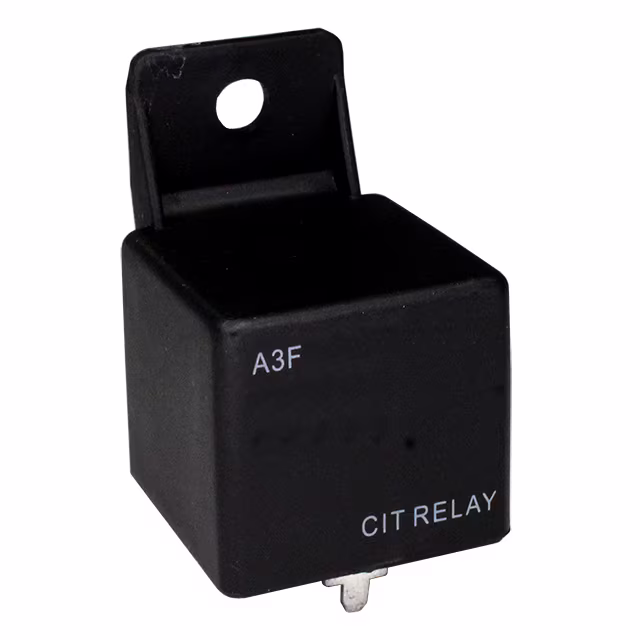

A3F1CSP24VDC2RRELAY AUTOMOTIVE SPDT 80A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A3F1CSP24VDC2DRELAY AUTOMOTIVE SPDT 80A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A2K1ACQ12VDC1.6RELAY AUTOMOTIVE SPST 120A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2K1ACQ12VDC1.6RRELAY AUTOMOTIVE SPST 120A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2K1ACQ12VDC1.6DRELAY AUTOMOTIVE SPST 120A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Magnetic Blowout | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2K1ACQ24VDC1.6RELAY AUTOMOTIVE SPST 120A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2KM1ACQ12VDC1.6RELAY AUTOMOTIVE SPST 120A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2K1ASP12VDC1.6RELAY AUTOMOTIVE SPST 120A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A2K1ACQ24VDC1.6DRELAY AUTOMOTIVE SPST 120A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Magnetic Blowout | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2K1ACQ24VDC1.6RRELAY AUTOMOTIVE SPST 120A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
