Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A21CCQ12VDC1.9RELAY AUTOMOTIVE SPDT 40A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1ASP24VDC1.6RELAY AUTOMOTIVE SPST 50A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A2M1ASQ24VDC1.9DRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A21CCQ12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2F1CCQ12VDC1.9RELAY AUTOMOTIVE SPDT 40A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2F1CCQ12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1ASQ24VDC1.9RRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

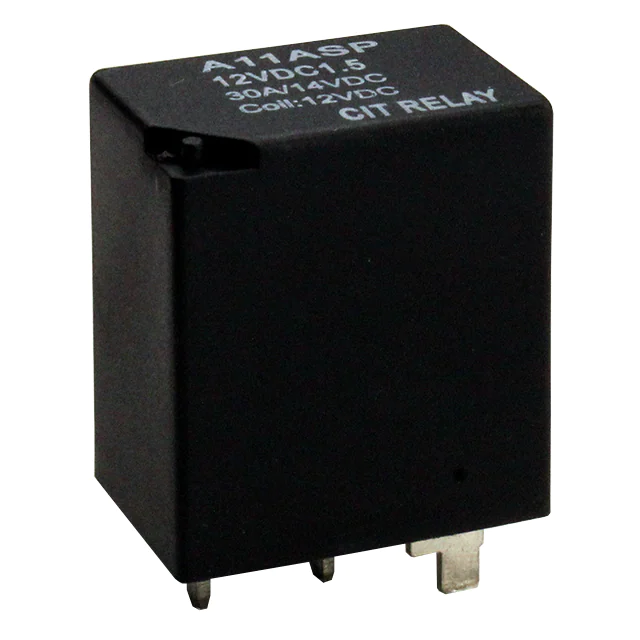

A11ASP12VDC1.5RRELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A61AC12VDC.9RELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A61AC12VDC1.3RELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
0 |
|
Таблицы данных |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
