Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

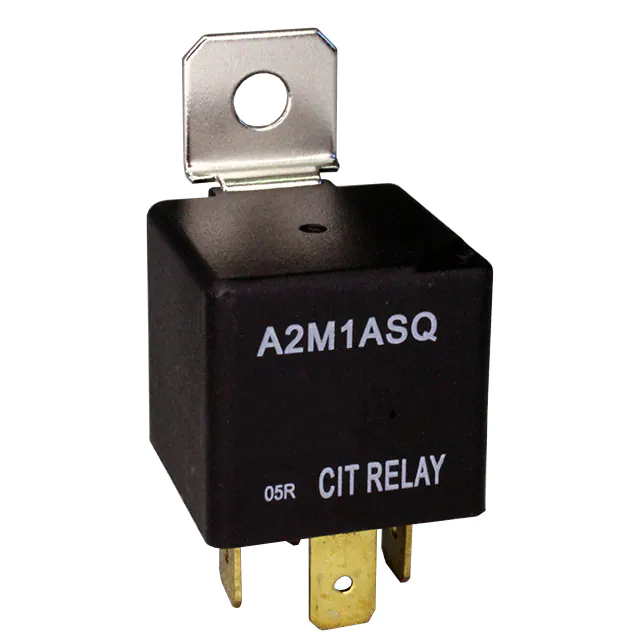

A2M1ASQ24VDC1.6DRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
440 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

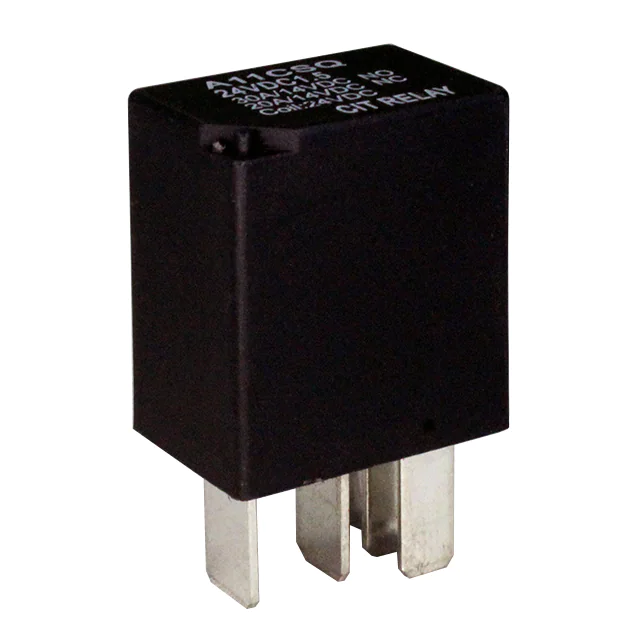

A11CSQ24VDC1.5RELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch |
658 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

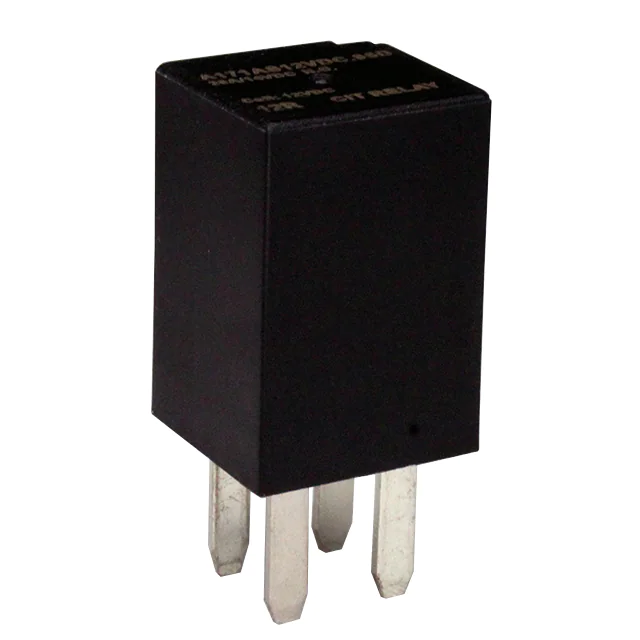

A171AS12VDC.96DRELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
384 |
|
Таблицы данных |
A17 | Tray | Active | Non Latching | 80 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

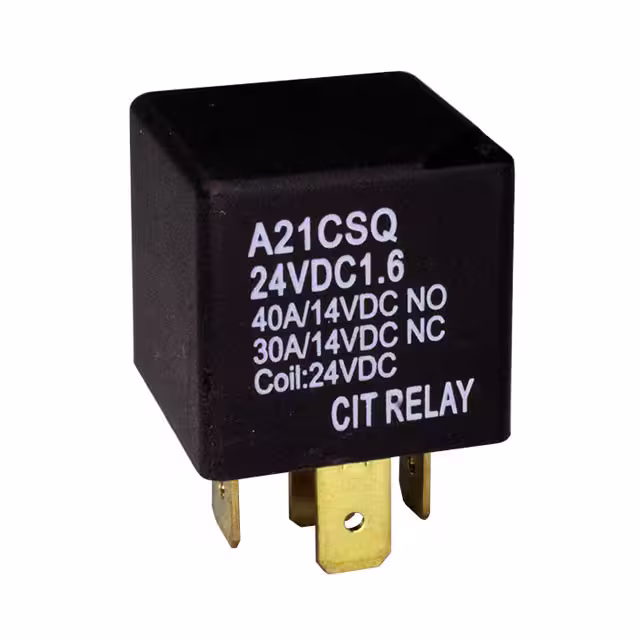

A21CSQ24VDC1.6RELAY AUTOMOTIVE SPDT 40A 24V CIT Relay and Switch |
384 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A11CSQ12VDC1.5RELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
1,360 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

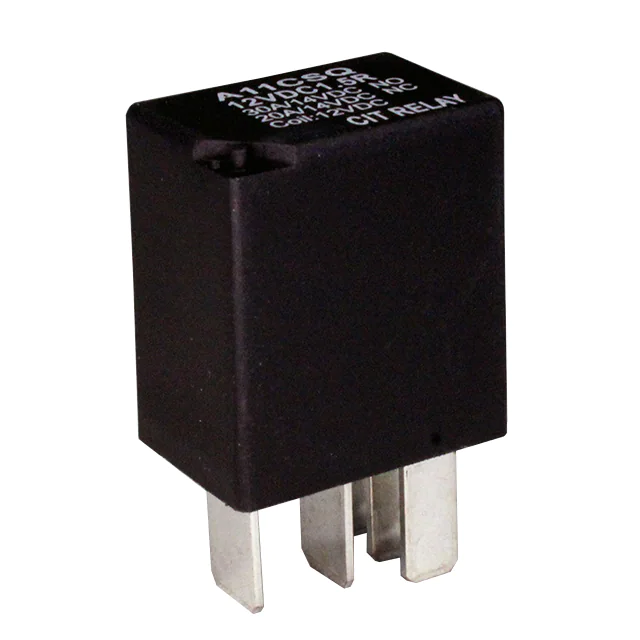

A11CSQ12VDC1.5RRELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
823 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

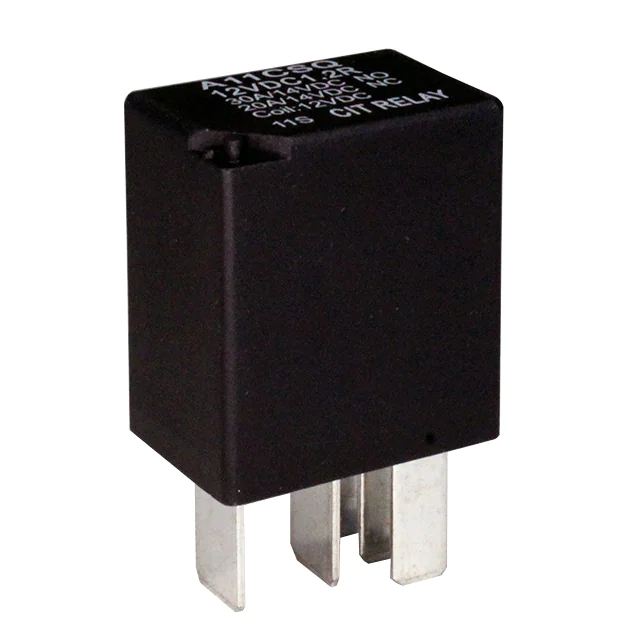

A11CSQ12VDC1.2RRELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
657 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

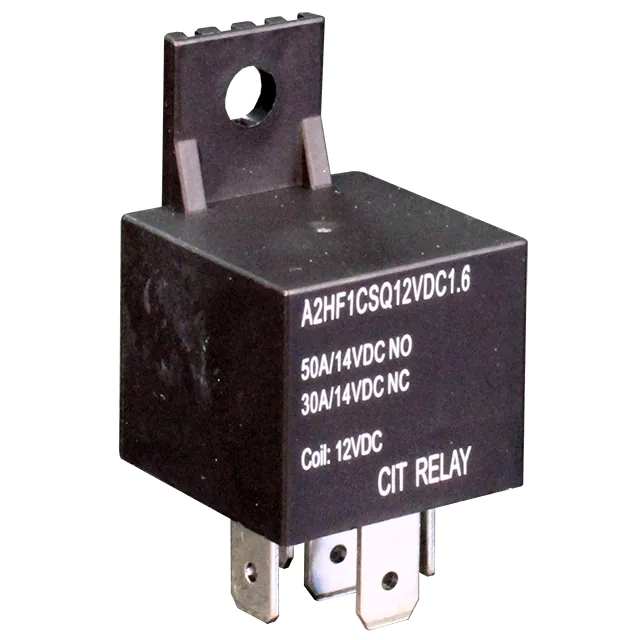

A2HF1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 50A 12V CIT Relay and Switch |
826 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

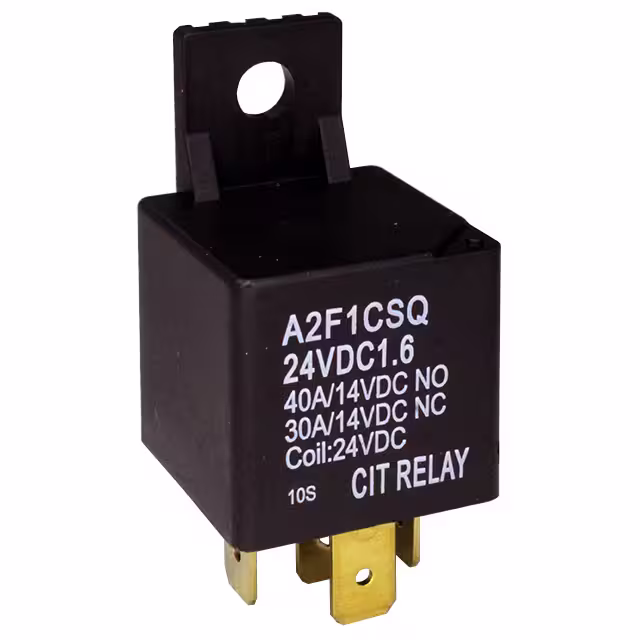

A2F1CSQ24VDC1.6RELAY AUTOMOTIVE SPDT 40A 24V CIT Relay and Switch |
616 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

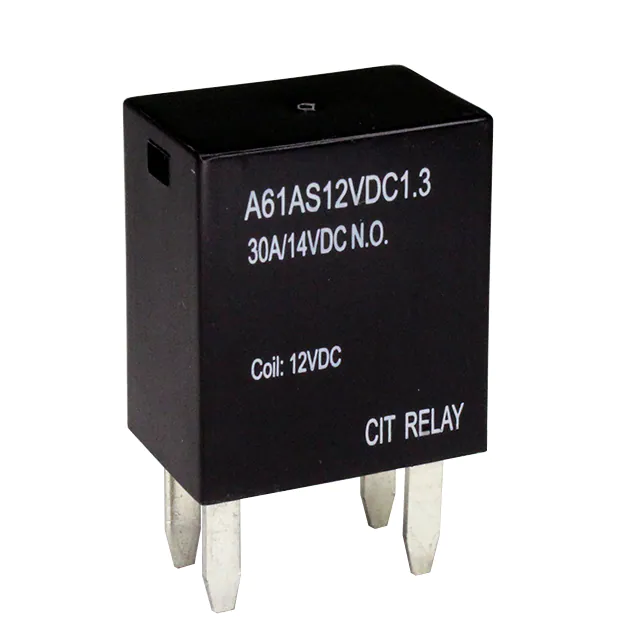

A61AS12VDC1.3RELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
400 |
|
Таблицы данных |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
