Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2HF1ASQ24VDC1.6DRELAY AUTOMOTIVE SPST 50A 24V |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 50A 24V |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2H1ASQ24VDC1.6DRELAY AUTOMOTIVE SPST 50A 24V |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HF1ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 50A 24V |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2HM1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 50A 24V |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HM1ASQ24VDC1.6DRELAY AUTOMOTIVE SPST 50A 24V |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2M1CSP12VDC1.6RRELAY AUTOMOTIVE METAL BRACKET S |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
6-1414989-1V23134Z1020-EV-CBOX |
0 |
|
Таблицы данных |
- | Box | Active | Non Latching | - | - | - | - | - | - | - | - | - | - | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | - |
|
|
A3F1ASP12VDC2RELAY AUTOMOTIVE FLANGED HEAVY D |
0 |
|
Таблицы данных |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A3F1ASP12VDC2RRELAY AUTOMOTIVE FLANGED HEAVY D |
0 |
|
Таблицы данных |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A3F1ASP12VDC2DRELAY AUTOMOTIVE FLANGED HEAVY D |
0 |
|
Таблицы данных |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A3F1ASP24VDC2RELAY AUTOMOTIVE FLANGED HEAVY D |
0 |
|
Таблицы данных |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A3F1ASP24VDC2RRELAY AUTOMOTIVE FLANGED HEAVY D |
0 |
|
Таблицы данных |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A2KM1CSQ48VDC1.6RRELAY AUTOMOTIVE SPDT 60A 48VDC |
4 |
|
Таблицы данных |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

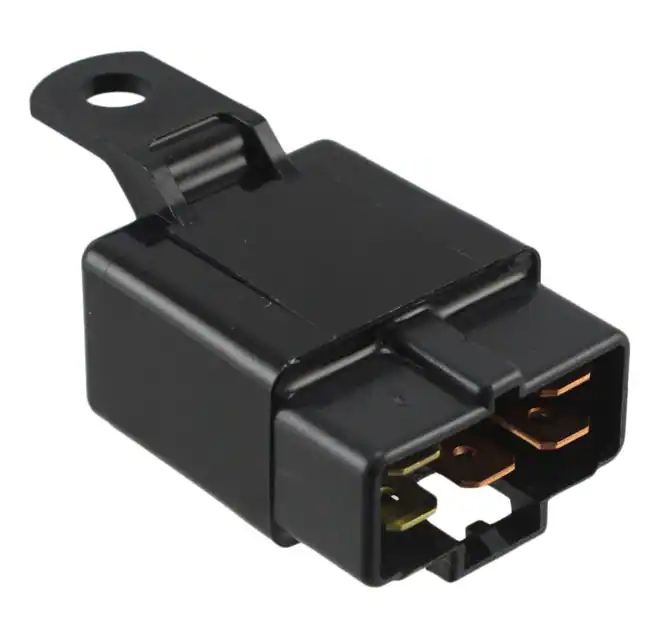

CA1-DC24V-NCA RELAY 1 FORM C 24V |
0 |
|
Таблицы данных |
CA | Bulk | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 10 A | 30VDC - Max | 16 VDC | 1.2 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
|
A3KM1ASQ48VDC1.6RELAY AUTOMOTIVE SPST 80A 48VDC |
14 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3KM1ASQ48VDC1.6DRELAY AUTOMOTIVE SPST 80A 48VDC |
23 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3KM1CSQ48VDC1.6DRELAY AUTOMOTIVE SPDT 80A 48VDC |
0 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
PC776-1X-12S-D-XRELAY AUTOMOTIVE SPST 130A 12V |
3 |
|
Таблицы данных |
PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-12S-R-XRELAY AUTOMOTIVE SPST 130A 12V |
5 |
|
Таблицы данных |
PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
