БОМ
Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

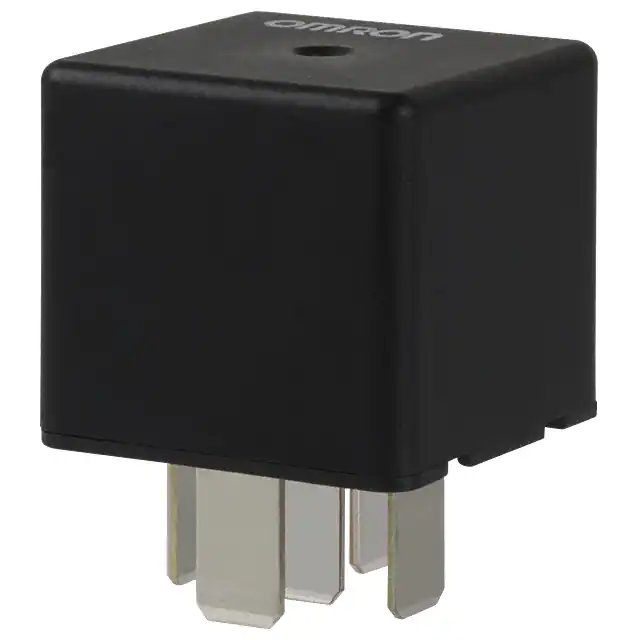

G8JN-1C6T-F-DC12RELAY AUTOMOTIVE SPDT 35A 12V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

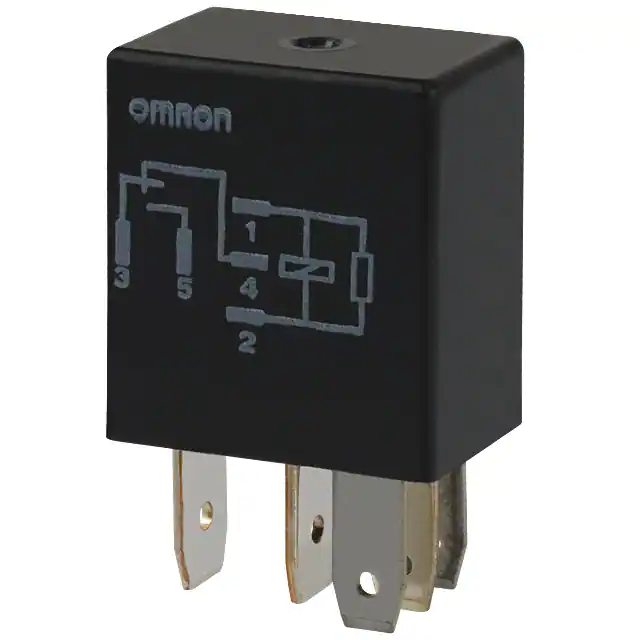

G8H-1C4T-R-DC12RELAY AUTOMOTIVE SPDT 10A 12V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
G8H | Bulk | Obsolete | Non Latching | 120 mA | 12VDC | SPDT (1 Form C) | 10 A | 16VDC - Max | 7 VDC | 0.7 VDC | 20 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
G8J-1A7P-R-DC12RELAY AUTOMOTIVE SPST 40A 12V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
G8J | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
G8J-1C6T-F-R-DC12RELAY AUTOMOTIVE SPDT 40A 12V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
G8J | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
G8J-1C6T-R-DC12RELAY AUTOMOTIVE SPDT 40A 12V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
G8J | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8J-1C7T-MF-R-DC12RELAY AUTOMOTIVE SPDT 40A 12V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
G8J | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8J-1C7T-R-DC12RELAY AUTOMOTIVE SPDT 40A 12V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
G8J | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8JE-1A7T-R-DC12RELAY AUTOMOTIVE SPST 70A 12V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
G8JE | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 70 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|

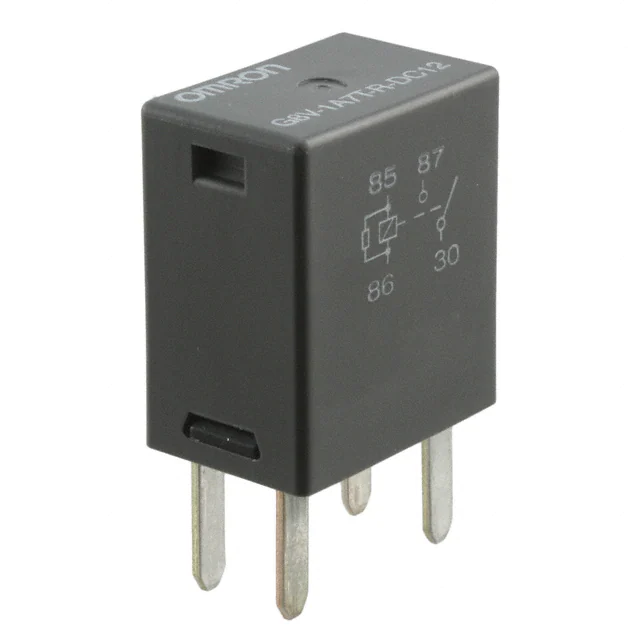

G8V-1A7T-R-DC12RELAY AUTOMOTIVE SPST 20A 12V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
G8V | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 8 VDC | 1 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8V-1C7T-R-DC12RELAY AUTOMOTIVE SPDT 10A 12V Omron Electronics Inc-EMC Div |
0 |
|
Таблицы данных |
G8V | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 10 A | 16VDC - Max | 8 VDC | 1 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 125°C |
