Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

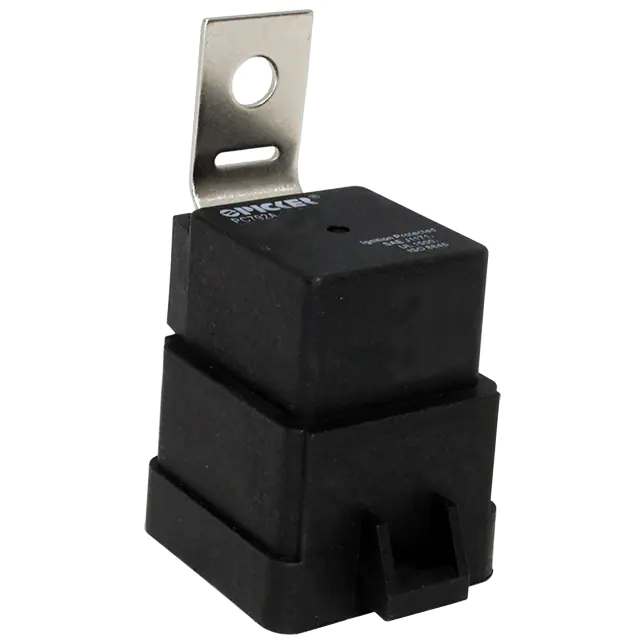

PC792A-1C-C3-12S-RN-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
2,820 |
|
Таблицы данных |
- | Bag | Active | Non Latching | 150.9 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C3-12S-DN-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
1,204 |
|
Таблицы данных |
- | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

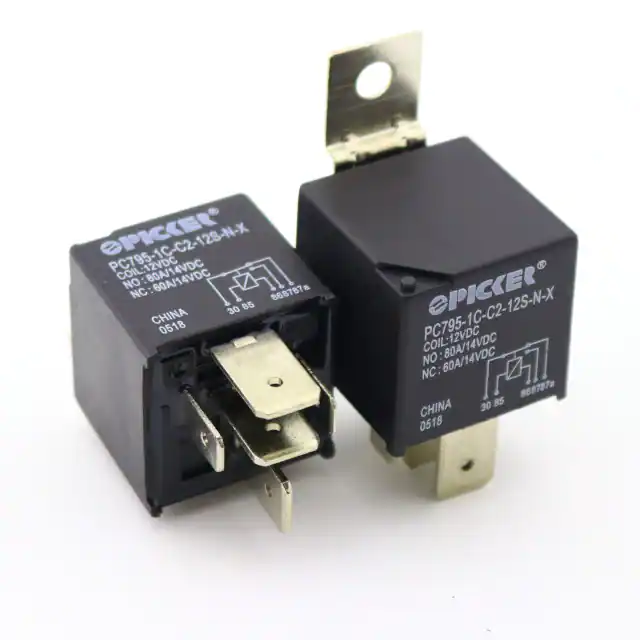

PC795-1C-C2-12S-N-XRELAY AUTOMOTIVE SPDT 80A 12V Picker Components |
2,383 |
|
Таблицы данных |
- | Bag | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
PC7150-1A-C2-12C-RN-XRELAY AUTOMOTIVE SPST 150A 12V Picker Components |
1,218 |
|
Таблицы данных |
- | Bag | Active | Non Latching | 258 mA | 12VDC | SPST-NO (1 Form A) | 150 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

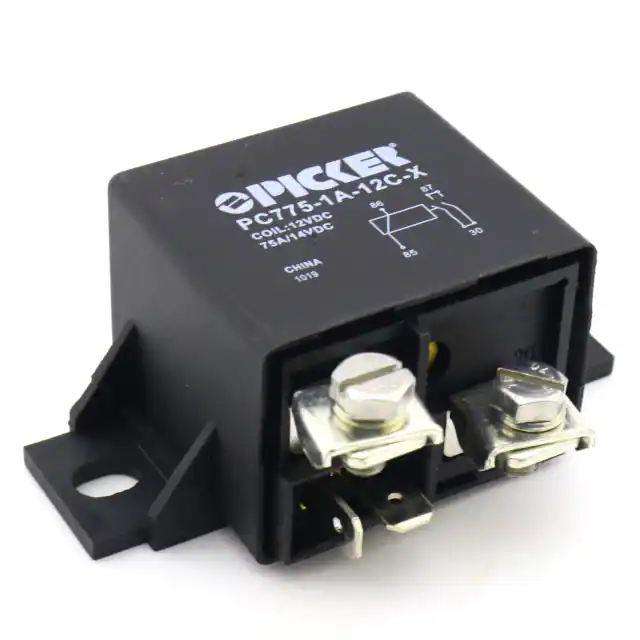

PC775-1A-12C-XRELAY AUTOMOTIVE SPST 75A 12V Picker Components |
1,013 |
|
Таблицы данных |
PC775 | Bulk | Active | Non Latching | 240 mA | 12VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 7.8 VDC | 2.4 VDC | 7 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

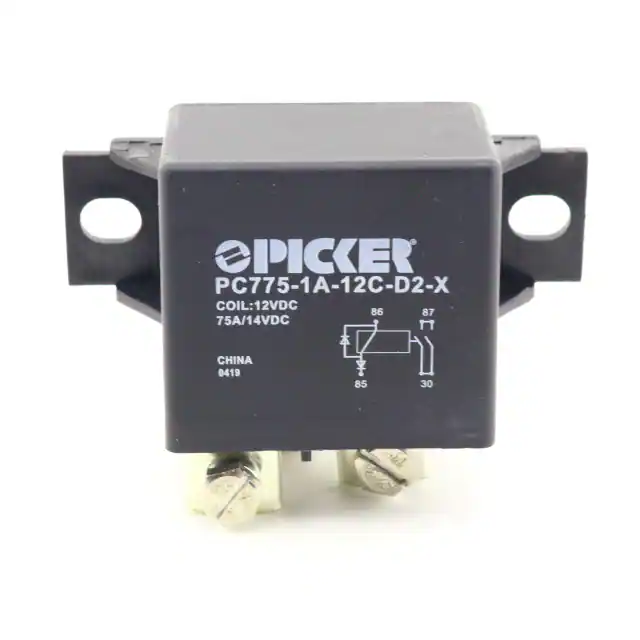

PC775-1A-12C-D2-XRELAY AUTOMOTIVE SPST 75A 12V Picker Components |
134 |
|
Таблицы данных |
PC775 | Bag | Active | Non Latching | 240 mA | 12VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 7.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

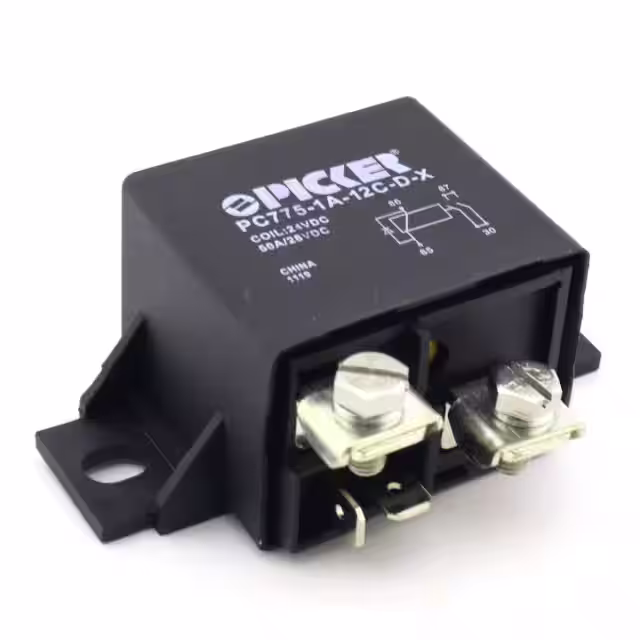

PC775-1A-12C-D-XRELAY AUTOMOTIVE SPST 75A 12V Picker Components |
166 |
|
Таблицы данных |
PC775 | Bulk | Active | Non Latching | 240 mA | 12VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 7.8 VDC | 2.4 VDC | 7 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

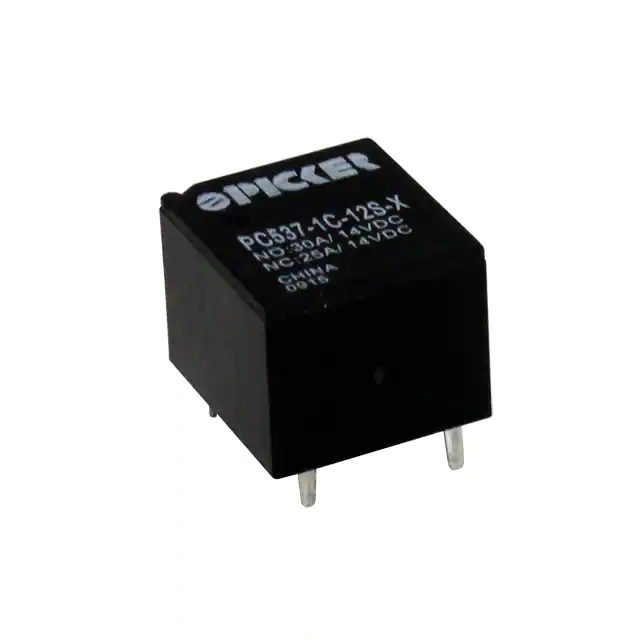

PC537-1C-12S-XRELAY AUTOMOTIVE SPDT 30A 12V Picker Components |
1,393 |
|
Таблицы данных |
- | Tube | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | - | 28VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
PC792A-1C-C-12C-N-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
670 |
|
Таблицы данных |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

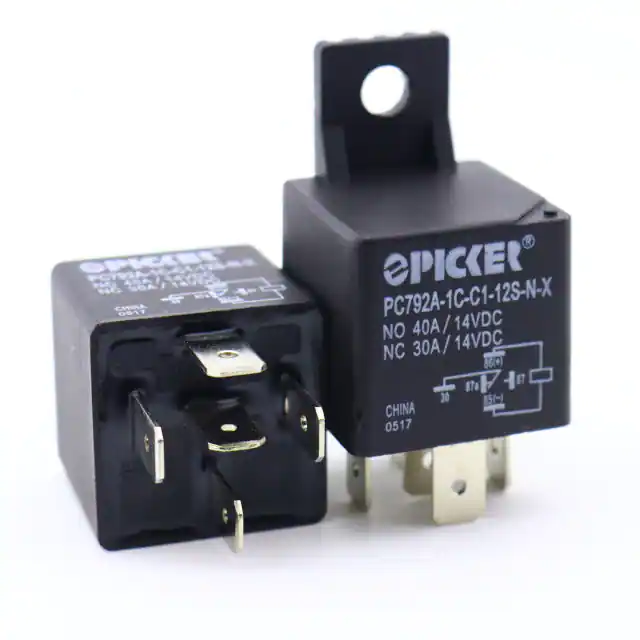

PC792A-1C-C1-12S-N-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
1,633 |
|
Таблицы данных |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
