Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

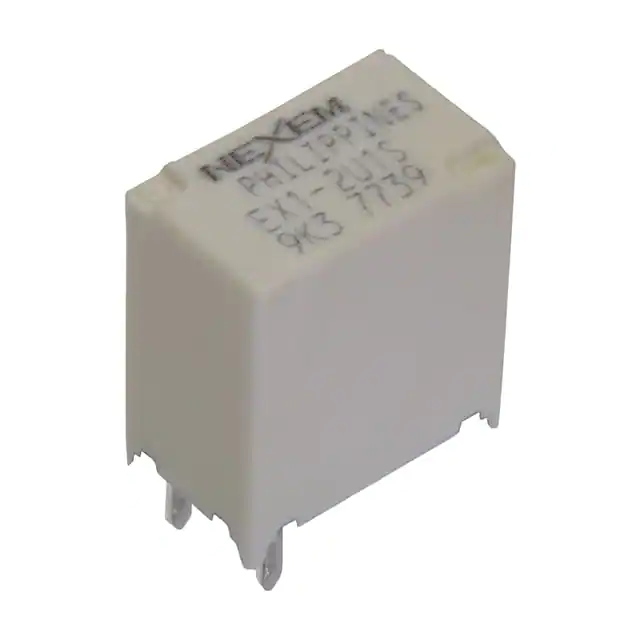

EX1-2U1SAUTO RELAY 1 FORM C 12V KEMET |
4,312 |
|
Таблицы данных |
EX1 | Tube | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 2.5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

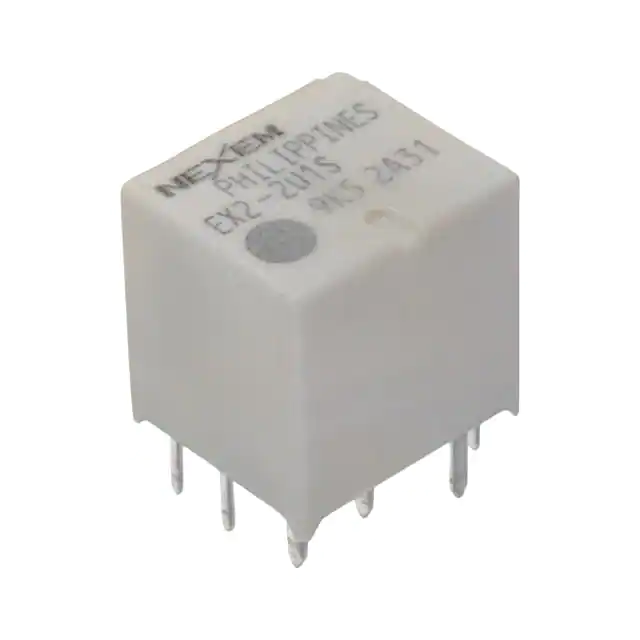

EX2-2U1SAUTO RELAY 2 FORM C 12V KEMET |
1,029 |
|
Таблицы данных |
EX2 | Tube | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 2.5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

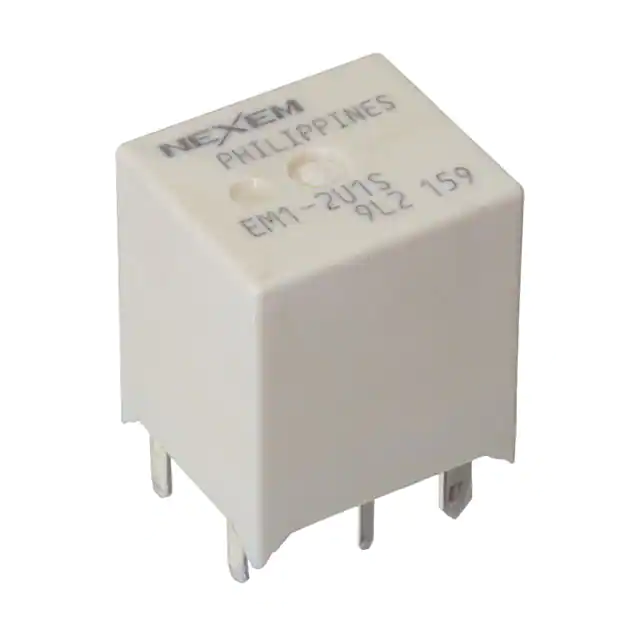

EM1-2U1SAUTO RELAY 1 FORM U 12V 1A KEMET |
2,271 |
|
Таблицы данных |
EM1 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (DM) (1 Form U) | 54 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 6 ms | 1 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
ET1-B3M1SAUTOMOTIVE RELAYS 1 FORM C SEALE KEMET |
2,686 |
|
Таблицы данных |
ET1 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 2.5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
EP1-3N1SAUTO RELAY SINGLE FORM C 12V KEMET |
936 |
|
Таблицы данных |
EP1 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
EP2-3N1SAUTOMOTIVE RELAYS 1 FORM CX2 12 KEMET |
486 |
|
Таблицы данных |
EP2 | Tube | Active | Non Latching | 53.5 mA | 12VDC | SPDT (1 Form C) x 2 | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
EP2-3N1STAUTOMOTIVE RELAYS 1 FORM CX2 SEP KEMET |
661 |
|
Таблицы данных |
EP2 | Tube | Active | Non Latching | 53.5 mA | 12VDC | SPDT (1 Form C) x 2 | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
ET2-B3M1SAUTOMOTIVE RELAYS 1 FORM C X2 SE KEMET |
858 |
|
Таблицы данных |
ET2 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 2.5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
EP2F-B3N1STAUTOMOTIVE RELAYS HIGH TEMP/HIGH KEMET |
234 |
|
Таблицы данных |
EP2F | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
EP1-B3G1SAUTO RELAY 1 FORM C 12V KEMET |
1,499 |
|
Таблицы данных |
EP1 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
