Алюминий - полимерные конденсаторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Емкость | Допуск | Напряжение - Номинальное | ESR (эквивалентное последовательное сопротивление) | Срок службы при темп. | Рабочая температура | Номинальные значения | Применение | Особенности | Пульсация тока при низкой частоте | Пульсация тока при высокой частоте | Импеданс | Расстояние между выводами | Размер/измерение | Высота - в сидячем положении (макс.) | Размер площадки для поверхностного монтажа | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Series-Cap-Anti-Vibration.jpg)
|
EEH-ZK1E680VCAP ALUM HYBRID 68UF 20% 25V SMD |
419 |
|
Таблицы данных |
ZK, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 25 V | 50mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 195 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEH-ZK1V181VCAP ALUMHYB 180UF 20% 35V SMD |
148 |
|
Таблицы данных |
ZK, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

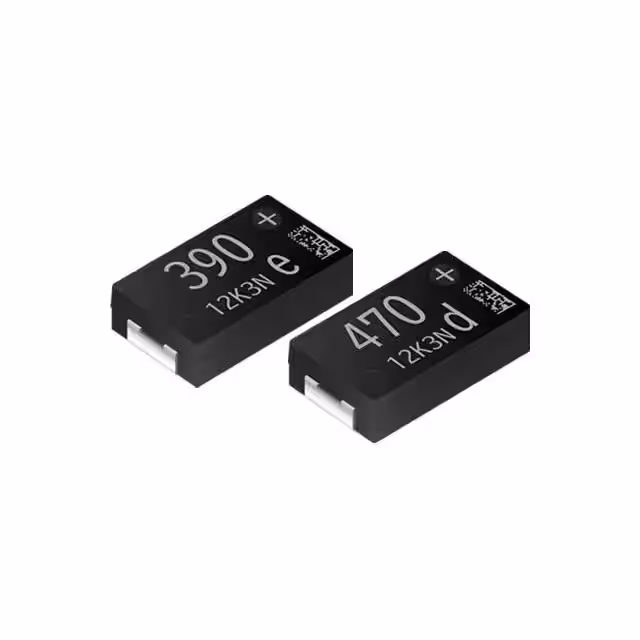

EEF-JX0E221RECAP ALUM POLY 220UF 20% 2.5V SMD |
5,633 |
|
Таблицы данных |
SP-Cap JX | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

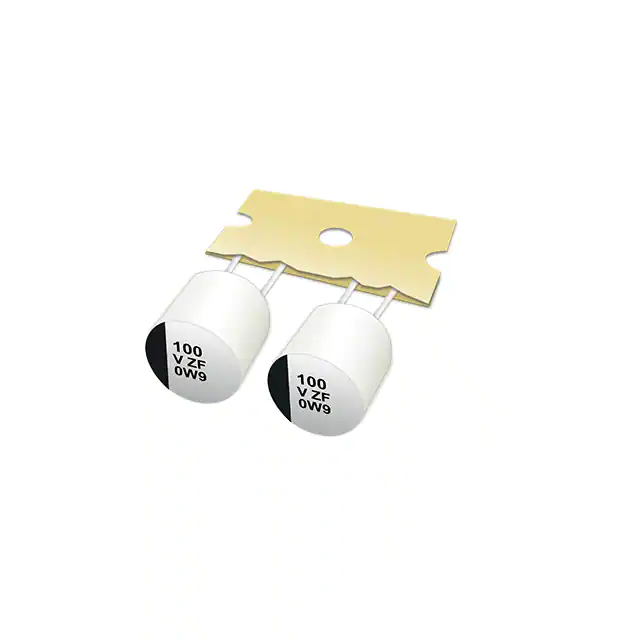

EEH-AZF1H101BCAP ALUM HYBRID 100UF 20% 50V TH |
1,629 |
|
Таблицы данных |
ZF | Cut Tape (CT) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 135 mA @ 100 Hz | 900 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
PCJ1C221MCL4GSCAP ALUM POLY 220UF 20% 16V SMD |
497 |
|
Таблицы данных |
PCJ | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.89 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXA6R3ARA471MJ80GCAP ALUM POLY 470UF 20% 6.3V SMD |
397 |
|
Таблицы данных |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 20mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.13 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HTK-35V391MHC5E-R2CAP ALUMHYB 390UF 20% 35V SMD |
2,745 |
|
Таблицы данных |
HTK | Tape & Reel (TR) | Active | Hybrid | 390 µF | ±20% | 35 V | 18mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 300 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
EEH-ZK1E820VCAP ALUM HYBRID 82UF 20% 25V SMD |
1,750 |
|
Таблицы данных |
ZK, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 25 V | 50mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 195 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
6SEPC1500M+TCAP ALUM POLY 1500UF 20% 6.3V TH |
1,139 |
|
Таблицы данных |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 6.3 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 278 mA @ 120 Hz | 5.56 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RNU1V151MDN1PHCAP ALUM POLY 150UF 20% 35V TH |
8,397 |
|
Таблицы данных |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 35 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 380 mA @ 120 Hz | 3.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
2SEPC560MCAP ALUM POLY 560UF 20% 2.5V TH |
205 |
|
Таблицы данных |
OS-CON™, SEPC | Bulk | Active | Polymer | 560 µF | ±20% | 2.5 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 195 mA @ 120 Hz | 3.9 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
875046219003CAP ALUM POLY 560UF 20% 2V SMD |
6,532 |
|
Таблицы данных |
WCAP-PHSE | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
50PFV33M6.3X8CAP ALUM HYBRID 33UF 20% 50V SMD |
3,430 |
|
Таблицы данных |
PFV | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 550 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCV1V270MCL1GSCAP ALUM POLY 27UF 20% 35V SMD |
3,327 |
|
Таблицы данных |
PCV | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 35 V | 55mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
50SEK68MCAP ALUM POLY 68UF 20% 50V TH |
356 |
|
Таблицы данных |
OS-CON™, SEK | Bulk | Active | Polymer | 68 µF | ±20% | 50 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 60 mA @ 120 Hz | 1.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
A720V477M002APE4R5CAP ALUM POLY 470UF 20% 2V SMD |
10,579 |
|
Таблицы данных |
AO-Cap A720 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 9.54 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
35PZH330M10X11CAP ALUM HYBRID 330UF 20% 35V TH |
5,096 |
|
Таблицы данных |
PZH | Bulk | Active | Hybrid | 330 µF | ±20% | 35 V | 14mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 205 mA @ 100 Hz | 4.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole |
|
RNE1C102MDNASQPHCAP ALUM POLY 1000UF 20% 16V TH |
692 |
|
Таблицы данных |
FPCAP, RNE | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
EEH-ZF1J560PCAP ALUM HYBRID 56UF 20% 63V SMD |
4,450 |
|
Таблицы данных |
ZF | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 126 mA @ 100 Hz | 840 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
25SEP33MCAP ALUM POLY 33UF 20% 25V TH |
3,943 |
|
Таблицы данных |
OS-CON™, SEP | Bulk | Active | Polymer | 33 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 149 mA @ 120 Hz | 2.98 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
