Алюминий - полимерные конденсаторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Емкость | Допуск | Напряжение - Номинальное | ESR (эквивалентное последовательное сопротивление) | Срок службы при темп. | Рабочая температура | Номинальные значения | Применение | Особенности | Пульсация тока при низкой частоте | Пульсация тока при высокой частоте | Импеданс | Расстояние между выводами | Размер/измерение | Высота - в сидячем положении (макс.) | Размер площадки для поверхностного монтажа | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

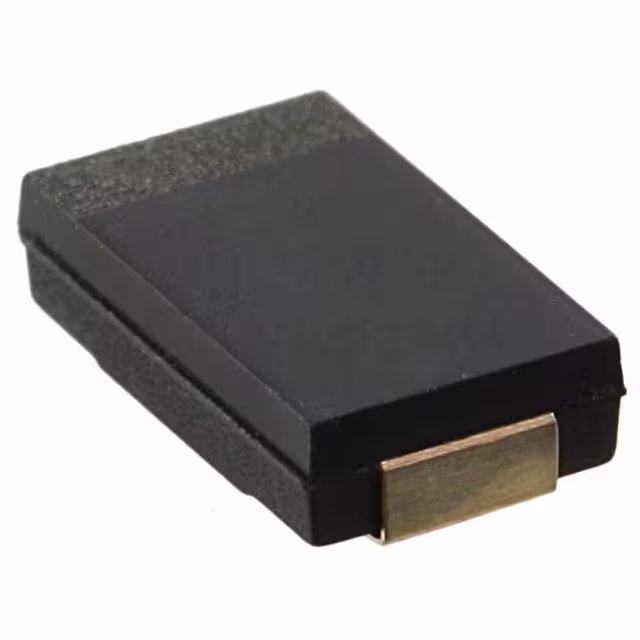

RUA1E150MLGCAP ALUM POLY 15UF 20% 25V SMD |
0 |
|
Таблицы данных |
FPCAP, UA | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 25 V | 70mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount |
|
APSE2R5ELL681MH06SCAP ALUM POLY 680UF 20% 2.5V TH |
0 |
|
Таблицы данных |
NPCAP™-PSE | Bulk | Obsolete | Polymer | 680 µF | ±20% | 2.5 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.295" (7.50mm) | - | Through Hole |
|
4PS820MJ12-T14CAP ALUM POLY 820UF 20% 4V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Tape & Box (TB) | Obsolete | Polymer | 820 µF | ±20% | 4 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
6PS680MJ12-T14CAP ALUM POLY 680UF 20% 6.3V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Tape & Box (TB) | Obsolete | Polymer | 680 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
APS-100ETD271MHB5SCAP ALUM POLY 270UF 20% 10V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.42 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
APS-160ELL271MJA5SCAP ALUM POLY 270UF 20% 16V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.53 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
APS-160ELL271MJC5SCAP ALUM POLY 270UF 20% 16V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.05 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
APS-160ETD271MJA5SCAP ALUM POLY 270UF 20% 16V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.53 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
APS-200ETD101MHB5SCAP ALUM POLY 100UF 20% 20V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 20 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.32 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
APS-200ETD151MJC5SCAP ALUM POLY 150UF 20% 20V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.32 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
APS-250ETD101MJC5SCAP ALUM POLY 100UF 20% 25V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.32 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
APS-250ETD680MHB5SCAP ALUM POLY 68UF 20% 25V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 25 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.32 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
APS-2R5ETD152MJC5SCAP ALUM POLY 1500UF 20% 2.5V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
APS-6R3ELL102MJC5SCAP ALUM POLY 1000UF 20% 6.3V TH |
0 |
|
Таблицы данных |
NPCAP™-PS | Bulk | Active | Polymer | 1000 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APSA100ETD470MFA5SCAP ALUM POLY 47UF 20% 10V TH |
0 |
|
Таблицы данных |
NPCAP™-PSA | Tape & Reel (TR) | Discontinued at Digi-Key | Polymer | 47 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.425" (10.80mm) | - | Through Hole |
|
|
APSA100ETD471MJB5SCAP ALUM POLY 470UF 20% 10V TH |
0 |
|
Таблицы данных |
NPCAP™-PSA | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 10 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.65 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
APSA160ELL101MFA5SCAP ALUM POLY 100UF 20% 16V TH |
0 |
|
Таблицы данных |
NPCAP™-PSA | Bulk | Discontinued at Digi-Key | Polymer | 100 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.425" (10.80mm) | - | Through Hole |
|
|
APSA6R3ETD391MHB5SCAP ALUM POLY 390UF 20% 6.3V TH |
0 |
|
Таблицы данных |
NPCAP™-PSA | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.08 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

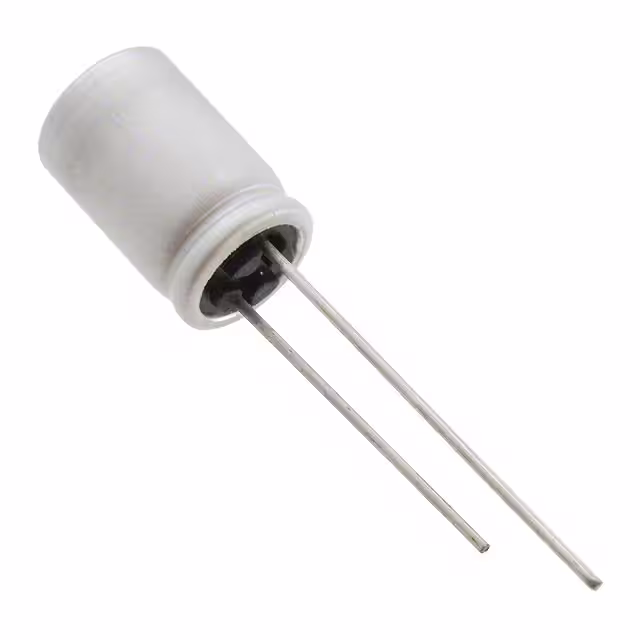

6SEPC470MECAP ALUM POLY 470UF 20% 6.3V TH |
0 |
|
Таблицы данных |
OS-CON™, SEPC | Bulk | Obsolete | Polymer | 470 µF | ±20% | 6.3 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 148.5 mA @ 120 Hz | 2.97 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.276" (7.00mm) | - | Through Hole |
|
|
6SEPC470ME+TSSCAP ALUM POLY 470UF 20% 6.3V TH |
0 |
|
Таблицы данных |
OS-CON™, SEPC | Tape & Box (TB) | Obsolete | Polymer | 470 µF | ±20% | 6.3 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 148.5 mA @ 120 Hz | 2.97 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.276" (7.00mm) | - | Through Hole |
