Преобразователи переменного и постоянного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMPW 10-115-JAC/DC CONVERTER 15V 10W Traco Power |
0 |
|
Таблицы данных |
TMPW 10-J (10W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 100 ~ 250 VDC | 15V | - | - | - | - | - | 667 mA | - | - | - | - | - | 10W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | - | Chassis Mount | 2.17" L x 1.70" W x 0.91" H (55.1mm x 43.2mm x 23.1mm) |
|
TPP 15-148A-JAC/DC CONVERTER 48V 15W Traco Power |
3 |
|
Таблицы данных |
TPP 15A-J (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 313 mA | - | - | - | - | - | 15W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.61" L x 1.00" W x 0.64" H (66.3mm x 25.4mm x 16.3mm) |
|

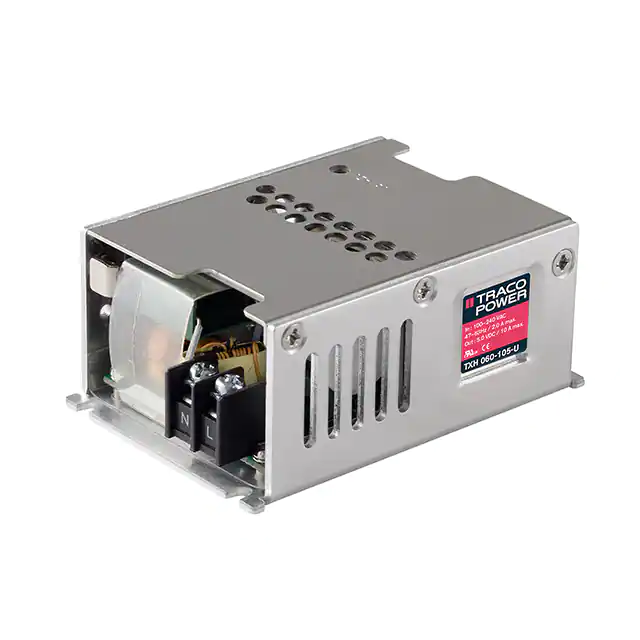

TXH 060-105AC/DC CONVERTER 5V 50W Traco Power |
0 |
|
Таблицы данных |
TXH 060 (50-60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 4.242 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 1.99" W x 1.50" H (76.3mm x 50.6mm x 38.0mm) |
|
|
TXH 060-148AC/DC CONVERTER 48V 60W Traco Power |
0 |
|
Таблицы данных |
TXH 060 (50-60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | ITE (Commercial) | 4.242 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 1.99" W x 1.50" H (76.3mm x 50.6mm x 38.0mm) |
|
TXN 50-14850W COST EFFICIENT, METAL ENCASE Traco Power |
0 |
|
Таблицы данных |
TXN50 (50W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 140 ~ 340 VDC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -30°C ~ 70°C | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
TXN 50-10333W COST EFFICIENT, METAL ENCASE Traco Power |
0 |
|
Таблицы данных |
TXN50 (50W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 140 ~ 340 VDC | 3.3V | - | - | - | - | - | 10 A | - | - | - | - | - | 33W | ITE (Commercial) | 3 kV | -30°C ~ 70°C | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
TMPW 5-103-T5 WATT AC/DC ENCAPSULATED CHASSI Traco Power |
4 |
|
Таблицы данных |
TMPW 5-T (5W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 1.515 A | - | - | - | - | - | 5W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C | - | Chassis Mount | 2.17" L x 1.70" W x 0.91" H (55.1mm x 43.2mm x 23.1mm) |
|
|
TXN 35-10335W COST EFFICIENT, METAL ENCASE Traco Power |
0 |
|
Таблицы данных |
TXN35 (35W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 140 ~ 340 VDC | 3.3V | - | - | - | - | - | 7 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | -30°C ~ 70°C | Adjustable Output, DC Input Capable, IP20, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
TXM 025-115AC/DC CONVERTER 15V 24W Traco Power |
5 |
|
Таблицы данных |
TXM 025 (25W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 24W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.11" L x 2.01" W x 1.13" H (79.0mm x 51.0mm x 28.8mm) |
|
|
TMPW 25-115-T25 WATT AC/DC ENCAPSULATED CHASS Traco Power |
4 |
|
Таблицы данных |
TMPW 25-T (25W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1.666 A | - | - | - | - | - | 25W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C | - | Chassis Mount | 3.48" L x 1.50" W x 0.95" H (88.4mm x 38.1mm x 24.1mm) |
