Преобразователи переменного и постоянного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

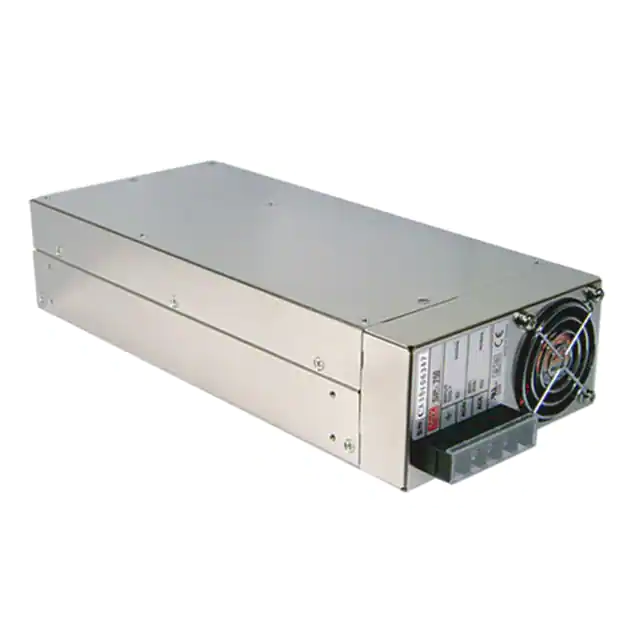

SP-750-27AC/DC CONVERTER 27V 751W MEAN WELL USA Inc. |
0 |
|
Таблицы данных |
SP-750 (750W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 27V | - | - | - | - | - | 27.8 A | - | - | - | - | - | 751W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 10.94" L x 5.00" W x 2.50" H (278.0mm x 127.0mm x 63.5mm) |
|
|
SP-750-48AC/DC CONVERTER 48V 754W MEAN WELL USA Inc. |
0 |
|
Таблицы данных |
SP-750 (750W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 15.7 A | - | - | - | - | - | 754W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 10.94" L x 5.00" W x 2.50" H (278.0mm x 127.0mm x 63.5mm) |
|
|
SP-750-5AC/DC CONVERTER 5V 600W MEAN WELL USA Inc. |
0 |
|
Таблицы данных |
SP-750 (750W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 120 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 10.94" L x 5.00" W x 2.50" H (278.0mm x 127.0mm x 63.5mm) |
|

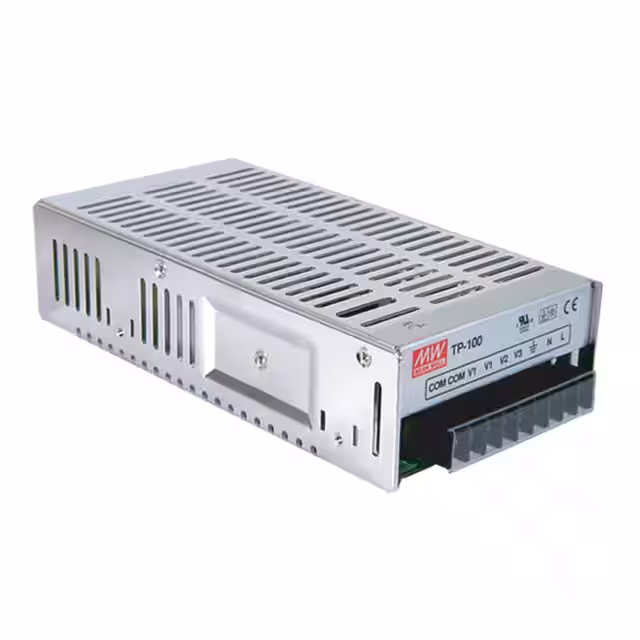

TP-100AAC/DC CONVERTER 5V 12V -5V 101W MEAN WELL USA Inc. |
0 |
|
Таблицы данных |
TP-100 (100W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | -5V | - | - | - | 10 A | 4 A | 600 mA | - | - | - | 101W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|
|
TP-100BAC/DC CONVERTER 5V +/-12V 105W MEAN WELL USA Inc. |
0 |
|
Таблицы данных |
TP-100 (100W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | -12V | - | - | - | 10 A | 4 A | 600 mA | - | - | - | 105W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|
|
TP-100CAC/DC CONVERTER 5V +/-15V 104W MEAN WELL USA Inc. |
0 |
|
Таблицы данных |
TP-100 (100W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 15V | -15V | - | - | - | 10 A | 3 A | 600 mA | - | - | - | 104W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|
|
TP-100DAC/DC CONVERTER 5V 24V 12V 105W MEAN WELL USA Inc. |
0 |
|
Таблицы данных |
TP-100 (100W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 24V | 12V | - | - | - | 10 A | 2 A | 600 mA | - | - | - | 105W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|

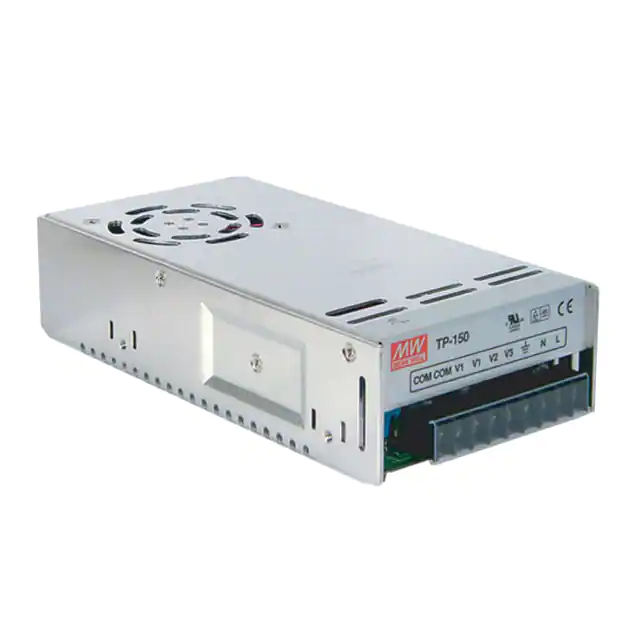

TP-150AAC/DC CONVERTER 5V 12V -5V 150W MEAN WELL USA Inc. |
0 |
|
Таблицы данных |
TP-150 (150W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | -5V | - | - | - | 15 A | 6 A | 600 mA | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|
|
TP-150BAC/DC CONVERTER 5V +/-12V 148W MEAN WELL USA Inc. |
0 |
|
Таблицы данных |
TP-150 (150W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | -12V | - | - | - | 15 A | 5.5 A | 600 mA | - | - | - | 148W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|
|
TP-150CAC/DC CONVERTER 5V +/-15V 152W MEAN WELL USA Inc. |
0 |
|
Таблицы данных |
TP-150 (150W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 15V | -15V | - | - | - | 15 A | 4.5 A | 600 mA | - | - | - | 152W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
