Адаптеры переменного тока для настенных розеток
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Применение | Эффективность | Рабочая температура | Выходной разъем | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
212AS16010AC/AC WALL MNT ADPT 16VAC 100MA Tamura |
0 |
|
Таблицы данных |
212AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 16VAC | 100mA | 2 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.40" L x 1.58" W x 2.50" H (35.5mm x 40.0mm x 63.5mm) | cULus | - |
|
318AS16030AC/AC WALL MNT ADPT 16VAC 300MA Tamura |
0 |
|
Таблицы данных |
318AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 16VAC | 300mA | 5 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.69" L x 1.81" W x 2.76" H (43.0mm x 46.0mm x 70.0mm) | cULus | - |
|

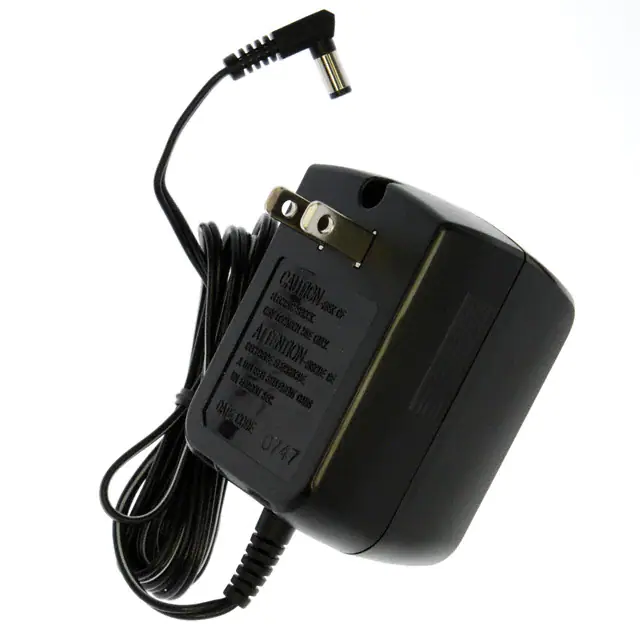

420AS16056AC/AC WALL MNT ADPT 16VAC 560MA Tamura |
0 |
|
Таблицы данных |
420AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 16VAC | 560mA | 9 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.83" L x 2.05" W x 2.84" H (46.5mm x 52.0mm x 72.0mm) | cULus | - |
|
|
835AS16112AC/AC WALL MT ADPT 16VAC 1.125A Tamura |
0 |
|
Таблицы данных |
835AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 16VAC | 1.125A | 18 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 2.44" L x 2.44" W x 4.06" H (62.0mm x 62.0mm x 103.0mm) | cULus | - |
|

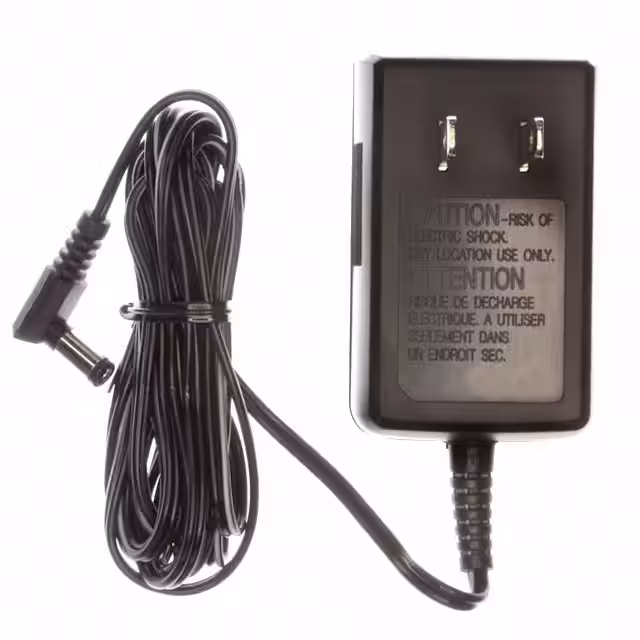

212AS20007AC/AC WALL MNT ADPT 20VAC 75MA Tamura |
0 |
|
Таблицы данных |
212AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 20VAC | 75mA | 2 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.40" L x 1.58" W x 2.50" H (35.5mm x 40.0mm x 63.5mm) | cULus | - |
|

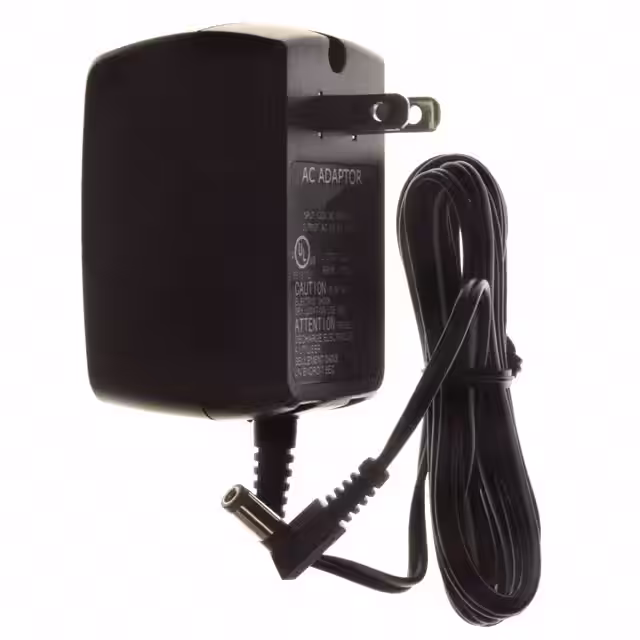

318AS20022AC/AC WALL MNT ADPT 20VAC 225MA Tamura |
0 |
|
Таблицы данных |
318AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 20VAC | 225mA | 5 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.69" L x 1.81" W x 2.76" H (43.0mm x 46.0mm x 70.0mm) | cULus | - |
|
|
420AS20045AC/AC WALL MNT ADPT 20VAC 450MA Tamura |
0 |
|
Таблицы данных |
420AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 20VAC | 450mA | 9 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.83" L x 2.05" W x 2.84" H (46.5mm x 52.0mm x 72.0mm) | cULus | - |
|
|
212AS24006AC/AC WALL MNT ADPT 24VAC 60MA Tamura |
0 |
|
Таблицы данных |
212AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 24VAC | 60mA | 1 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.40" L x 1.58" W x 2.50" H (35.5mm x 40.0mm x 63.5mm) | cULus | - |
|
|

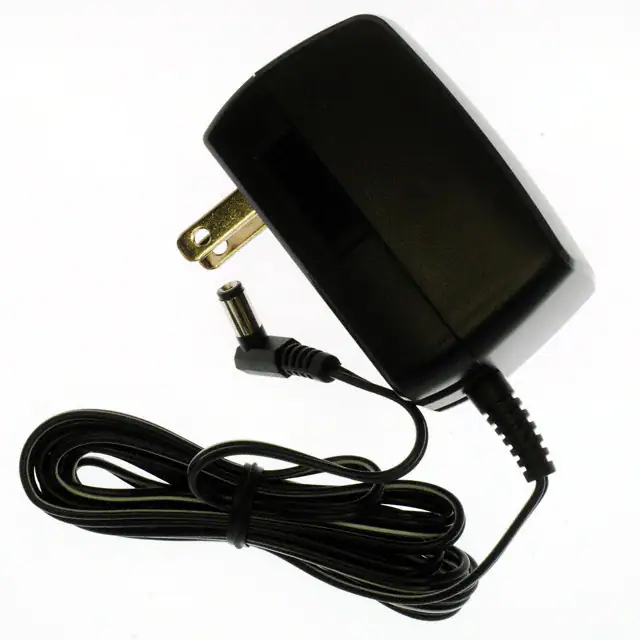

318AS24020AC/AC WALL MNT ADPT 24VAC 200MA Tamura |
0 |
|
Таблицы данных |
318AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 24VAC | 200mA | 5 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.69" L x 1.81" W x 2.76" H (43.0mm x 46.0mm x 70.0mm) | cULus | - |
|

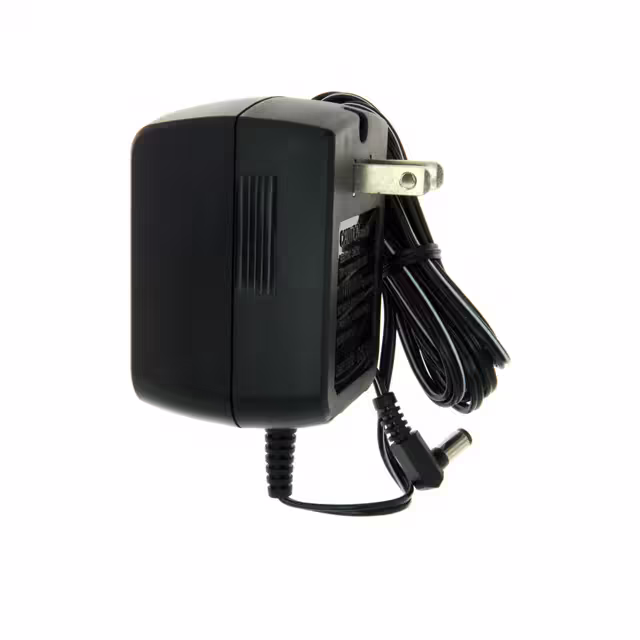

420AS24037AC/AC WALL MNT ADPT 24VAC 375MA Tamura |
0 |
|
Таблицы данных |
420AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 24VAC | 375mA | 9 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.83" L x 2.05" W x 2.84" H (46.5mm x 52.0mm x 72.0mm) | cULus | - |
